| Model No | E35-721AC |
| Protection Class | IP5X |

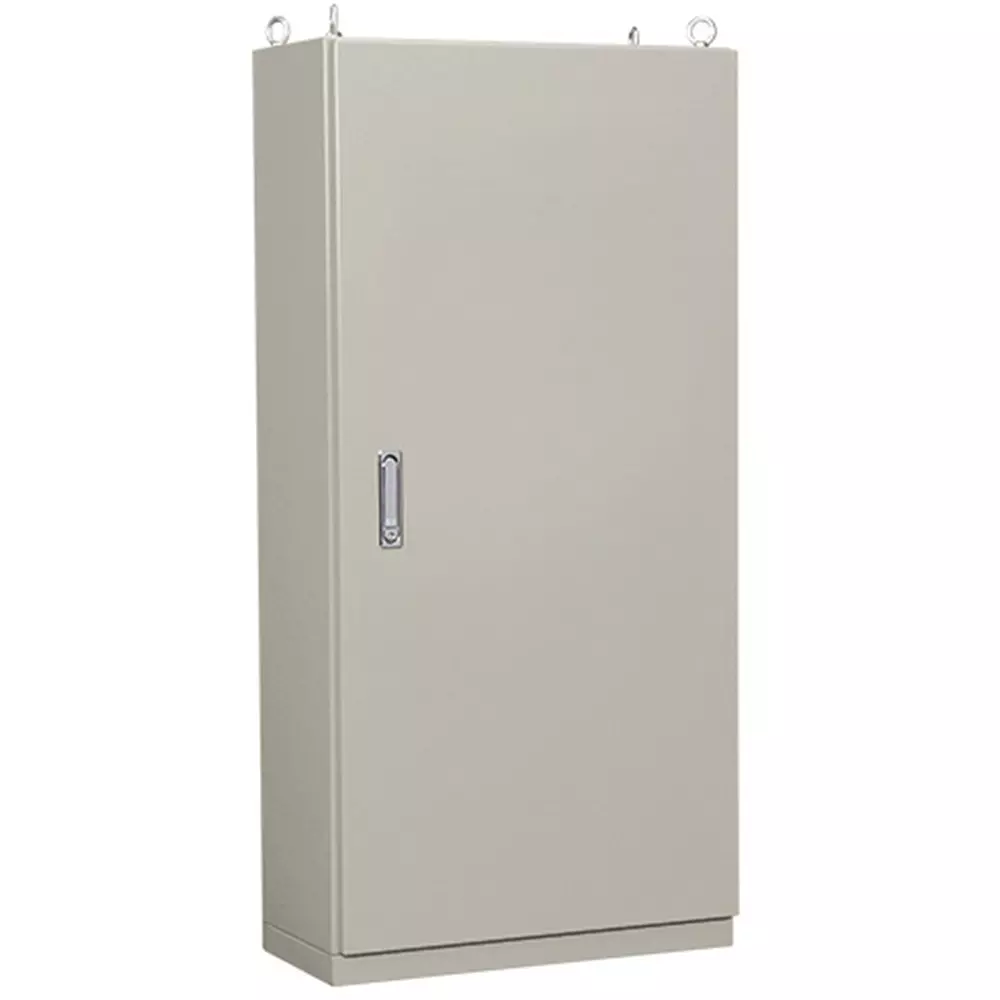

| Type of Product | EA Self-Supporting Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
E35-721AC |
Protection Class |
IP5X |
Type of Product |
EA Self-Supporting Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44635631 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
133 |
Handle |
Waterproof flat handle (large) H-87 Vertical 1400 mm or more |
Dimension L (mm) |
157.5 |
Dimension d |
81 mm |
Dimension W |
116 mm |
Dimension I (mm) |
1940 |
Dimension H (Φmm) |
540 |
Dimension M |
520 mm |
Dimension O |
170 mm |
Dimension P |
604 mm |
No. of Bolts |
4 |
Bolt Diameter |
M12 |
Dimension Z (mm) |
210 |
Dimension Y (mm) |
470 |
Dimension E (Φmm) |
1044 |
Dimension J (mm) |
692 |
Dimension B2 |
1580 mm |
Dimension n (mm) |
245 |
