| Model No | E50-1616A-N |
| Protection Class | IP4X |

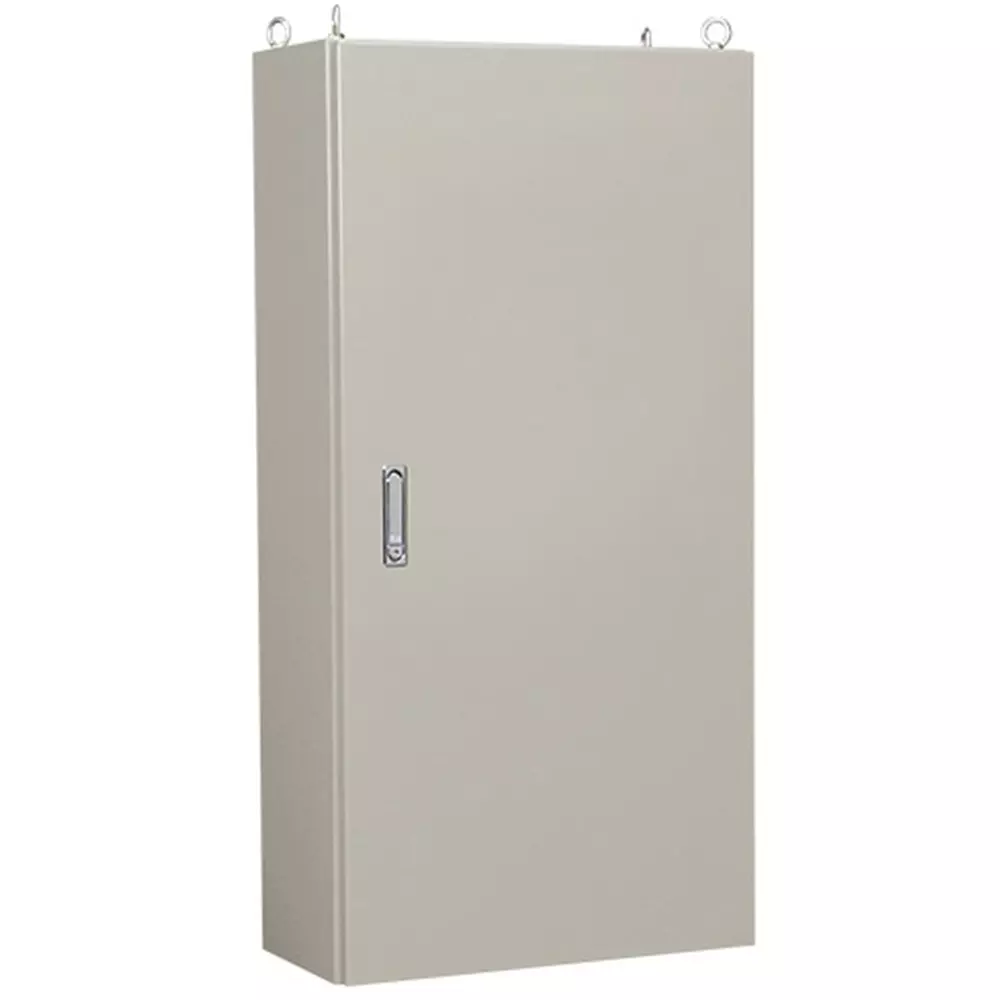

| Type of Product | EAN Freestanding Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
E50-1616A-N |
Protection Class |
IP4X |
Type of Product |
EAN Freestanding Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Door Type |
Double door |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44641563 |
Import Country |
Direct Import from Japan |
Paint Color |
Light Beige (5Y7 / 1) |
Mass (Kg) |
227 |
Handle |
Waterproof flat handle (large) H-87 |
Material (Circuit Board) |
2.3 mm iron |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
462 |
Thickness (mm) |
Door: 2.3 Body: 2.3 Bottom opening plate: 1.6 |
Dimension A1 |
1535 mm |
Installation Location |
For indoor use |
Dimension B1 (mm) |
1660 |
Board Dimensions (width W x height H) (mm) |
580x1480 |
Dimension I (mm) |
1440 |
Dimension H (Φmm) |
1240 |
Dimensions (W x H x D) |
1400x1600x400 mm |
