| Model No | SOR30-106-2 |
| Protection Class | IP44 |

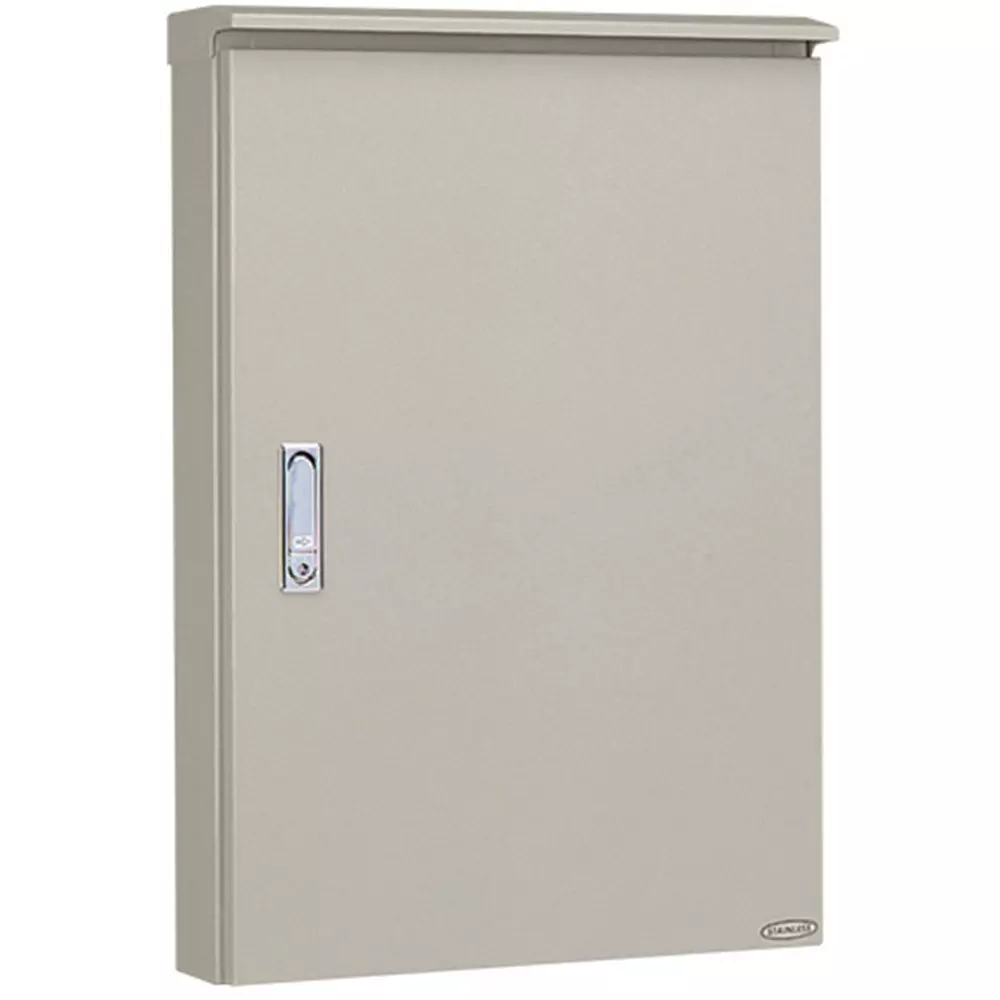

| Type of Product | SOR Outdoor Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
SOR30-106-2 |
Protection Class |
IP44 |
Type of Product |
SOR Outdoor Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Stainless steel (SUS304) |
Door Type |
Double door |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44661617 |
Import Country |
Direct Import from Japan |
Paint Color |
Light Beige (5Y7 / 1) |
Mass (Kg) |
39.9 |
Handle |
Stainless Steel Waterproof Flat Handle (H-85S) (Key No. N200) |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
276 |
Thickness (mm) |
Door, body: 1.5 |
Dimension A1 |
1005 mm |
Installation Location |
For outdoor use |
Dimension B1 (mm) |
630 |
Board Dimensions (width W x height H) (mm) |
920x520 |
Dimension I (mm) |
480 |
Dimension C1 (mm) |
322 |
Dimension H (Φmm) |
880 |
Mounting Board |
2.3mm iron |
Dimensions (W x H x D) |
1000x600x300 mm |
Dimension E (Φmm) |
297 |
