Ships within 25 days
View
View
View
View
| Model No | RA16-33C |
| Protection Class | IP54 |

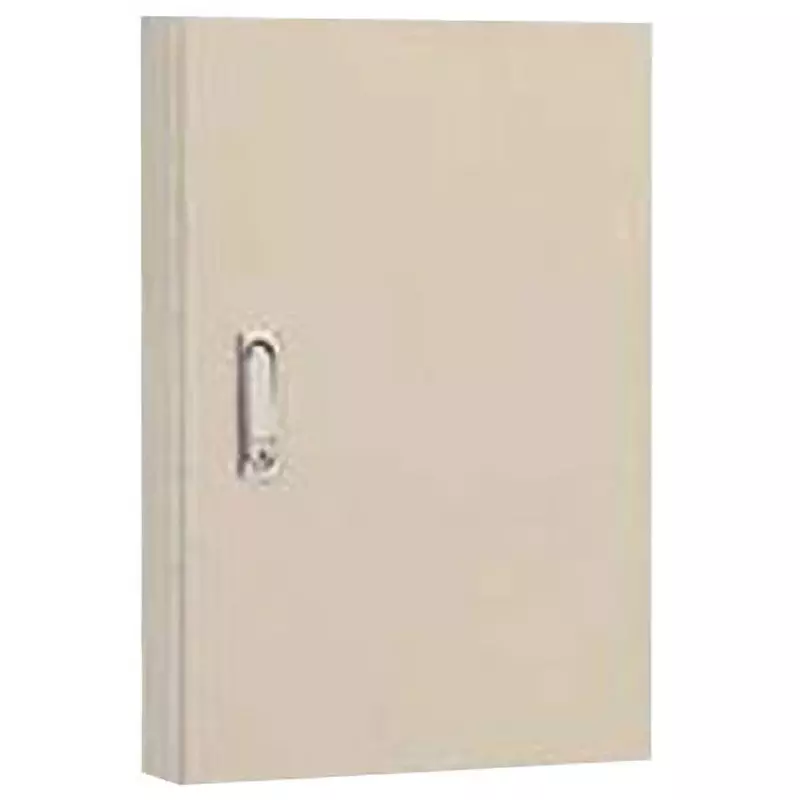

| Type of Product | RA/RAB Control Panel Cabinet |
| Standard | CA(CA100, CA-G04) |
Model No |
RA16-33C |
Protection Class |
IP54 |
Type of Product |
RA/RAB Control Panel Cabinet |
Standard |
CA(CA100, CA-G04) |
Country of Origin |
Japan |
Material |
Iron |
Door Type |
One door |
Specifications |
Laser Drilling |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44619303 |
Import Country |
Direct Import from Japan |
Depth (mm) |
142 |
Paint Color |
Cream paint, cream color (2.5Y9/1) Nippon Paint L22-90B |
Mass (Kg) |
6.2 |
Handle |
Waterproof flat handle (H-85) (Key No. N200: 1 pc) |
Material (Circuit Board) |
2.3 mm iron |
RoHS Directive |
Correspondence |
Circuit Board Dimensions, Length x Width (mm) |
220x220 |
Thickness (mm) |
Door: 1.6, Body: 1.6 |
Door Opening / Closing Pattern |
One door |
Installation Location |
Indoor / outdoor use |
Board Dimensions (width W x height H) (mm) |
220x220 |
Performance |
Coating: Salt spray 1000h, acid and alkali resistance 120h |
Mounting Board |
Iron base plate 2.3 mm, cream painted (2.5Y8/2) |
Dimensions (W x H x D) |
300x300x160 mm |
Handle Position E (mm) |
147 |
