Ships within 25 days
View
View
View
View
| Model No | SORB12-35 |
| Protection Class | IP44 |

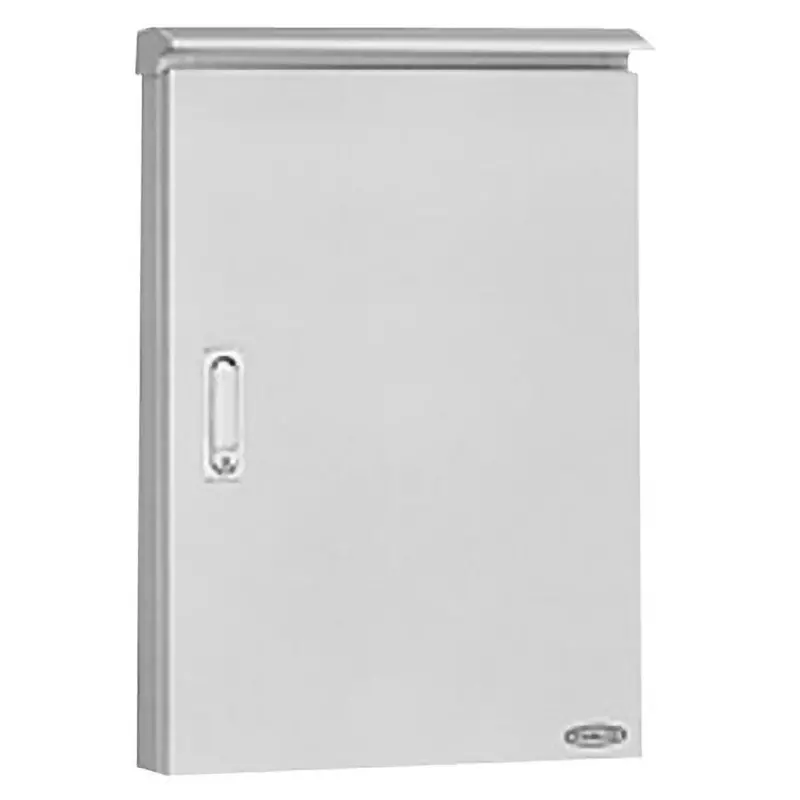

| Type of Product | SORB Outdoor Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
SORB12-35 |
Protection Class |
IP44 |
Type of Product |
SORB Outdoor Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Stainless steel (SUS304) |
Door Type |
One door |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44661687 |
Import Country |
Direct Import from Japan |
Paint Color |
Light beige (5Y7 / 1) |
Mass (Kg) |
8.8000000000000007 |
Handle |
Stainless Steel Waterproof Flat Handle (H-85S) (Key No. N200) |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
90 |
Thickness (mm) |
Door, body: 1.5 |

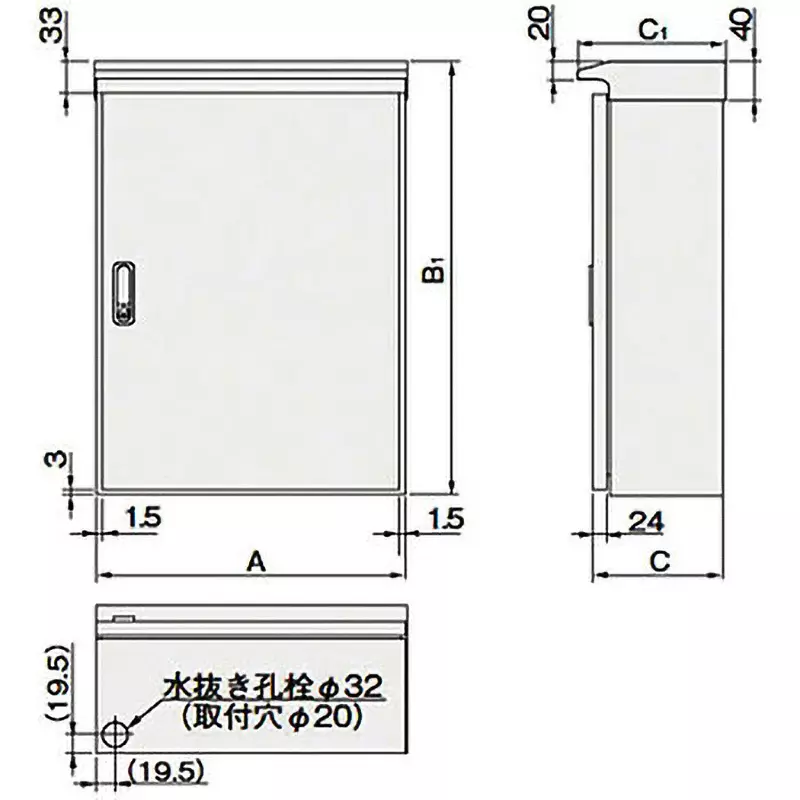

Dimension A1 |
305 mm |
Installation Location |
For outdoor use |
Dimension B1 (mm) |
530 |
Board Dimensions (width W x height H) (mm) |
220x420 |

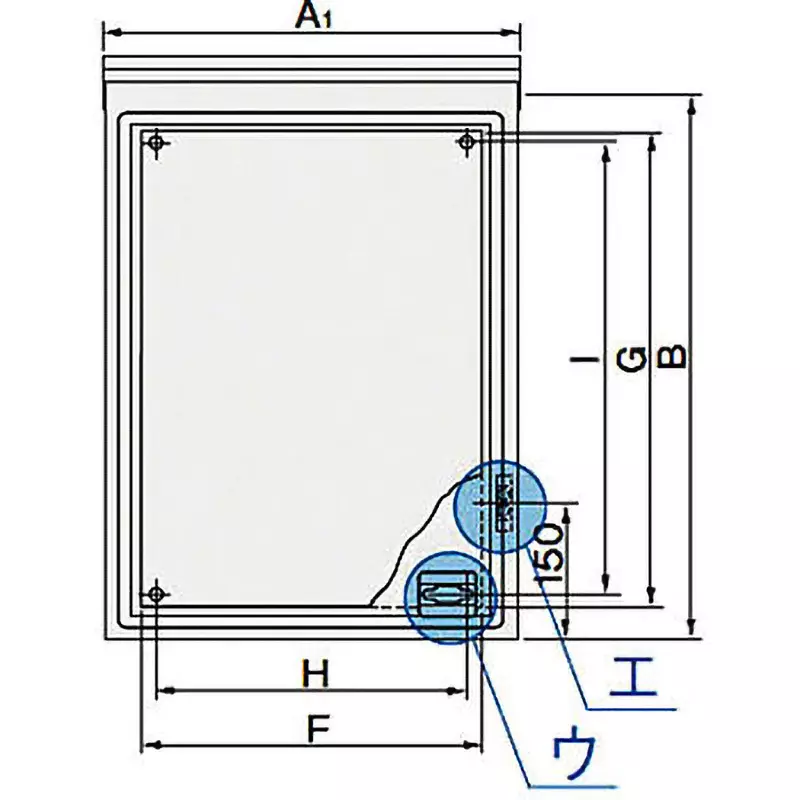

Dimension I (mm) |
380 |
Dimension C1 (mm) |
142 |
Dimension H (Φmm) |
180 |
Mounting Board |
Wooden 15 mm |
Dimensions (W x H x D) |
300x500x120 mm |

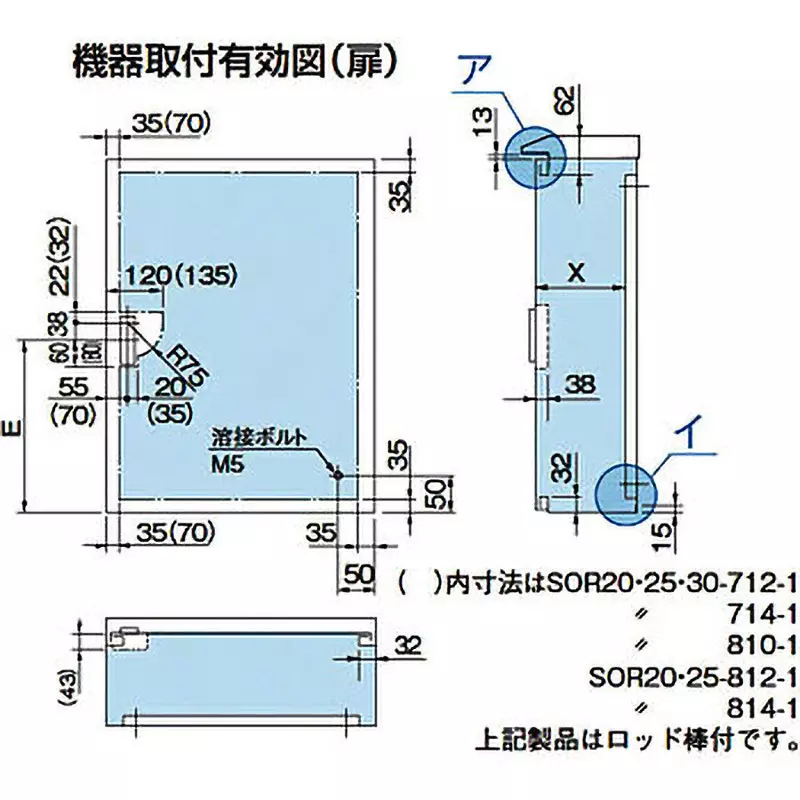

Dimension E (Φmm) |
247 mm |
