Ships within 25 days
View
View
View
View
| Model No | SF18-69 |
| Protection Class | IP2XD |

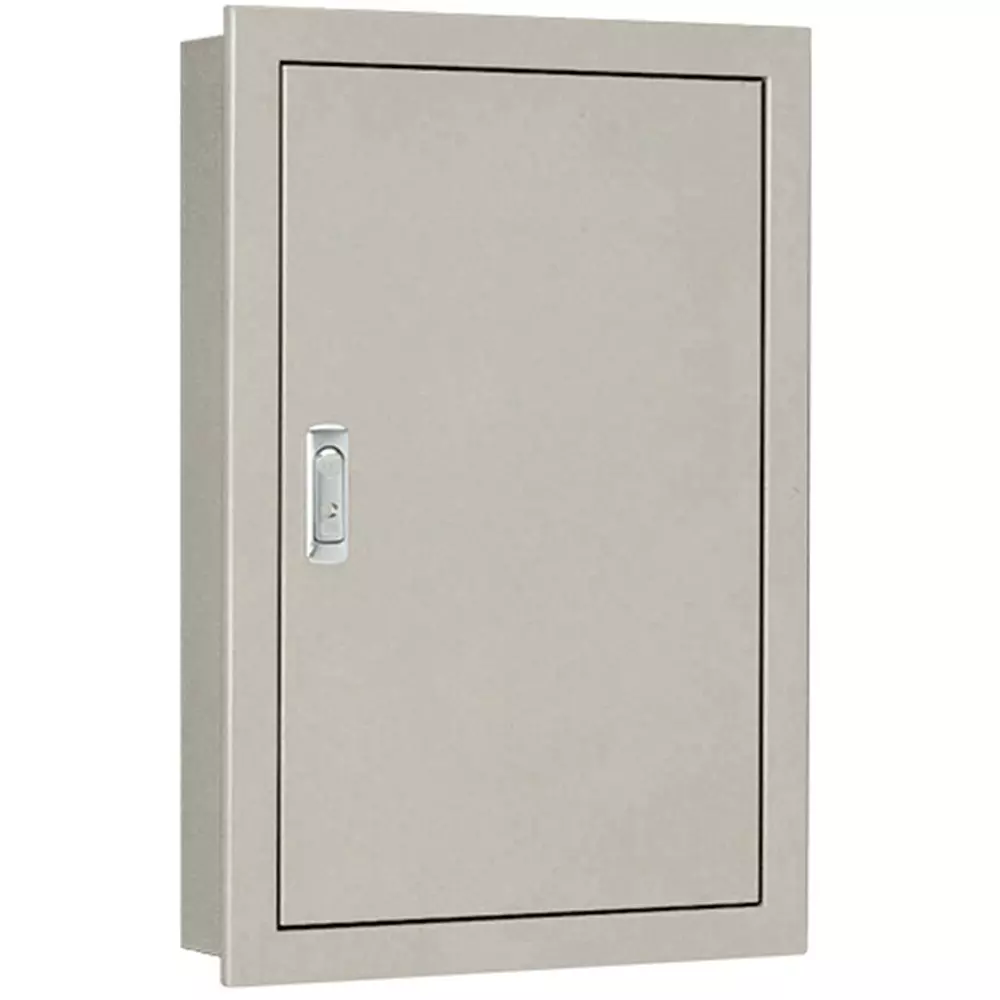

| Type of Product | SF Panel Cabinet Recessed Type |
| Country of Origin | Japan |
Model No |
SF18-69 |
Protection Class |
IP2XD |
Type of Product |
SF Panel Cabinet Recessed Type |
Country of Origin |
Japan |
Material |
Iron |
Specifications |
Embedded type |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Pack of |
1 Piece |
Monotaro ID |
44611463 |
Import Country |
Direct Import from Japan |
Paint Color |
Light beige (5Y7 / 1) |
Mass (Kg) |
33.4 |
Handle |
Flat handle (key No. N200) Small (H-11AN) Vertical dimension 900 mm or less Medium (H-12AN) Vertical dimension 1000 mm or more |
Material (Circuit Board) |
2.3mm iron |
RoHS Directive |
Correspondence |
Door Dimensions, Height x Width (mm) |
554×854 |
Door Opening / Closing Pattern |
One door |
Dimension A1 |
630 mm |
Installation Location |
For indoor use |
Dimension B1 (mm) |
930 |
Dimension O |
47 mm |
Dimension P |
49 mm |
Cabinet Thickness (mm) |
Door: 1.6 Body: 1.6 Front frame: 1.6 |
Dimensions I (mm) |
780 |
Board Dimensions (width F x height G) (mm) |
520×820 |
Dimensions M (mm) |
47 |
Dimensions H (mm) |
480 |
