| Model No | BJ30-823AC |
| Color | Body: Cream paint (2.5Y9/1) |

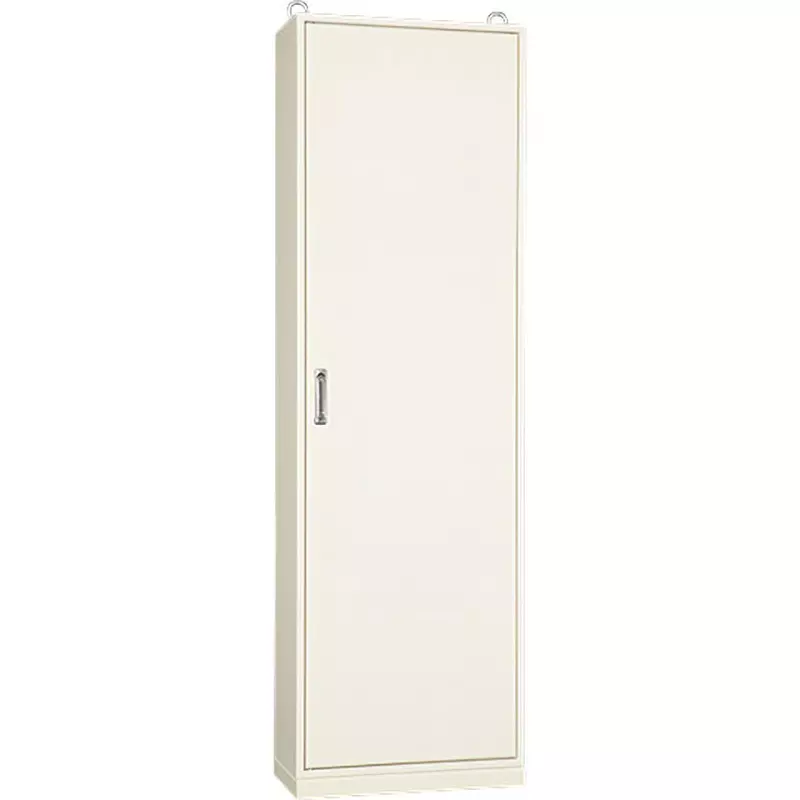

| Type of Product | Freestanding Cabinet for BJ Type Distribution Board |
| Standard | IP2XD (excluding rear mounting holes) |
Model No |
BJ30-823AC |
Color |
Body: Cream paint (2.5Y9/1) |
Type of Product |
Freestanding Cabinet for BJ Type Distribution Board |
Standard |
IP2XD (excluding rear mounting holes) |
Country of Origin |
Japan |
Material |
Body: Iron |
Door Type |
One door |
Specifications |
For indoor use |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
26201264 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
153.5 |
RoHS Directive |
Correspondence |
Effective Depth (mm) |
274 |
Applicable Board Dimensions (mm) |
(iron substrate) 2.3 (no grid scale) |
Thickness (mm) |
Door 2.3, Body 2.3, Base 3.2 or 4.5 Top/bottom opening plate 1.6 |
