Ships within 25 days
View
View
View
View
| Type | With roof |
| Model No | ORB20-77-2C |
| Protection Class | IP44 |

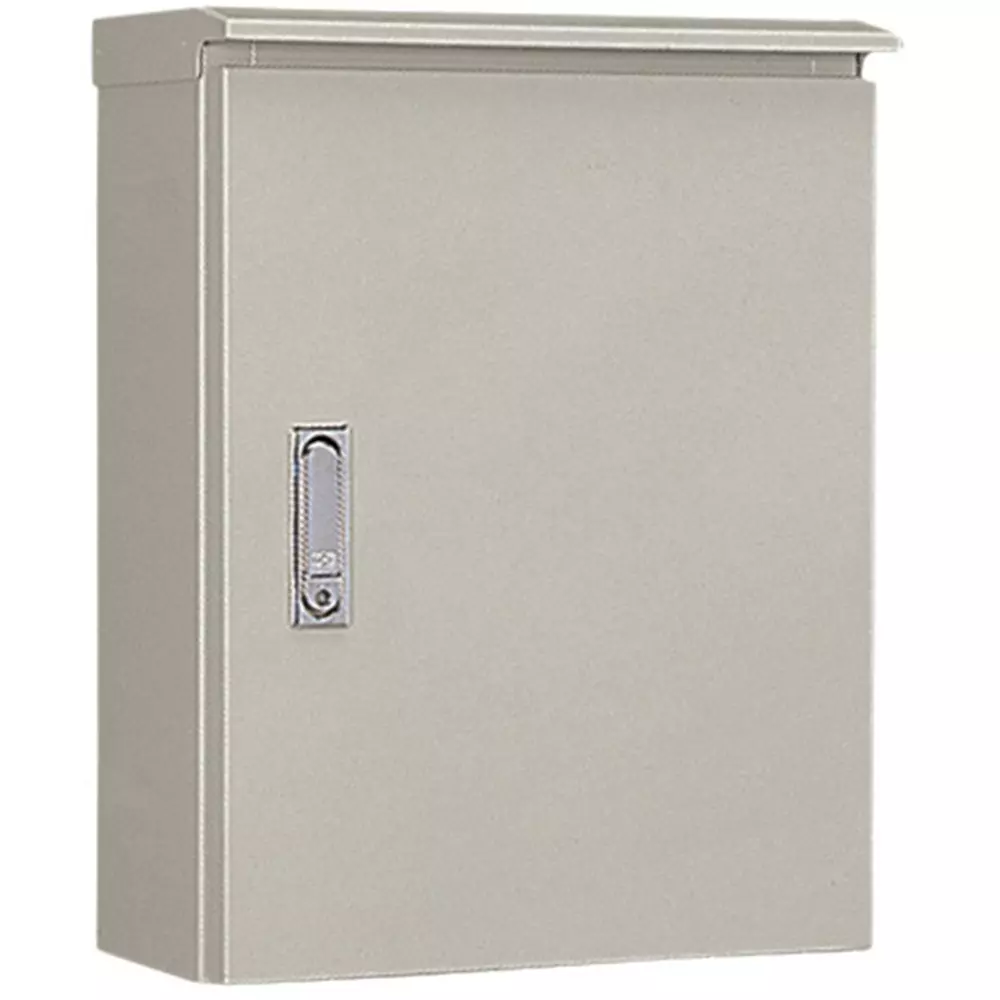

| Type of Product | OR/ORB Outdoor Control Panel Cabinet |
Type |
With roof |
Model No |
ORB20-77-2C |
Protection Class |
IP44 |
Type of Product |
OR/ORB Outdoor Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Specifications |
Drainage structure, dustproof, waterproof packing |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44616731 |
Import Country |
Direct Import from Japan |
Paint Color |
Cream Paint (2.5Y9/1) Cream color (Nippon Paint L22-90B) |
Mass (Kg) |
28.1 |
Handle |
Waterproof flat handle (H-85) (Key No. N200: 1 pc) |
Material (Circuit Board) |
Wooden 15 mm |
RoHS Directive |
Correspondence |
Circuit Board Dimensions, Length x Width (mm) |
620x620 |
Effective Depth (mm) |
169 |
Thickness (mm) |
Door: 1.6, Body: 1.6 |
Door Opening / Closing Pattern |
Double Door |
Dimension A1 |
705 mm |
Installation Location |
For outdoor use |
Dimension B1 (mm) |
730 |
Board Dimensions (width W x height H) (mm) |
620x620 |
Dimension I (mm) |
580 |
Dimension H |
580 mm |
Dimension C1 (mm) |
222 |
