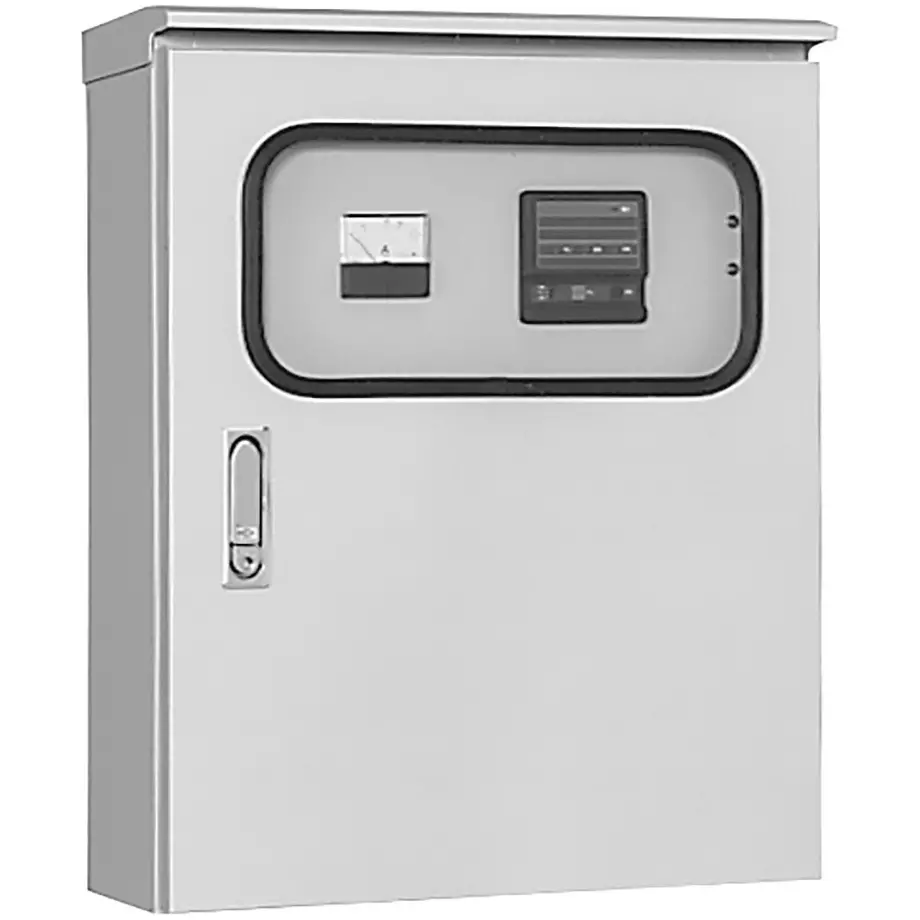

| Type | Water level display for water supply/elevated water tank, water level display for receiving tank and dry-run prevention (alarm non-voltage A contact output) |
| Model No | OG4-D-75EA |
| Protection Class | IP44 |
| Type of Product | Standard Control Panel |
Type |
Water level display for water supply/elevated water tank, water level display for receiving tank and dry-run prevention (alarm non-voltage A contact output) |
Model No |
OG4-D-75EA |
Protection Class |
IP44 |
Type of Product |
Standard Control Panel |
Voltage |
200 V (Three-Phase Three-Wire System) |
Country of Origin |
Japan |
Circuit Type |
ELB 3P 125A+(MCB 3P 125A+MS)x2 Thermal relays (24 to 36A) |
Specifications |
G4N, GL, RLx2, OLx4 |
Width (mm) |
600 |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Switch Type |
Circuit Breaker + Thermal Relay |
Monotaro ID |
12620897 |
Import Country |
Direct Import from Japan |
Depth (mm) |
200 |
Height (mm) |
1000 |
External dimensions (mm) |
1030 |
Color (Munsell value) |
Light beige paint (5Y7 / 1) |
Surface Treatment |
Powder Coating |
Motor Capacity (kW) |
7.5 |
Classification |
Pump control panel/automatic alternating simultaneous operation |
Applicable Place |
For outdoor use |
