| Model No | E25-1221A |
| Protection Class | IP4X |

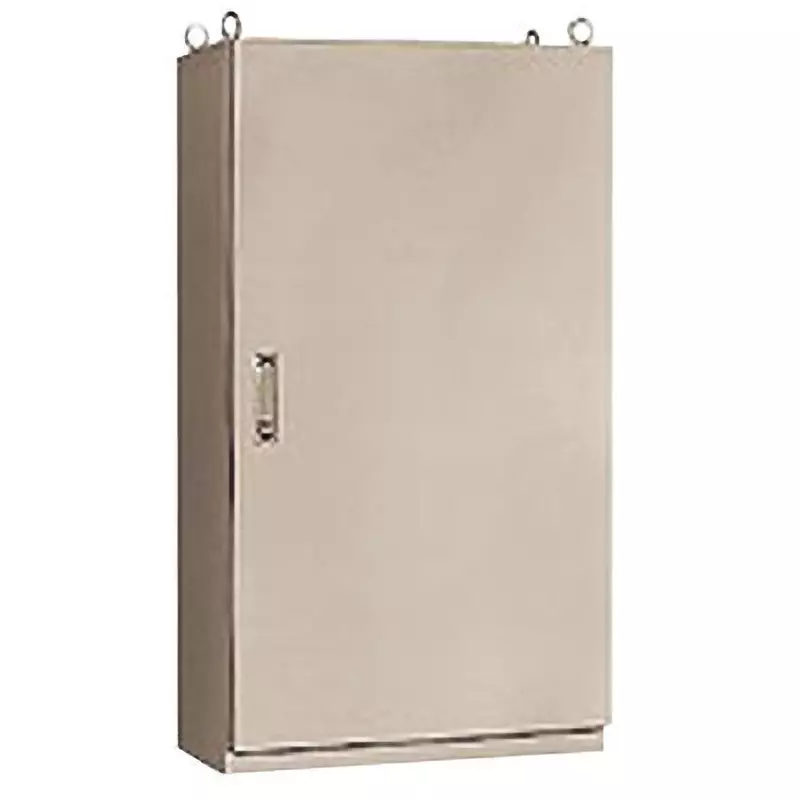

| Type of Product | EA Self-Supporting Control Panel Cabinet |
| Country of Origin | Japan |
Model No |
E25-1221A |
Protection Class |
IP4X |
Type of Product |
EA Self-Supporting Control Panel Cabinet |
Country of Origin |
Japan |
Material |
Iron |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
44635324 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
197 |
Handle |
Waterproof flat handle (large) H-87 |
Dimension d |
66 mm |
Dimension W |
101 mm |
Dimension A1 |
1135 mm |
Dimension B1 (mm) |
2210 |
Dimension I (mm) |
1940 |
Dimension H (Φmm) |
1040 |
Dimension M |
1020 mm |
Dimension P |
1104 mm |
Dimension K |
2088 mm |
Dimension Q (mm) |
2004 |
No. of Bolts |
2 |
Bolt Diameter |
M16 |
Dimension Z (mm) |
110 |
Dimension Y (mm) |
970 |
Dimension E (Φmm) |
1044 mm |
Dimension J (mm) |
1192 |
