Ships within 25 days
View
View
View
View
| Type | Exposure Type |
| Model No | S25-78-1 |
| Protection Class | IP2XD |

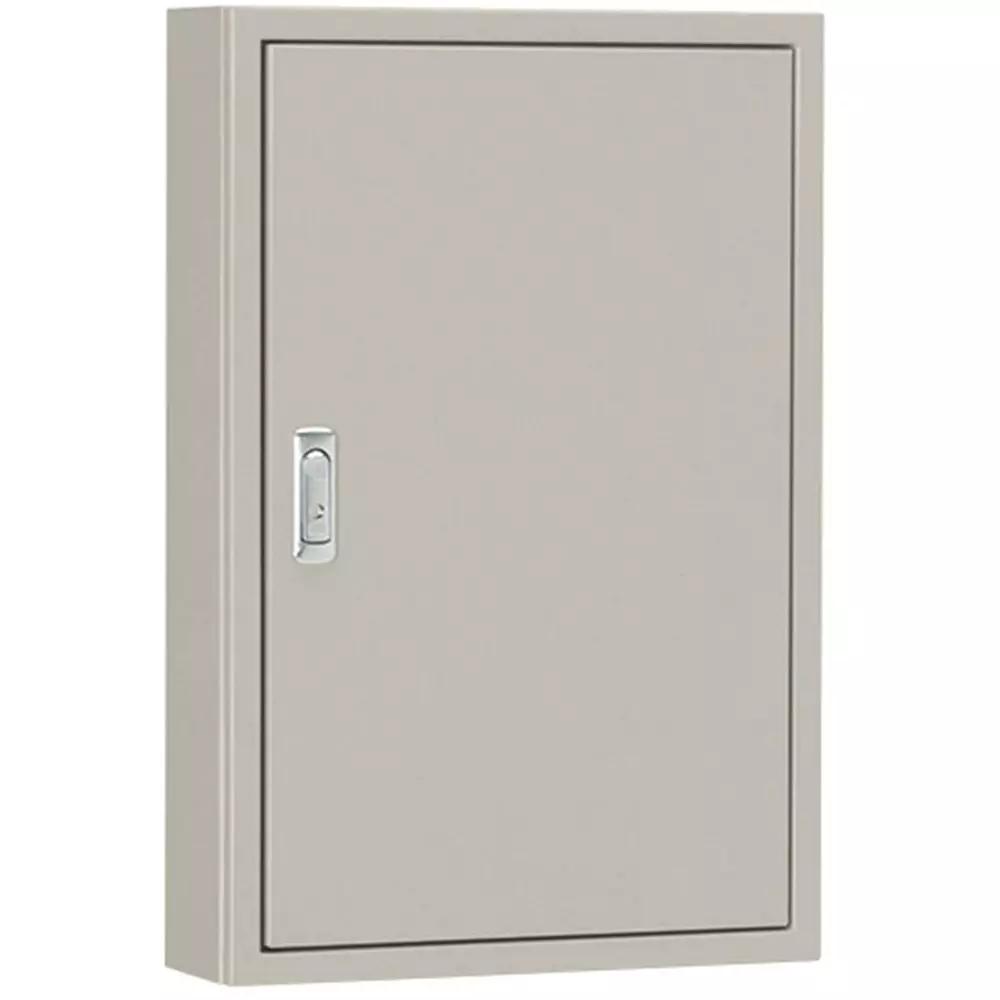

| Type of Product | S-Type Panel Cabinet Large |
Type |
Exposure Type |
Model No |
S25-78-1 |
Protection Class |
IP2XD |
Type of Product |
S-Type Panel Cabinet Large |
Country of Origin |
Japan |
Material |
Iron |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Monotaro ID |
35304701 |
Import Country |
Direct Import from Japan |
Depth (mm) |
231 |
Paint Color |
Light Beige (Munsell value, 5Y7 / 1) |
Mass (Kg) |
36.4 |
Handle |
Plane handle |
Wall Thickness (mm) |
(Door) 1.6 / (body) 1.6 / (front frame) 1.6 |
Material (Circuit Board) |
Made of iron |
RoHS Directive |
Correspondence |
Circuit Board Dimensions, Length x Width (mm) |
720x620 |
Dimensions, Length L x Width W x Depth D (mm) |
800x700x250 |
Door Dimensions, Height x Width (mm) |
754x654 |
Substrate Thickness |
2.3 mm |
Door Opening / Closing Pattern |
One-sided |
