| Type | Standard Type |
| Model No | BHM37343C2E4 |
| Color | White (Munsell symbol 10Y9/0.5) |

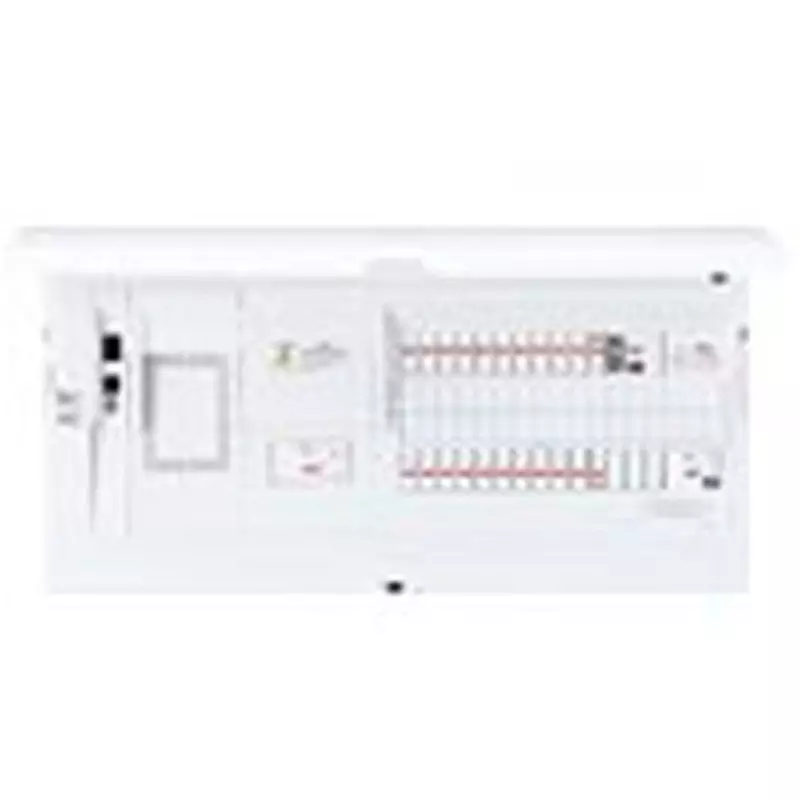

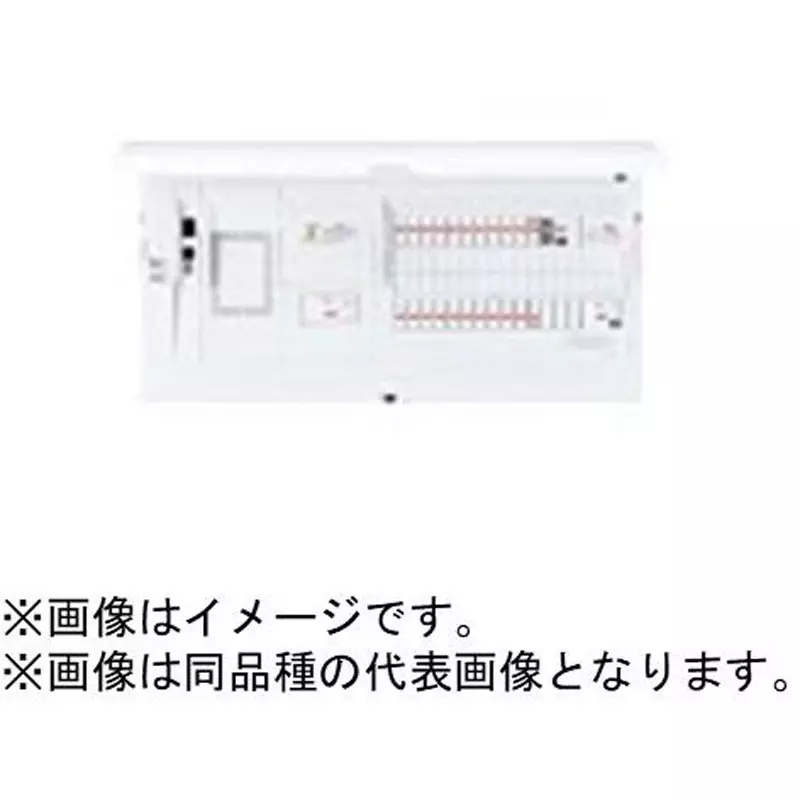

| Type of Product | Residential Distribution Panel |
Type |
Standard Type |
Model No |
BHM37343C2E4 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 43, With Retraction Method (Limiter Space) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
EV/PHEV charging circuit/Solar power generation system/EcoCute/IH compatible |
Monotaro ID |
51390336 |
Import Country |
Direct Import from Japan |
No. of Circuits |
Implementation: 34 |
Circuit space |
3 |
Main capacity (A) |
75 |
No. of Terminals |
12 |
Contents |
(2P1E 20 Amp)26, (2P2E 20 Amp 100 V)6, (2P2E 20 Amp 200 V)1, (2P2E 30 Amp 200 V)1, (ELB 2P2E 20 Amp 15m Amp 200 V)1 |
Chip Breaker |
EV/PHEV charging circuit compatible: 40A, IH cooking heater: 30A, EcoCute/electric water heater: 20A (branch type), solar power generation interconnection: 30A |
Structure |
With Door, Both Exposed And Semi-Recessed Type |

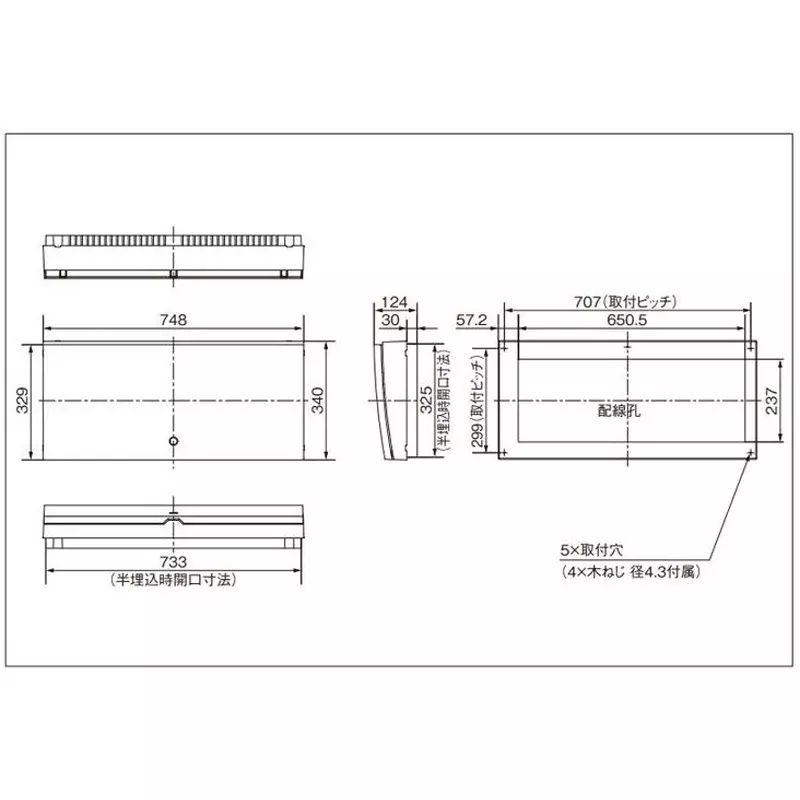

Dimensions WxDxH (mm) |
340x748x124, (semi-embedded) 325x733x30 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
