| Type | Standard Type |
| Model No | BHM810262M3 |
| Color | White |
| Type of Product | Residential Distribution Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Standard Type |
Model No |
BHM810262M3 |
Color |
White |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 27, No Lead-In Method (Limiter Space), Multi-Communication Type, ZEH/Energy Generation Compatible |
Breaking Capacity |
For electric water heater: 30A |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Solar Power Generation System, Ecocute, Electric Water Heater, Ih Compatible |
Monotaro ID |
51370219 |
Import Country |
Direct Import from Japan |
Used For |
EcoCute (branch type) |
No. of Circuits |
(Implementation) 22 |
Circuit space |
2 |
Main capacity (A) |
100 |
No. of Terminals |
12 (6 for 12 circuits) |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)18, (2P2E 20 Amp 100 V)6, (2P2E 30 Amp 200 V)2 |
Capacity (A) |
40 Amp |

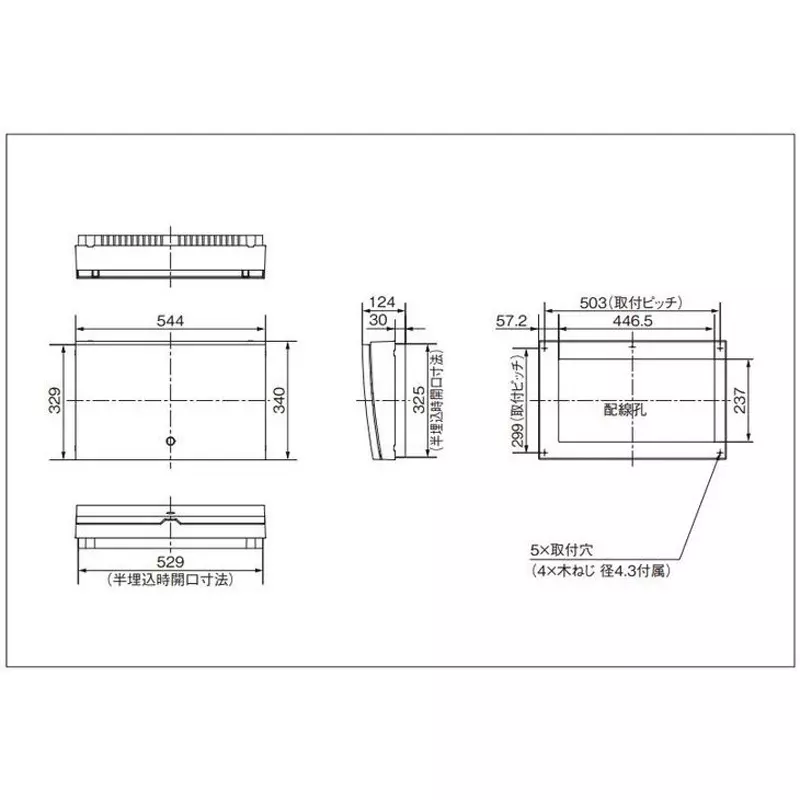

Semi-embedded dimensions (length x width x depth) (mm) |
325x529x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Dimensions WxDxH (mm) |
340x544x124 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
munsell value |
10Y9/0.5 |
