| Model No | BHM37302LJ2 |
| Color | White (Munsell symbol 10Y9/0.5) |

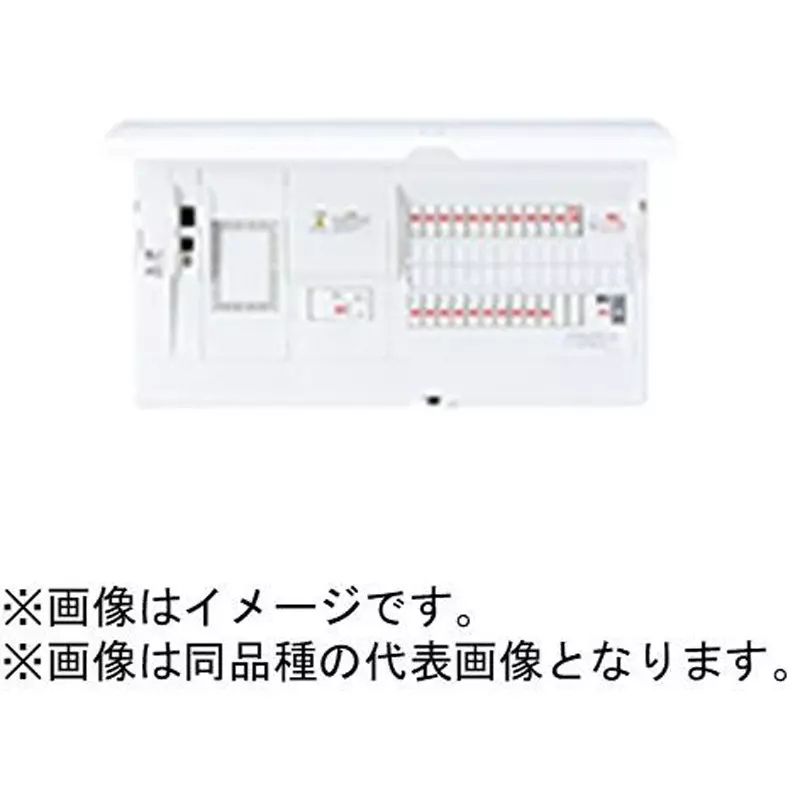

| Type of Product | Residential Distribution Board |
| Country of Origin | Japan |
Model No |
BHM37302LJ2 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Board |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 35, With Retraction Method (Limiter Space) |
Width (mm) |
680 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Residential distribution board compatible with creation-storage cooperation system For independent output (single-phase 2-wire) |
Monotaro ID |
51394256 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 30 |
Circuit space |
2 |
Main capacity (A) |
75 |
No. of Terminals |
11 |
Depth (mm) |
124 |
Contents |
(2P1E 20 Amp)23, (2P2E 20 Amp 100 V)6, (2P2E 30 Amp 200 V)1 |
Height (mm) |
340 |

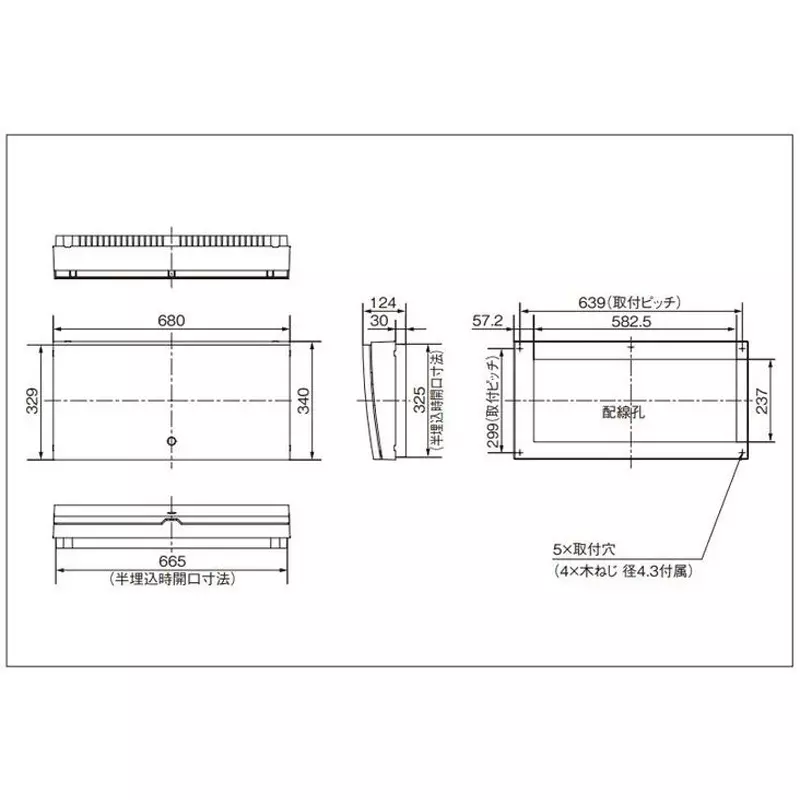

Semi-embedded dimensions (length x width x depth) (mm) |
325x665x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
