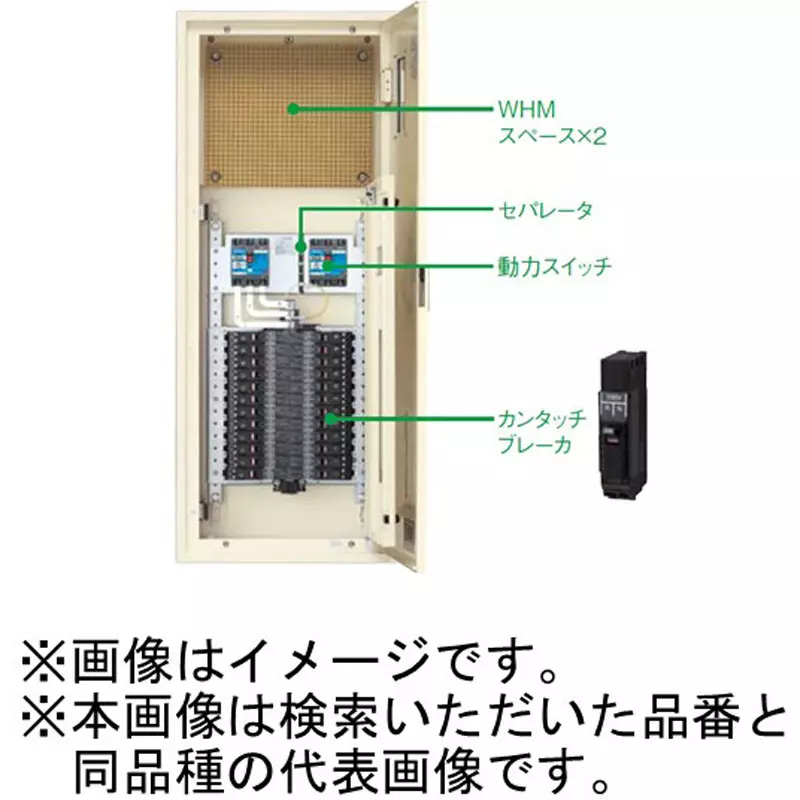

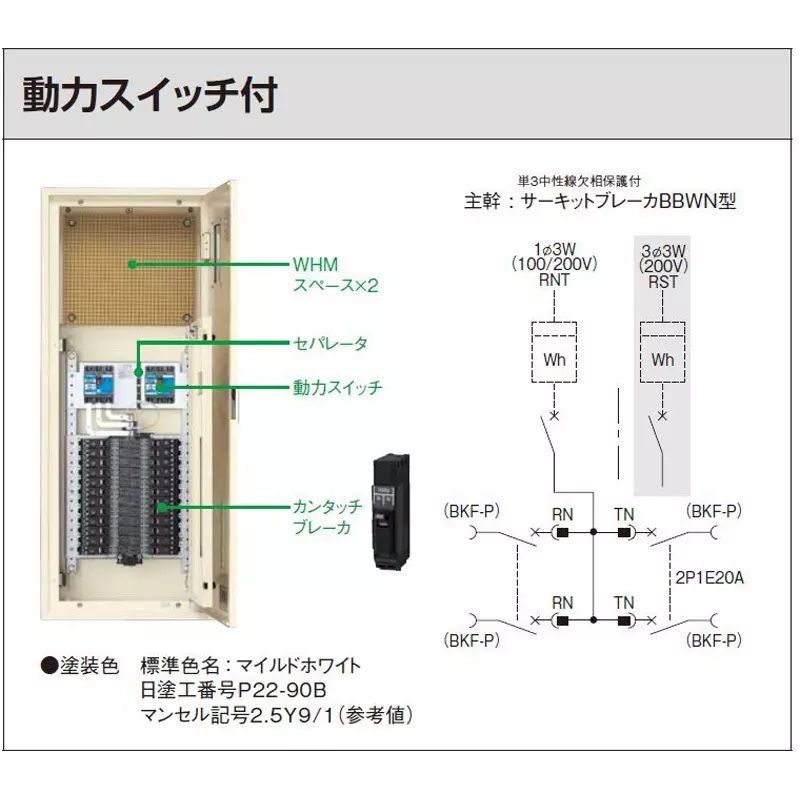

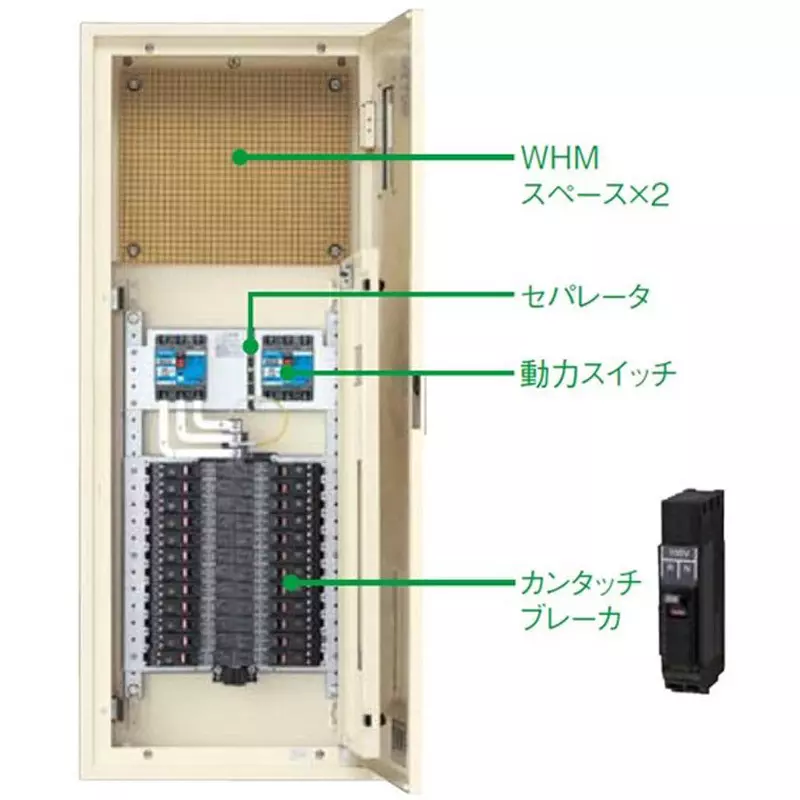

| Type | Quantatch Arrow Panel: Tenant Lighting And Power Mixed Distribution Panel |
| Model No | BN624W2H |
| Shape | Exposure type |
| Protection Class | IP2XD |
Type |
Quantatch Arrow Panel: Tenant Lighting And Power Mixed Distribution Panel |
Model No |
BN624W2H |
Shape |
Exposure type |
Protection Class |
IP2XD |
Type of Product |
Cantatch Arrow Panel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
79741709 |
Import Country |
Direct Import from Japan |
No. of Circuits |
24 |
Circuit space |
0 |
Main capacity (A) |
60/60 AF Amp |
Quantity |
One |
Dimension (mm) |
Height 1000xDepth 175xWidth 500 |
Paint Color |
Mild White (Japan Paint Company Number P22-90B/Munsell Symbol 2.5Y9/1 (Reference Value)) |
Cabinet |
BOD51017VW |
Mass (Kg) |
42 |
Lead |
Single-phase circuit breaker with neutral phase loss protection (N-phase loss MCB 3P) |
