| Type | High Functionality + Free Space Included |
| Model No | BQEF86181C2 |
| Color | White (Munsell symbol 10Y9/0.5) |

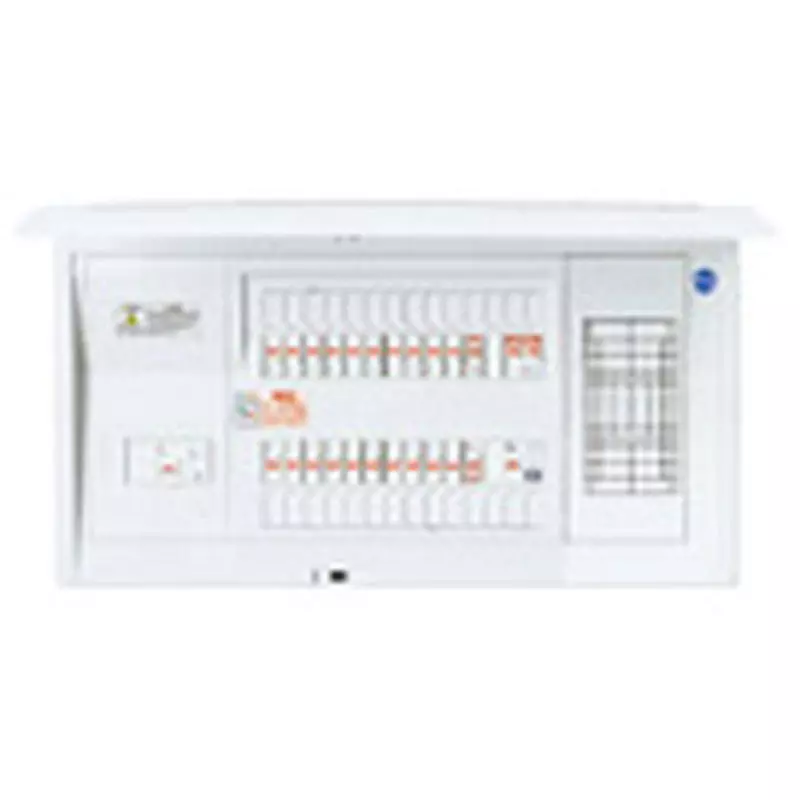

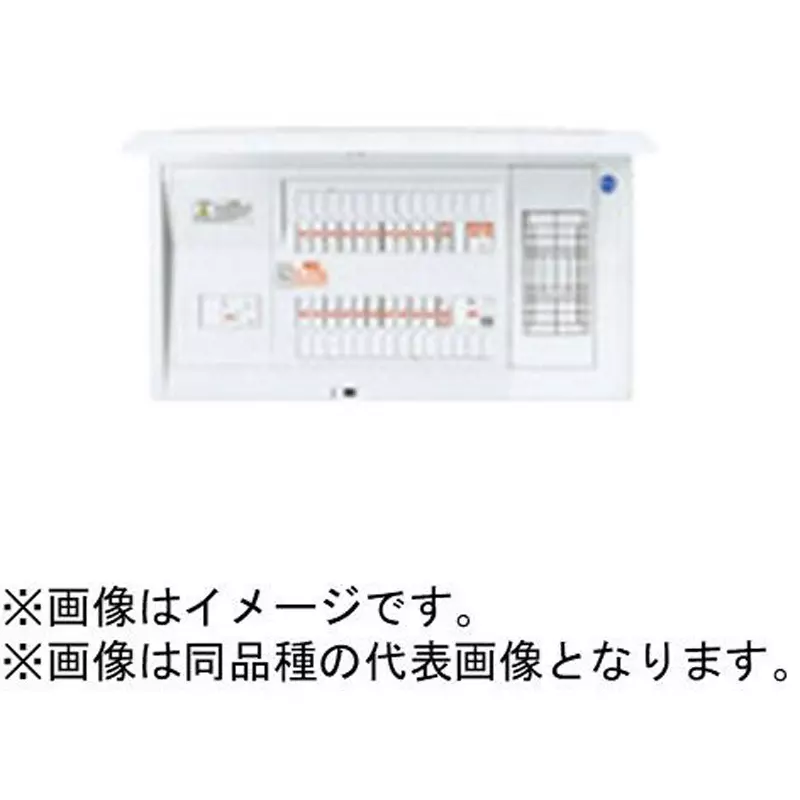

| Type of Product | Cosmo Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
High Functionality + Free Space Included |
Model No |
BQEF86181C2 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Suitable For |
(Standards Conformity Certification) Product That Complies With Japan Wiring System Industry Association Residential Distribution Board Standards |
Specifications |
No retraction method (limiter space) |
Breaking Capacity |
20 Amp |
Width (mm) |
552 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Solar Power Generation System, Ecocute, Ih Compatible |
Monotaro ID |
51381385 |
Import Country |
Direct Import from Japan |
Used For |
EcoCute (branch type) |
No. of Circuits |
(Implementation) 18, (AA branch) 1 |
Circuit space |
1 |
Main capacity (A) |
60 |
No. of Terminals |
12 (6 for 8 circuits or less) |
Depth (mm) |
111 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)12, (2P2E 20 Amp 100 V)4, (2P2E 20 Amp 200 V)1, (2P2E 30 Amp 200 V)1 |
Height (mm) |
325 |

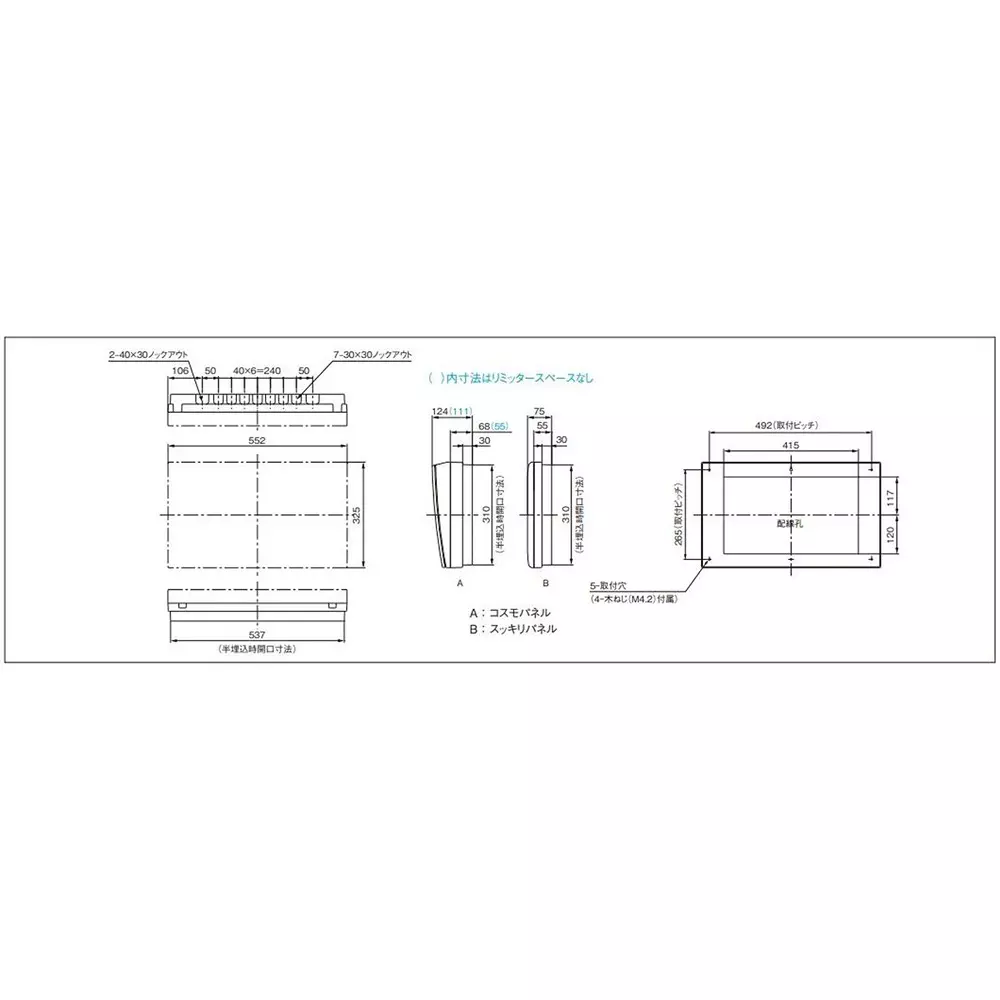

Semi-embedded dimensions (length x width x depth) (mm) |
310x537x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
