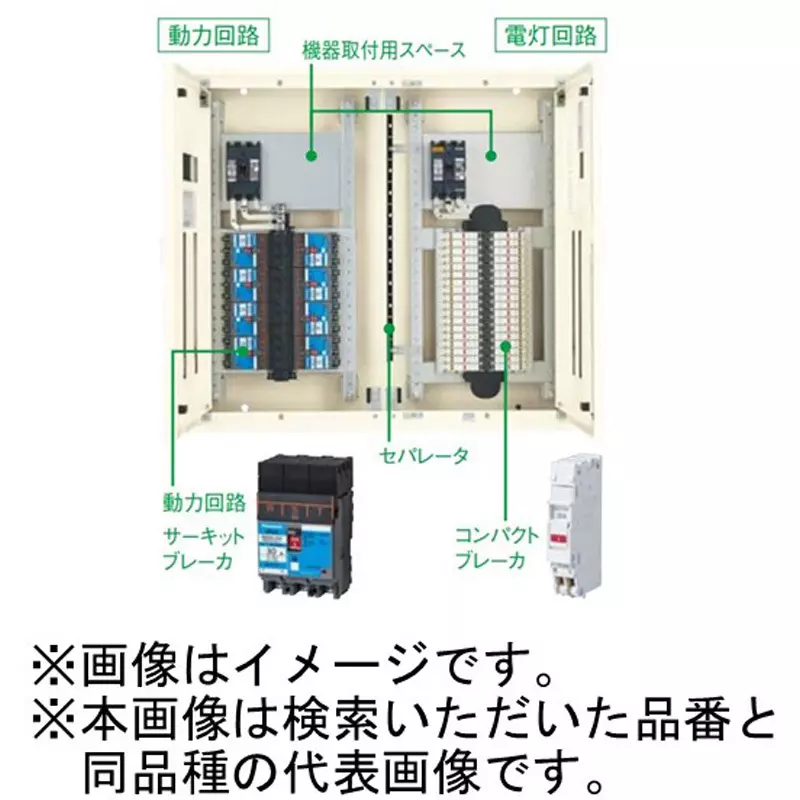

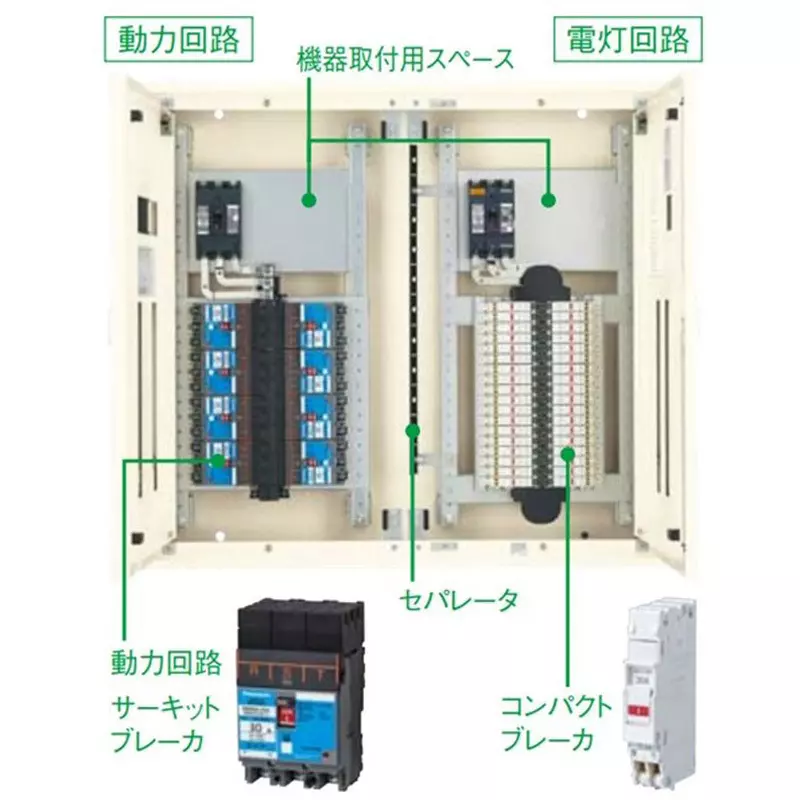

| Type | Compact Arrow Panel, Lighting and Power Mixed Distribution Panel |
| Model No | BNC2048KTYRH |
| Shape | Exposure type |
| Protection Class | IP2XD |
Type |
Compact Arrow Panel, Lighting and Power Mixed Distribution Panel |
Model No |
BNC2048KTYRH |
Shape |
Exposure type |
Protection Class |
IP2XD |
Type of Product |
Compact Arrow Panel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
79742725 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Power Circuit) 8, (Lighting Circuit) 48 |
Circuit space |
(Power Circuit) 0, (Lighting Circuit) 0 |
Main capacity (A) |
225/200 Amp |
Quantity |
One |
Dimension (mm) |
Height 1100xDepth 175xWidth 1000 |
Paint Color |
Mild White (Japan Paint Company Number P22-90B/Munsell Symbol 2.5Y9/1 (Reference Value)) |
Cabinet |
BON101117VK |
Mass (Kg) |
88 |
Lead |
Single-phase circuit breaker with neutral phase loss protection (N-phase loss MCB 3P) |
Number of Breakers Mounted |
Lighting circuit (2P2E): 6 |
