| Type | EASY Wall Panel Kantouch (for floor outlets and lighting loads) |
| Model No | BNWE2044XH |
| Type of Product | EASY Wall Panel |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
EASY Wall Panel Kantouch (for floor outlets and lighting loads) |
Model No |
BNWE2044XH |
Type of Product |
EASY Wall Panel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
79739024 |
Import Country |
Direct Import from Japan |
No. of Circuits |
44 |
Circuit space |
4 |
Main capacity (A) |
225/200 Amp |
Contents |
Easy-to-connect breaker (plug-in type) (MCB2P1E20A) (rated breaking capacity 5kA) |
Height (mm) |
Ceiling (adjustable): 2900-3200 |
Quantity |
One |
Paint Color |
(Standard Color) Oyster Gray (Japan Paint No. P25-80A, Munsell Symbol 5Y8/0.5 (Reference Value)) |
Mass (Kg) |
75 |
Lead |
Single-phase neutral line open-phase protection circuit breaker (BBWN type) |
Handle |
(Model) Flat rotary handle MA1-2K (product number/BN8A232004) |

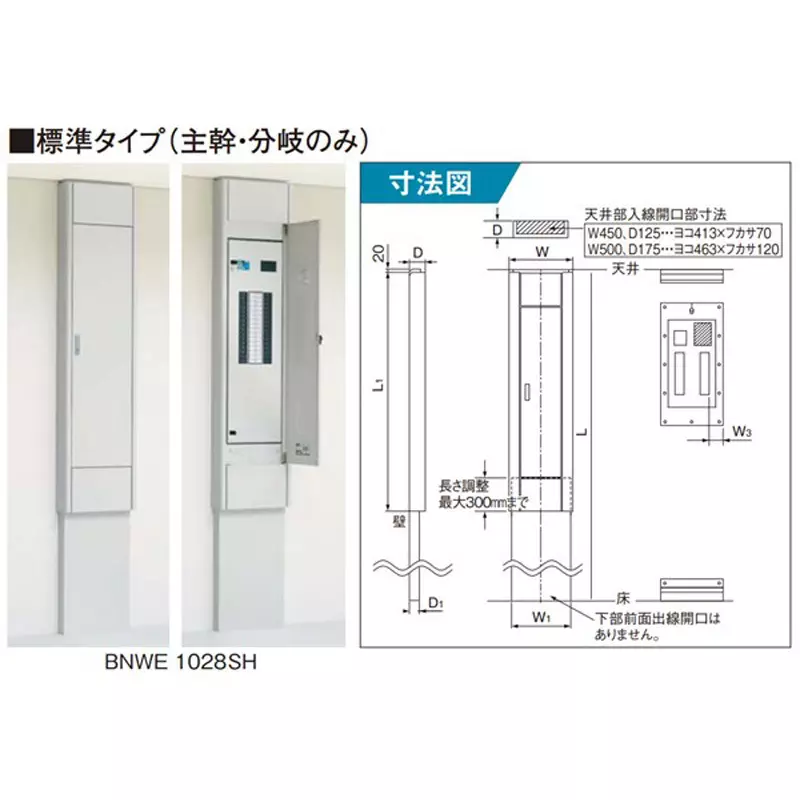

Dimension L1 |
2430 mm |
Dimension W1 (mm) |
470 |
Dimension L (mm) |
Vertical 2900 To 3200 |
Dimension D1 (mm) |
125 |
Dimension d |
depth 175 |
Dimension W |
Width 500 |
Cable |
Support included (ceiling entry opening, internal unit, lower mounting bracket) |
