| Type | Standard Type |
| Model No | BHR37382G |
| Color | White (Munsell symbol 10Y9/0.5) |

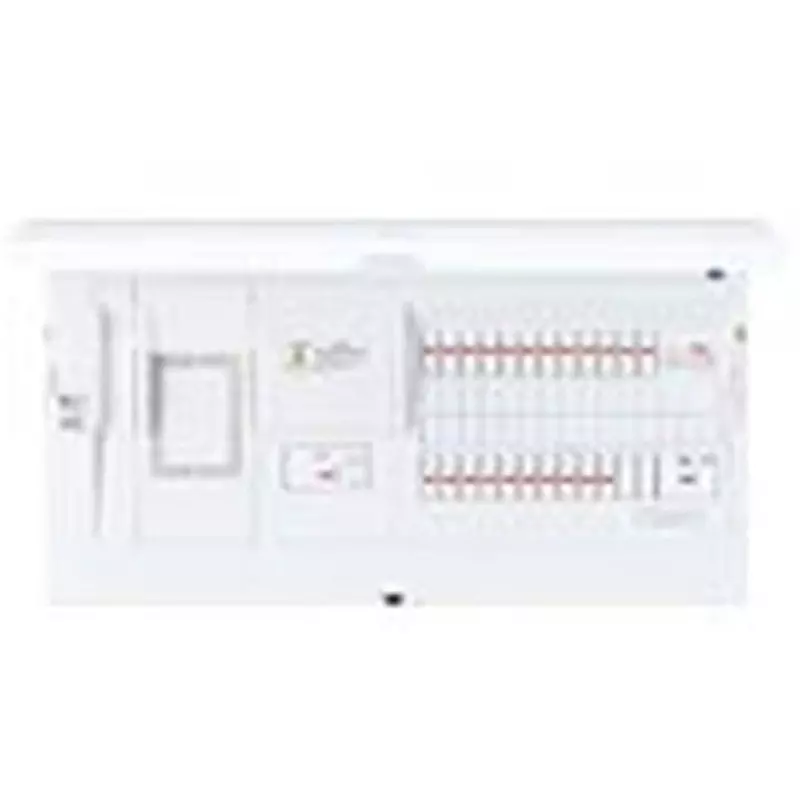

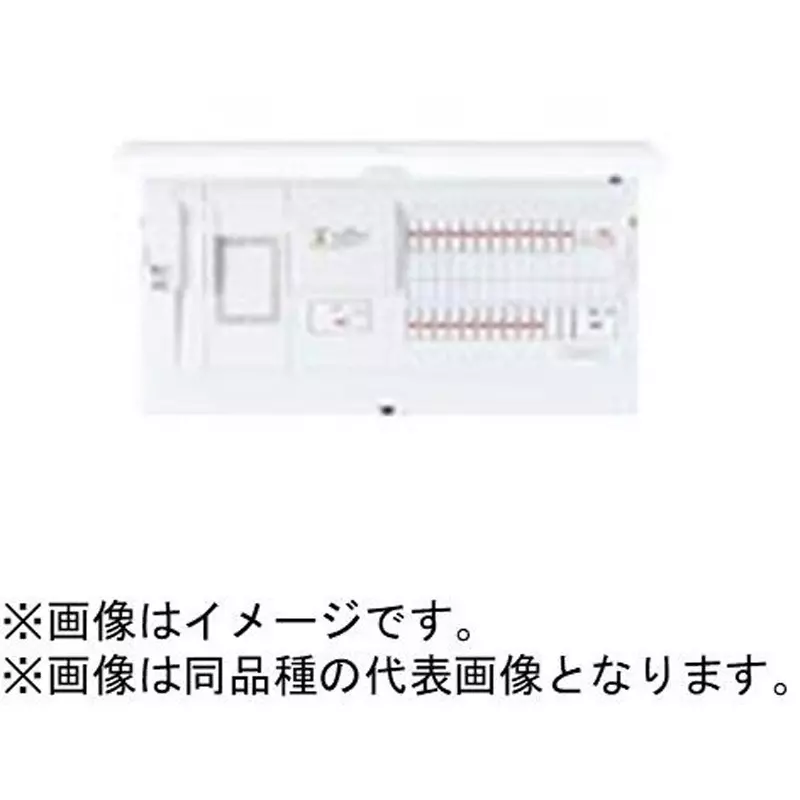

| Type of Product | Residential Distribution Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Standard Type |
Model No |
BHR37382G |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 43, With Retraction Method (Limiter Space) |

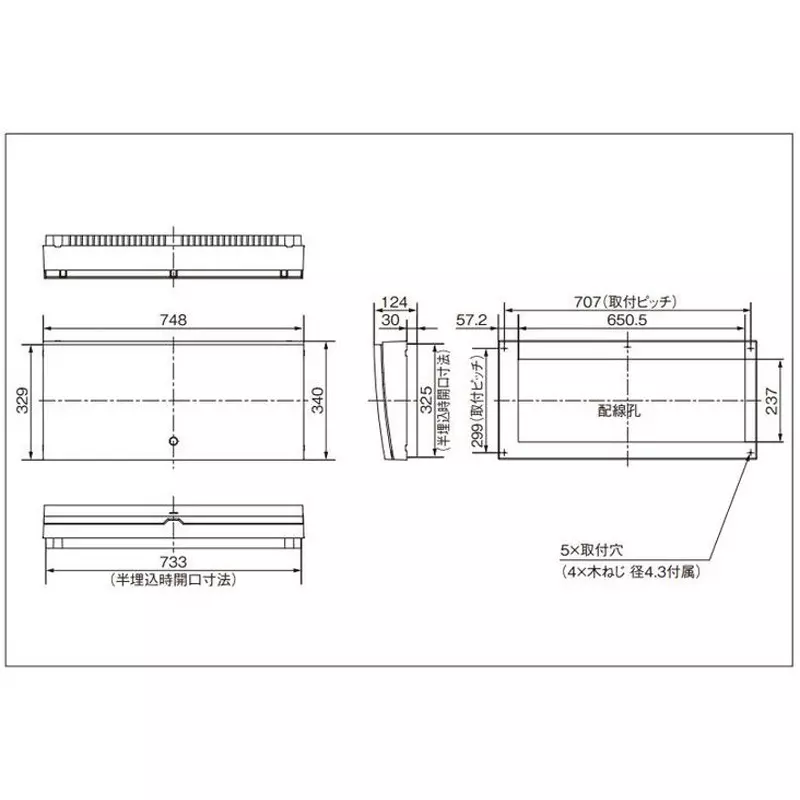

Width (mm) |
748 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Compatible with household fuel cell systems/gas power generation/hot water heating/cooling systems |
Monotaro ID |
51393766 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation)38 |
Circuit space |
2 |
Main capacity (A) |
75 |
No. of Terminals |
12 (6 for 12 circuits) |
Depth (mm) |
124 |
Contents |
(2P1E 20 Amp)30, (2P2E 20 Amp 100 V)8 |
Height (mm) |
340 |
Chip Breaker |
Connection for private power generation: 20A |
Semi-embedded dimensions (length x width x depth) (mm) |
325x733x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
