| Model No | BON6812VK |
| Protection Class | IP2XD |
| Door | One door |
| Type of Product | Board Cabinet |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
BON6812VK |
Protection Class |
IP2XD |
Door |
One door |
Type of Product |
Board Cabinet |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
38190354 |
Import Country |
Direct Import from Japan |
Depth (mm) |
95 |
Paint Color |
Mild white (Japan coating number: E22-90B, Munsell symbol: 2.5Y9 / 1 (reference value)) |
Mass (Kg) |
24.6 |
Handle |
Flat rotary handle (MA1-3K) |

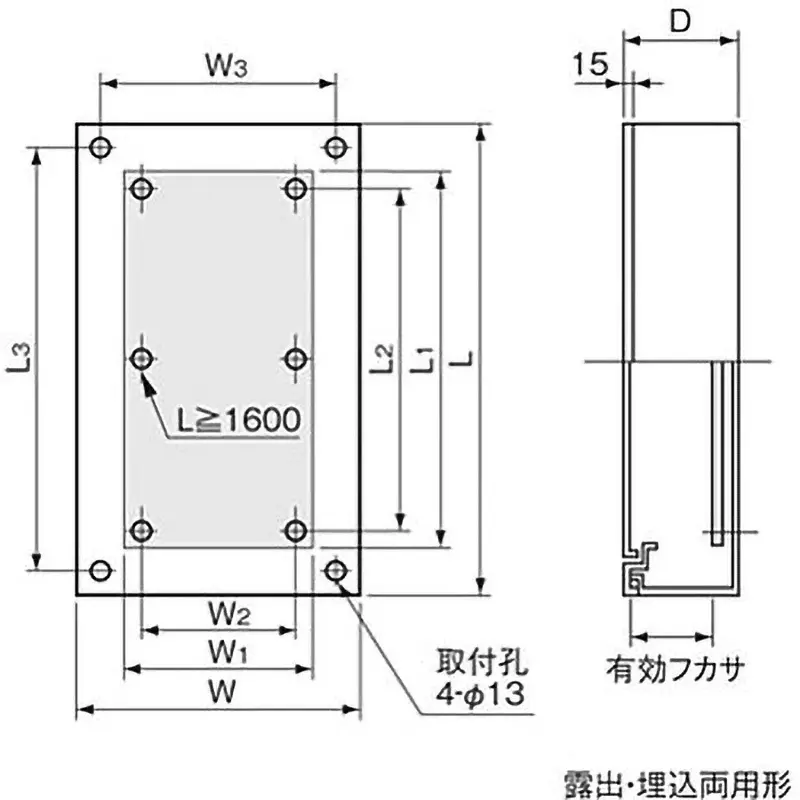

External Dimensions (width x depth x height) (mm) |
600x800x125 |
Dimension L3 (mm) |
720 |
Wall Thickness (mm) |
(Box Door) 1.6 (Substrate) 15 |
Dimension W2 (mm) |
400 |
Dimension W3 (mm) |
320 |
Dimension L2 |
650 mm |
Base Dimensions (mm) |
490x690 |
Material (Circuit Board) |
wooden |
Main Unit Material |
Steel plate |
