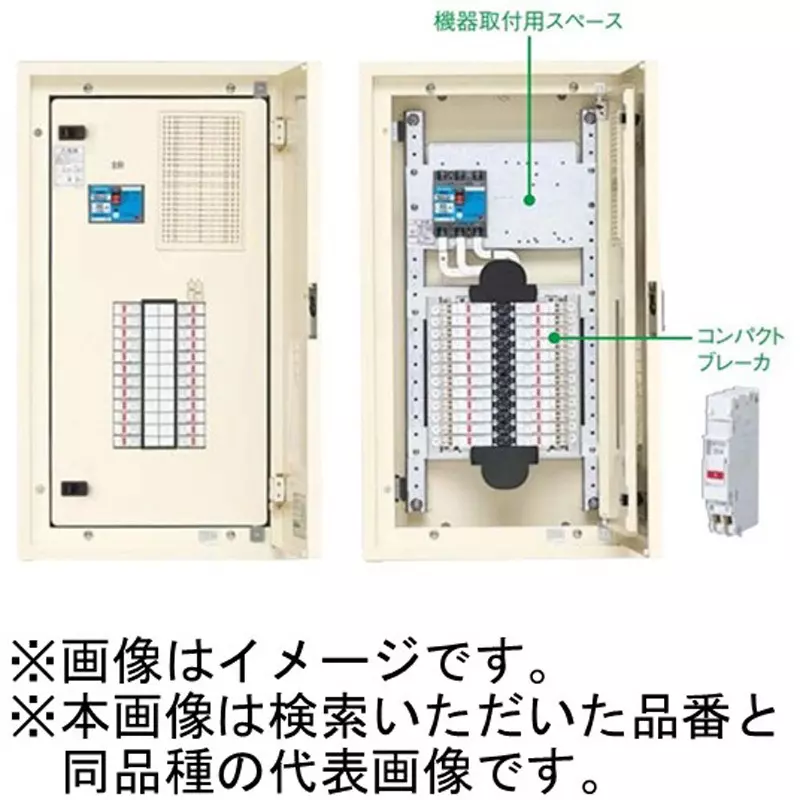

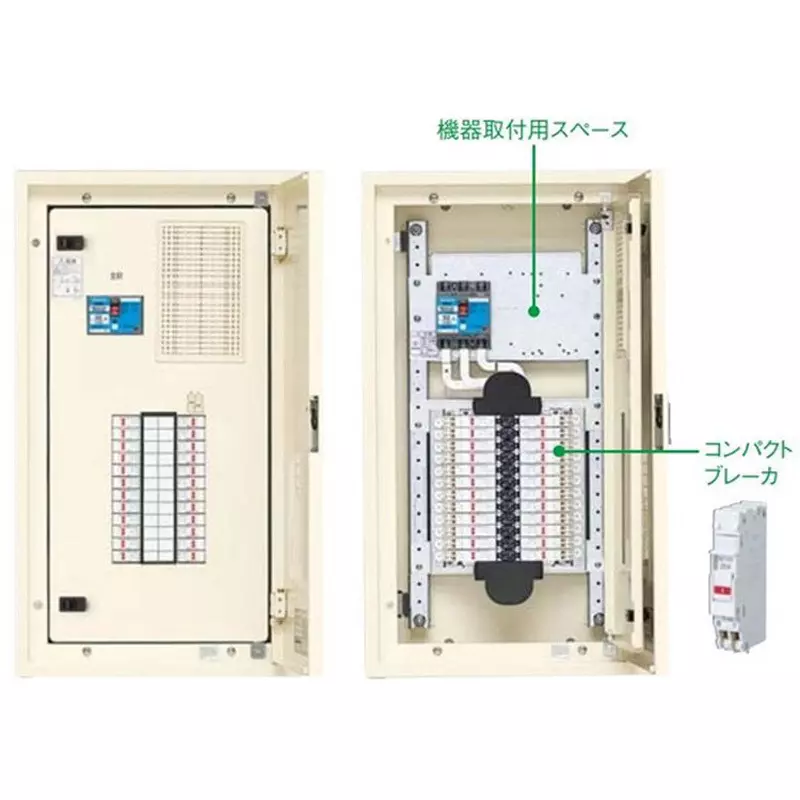

| Type | Compact Arrow Panel Lighting Distribution Panel |
| Model No | BNC25725RH |
| Shape | Exposure type |
| Protection Class | IP2XD |
Type |
Compact Arrow Panel Lighting Distribution Panel |
Model No |
BNC25725RH |
Shape |
Exposure type |
Protection Class |
IP2XD |
Type of Product |
Compact Arrow Panel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
79742427 |
Import Country |
Direct Import from Japan |
No. of Circuits |
72 |
Circuit space |
0 |
Main capacity (A) |
225/200A (*The bus capacity is 400A, but the capacity of the branch unit is 225A. Please pay attention to the load capacity to be connected, and make sure that the total current of each branch unit does not exceed 225A.) |
Quantity |
One |
Dimension (mm) |
Height 1750xDepth 200xWidth 600 |
Paint Color |
Mild White (Japan Paint Company Number P22-90B/Munsell Symbol 2.5Y9/1 (Reference Value)) |
Mass (Kg) |
93 |
Lead |

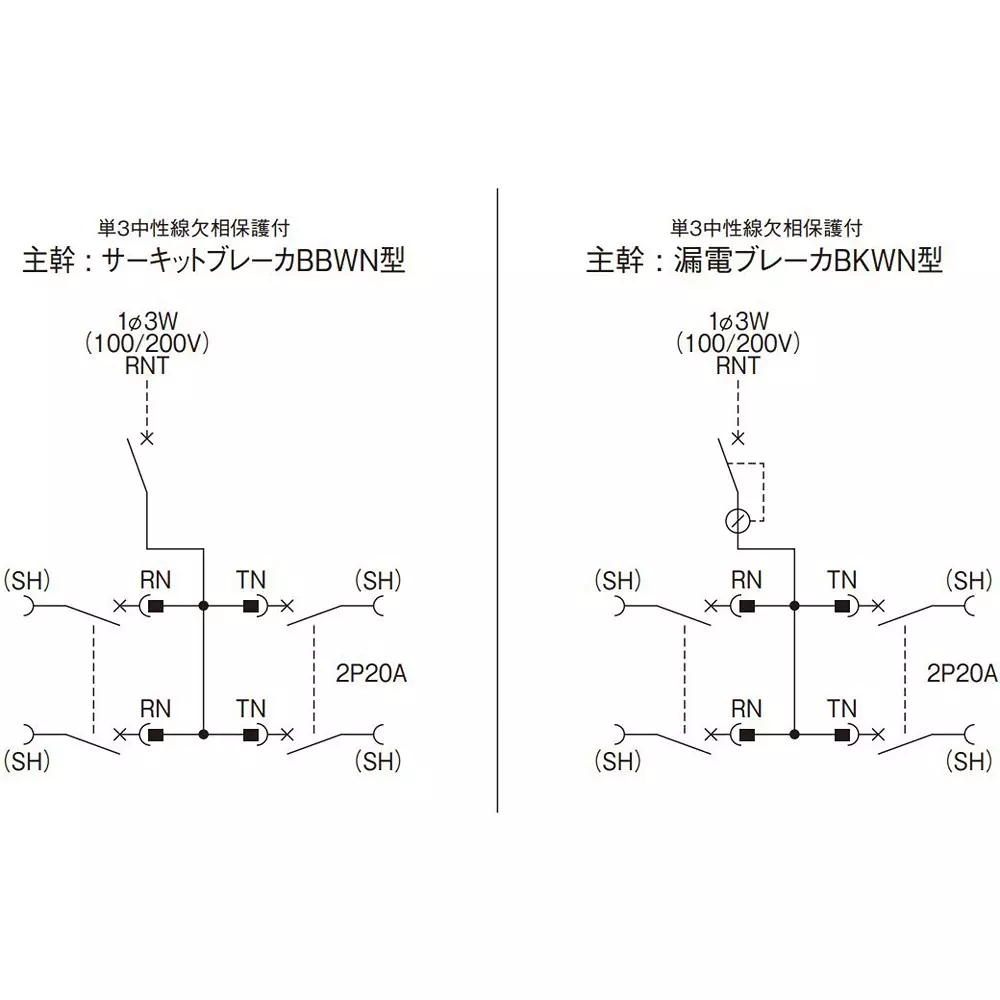

Single-phase neutral line open-phase protection earth leakage breaker (N-open ELB 3P) |
Number of Breakers Mounted |
2P2E：6 |
