| Type | Standard Type |
| Model No | BHM810342M2 |
| Color | White (Munsell symbol 10Y9/0.5) |
| Type of Product | Residential Distribution Panel |
Type |
Standard Type |
Model No |
BHM810342M2 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 39, No Lead-In Method (Limiter Space) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Solar Power Generation System, Ecocute, Ih Compatible |
Monotaro ID |
51390038 |
Import Country |
Direct Import from Japan |
No. of Circuits |
Implementation: 34 |
Circuit space |
2 |
Main capacity (A) |
100 |
No. of Terminals |
12 (6 for 12 circuits) |
Contents |
(2P1E 20 Amp)26, (2P2E 20 Amp 100 V)6, (2P2E 20 Amp 200 V)1, (2P2E 30 Amp 200 V)1 |
Chip Breaker |
For IH cooking heater: 30A, for EcoCute: 20A (branch type), for solar power generation connection: 40A |
Structure |
With Door, Both Exposed And Semi-Recessed Type |

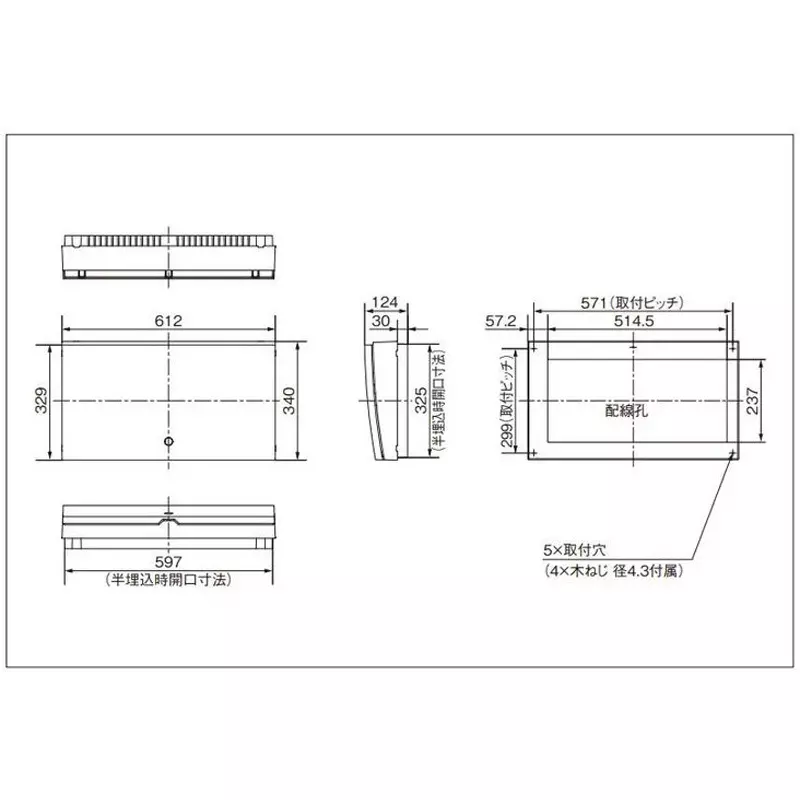

Dimensions WxDxH (mm) |
340x612x124, (semi-embedded) 325x597x30 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
