| Type | with Free Space |
| Model No | BHRF85142J |
| Color | White (Munsell symbol 10Y9/0.5) |
| Type of Product | Residential Distribution Panel |
Type |
with Free Space |
Model No |
BHRF85142J |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
No Lead-In Method (Limiter Space), (Number Of Branch Current Sensors) 19 |
Width (mm) |
544 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Compatible with solar power generation systems |
Monotaro ID |
51374464 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 14 |
Circuit space |
2 |
Main capacity (A) |
50 |
No. of Terminals |
12 (6 for 12 circuits) |
Depth (mm) |
124 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)10, (2P2E 20 Amp 100 V)4 |
Height (mm) |
340 |

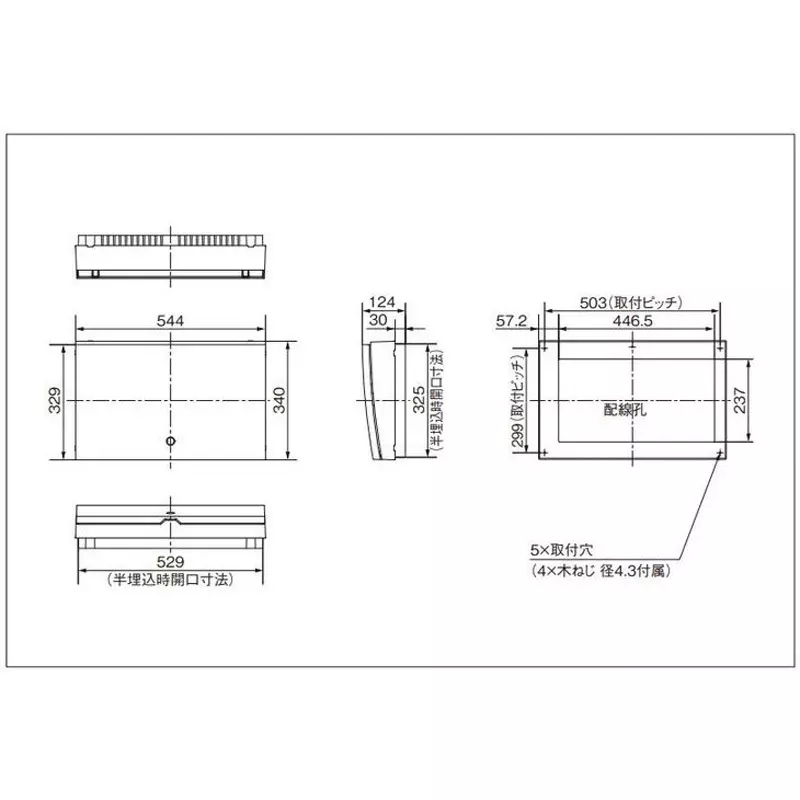

Semi-embedded dimensions (length x width x depth) (mm) |
325x529x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
