Ships within 25 days
View
View
View
View
| Type | Advanced |
| Model No | BQE810341EK |
| Color | White (Munsell symbol 10Y9/0.5) |

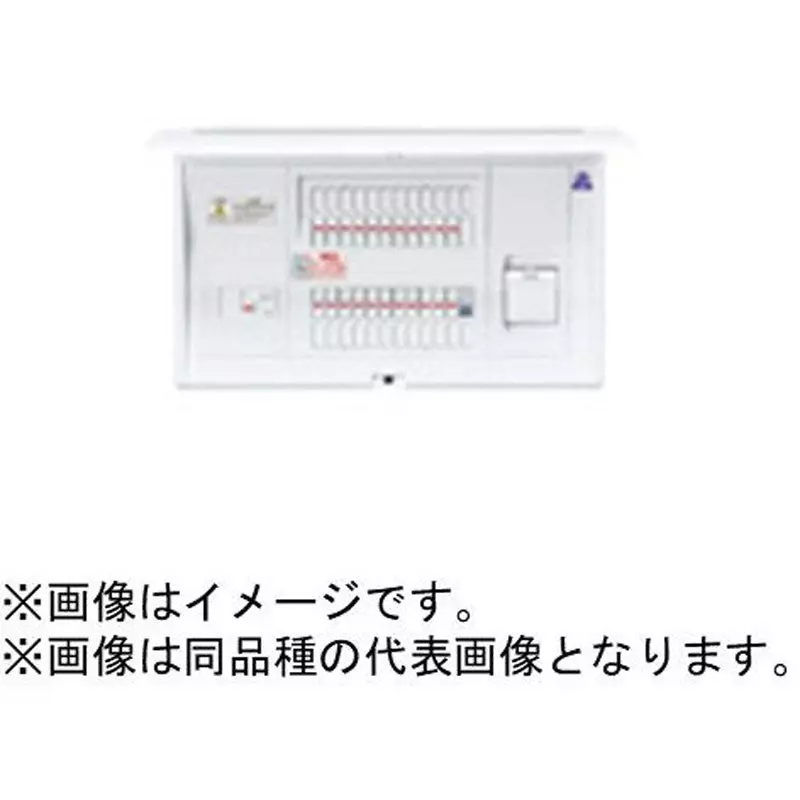

| Type of Product | Cosmo Panel |
Type |
Advanced |
Model No |
BQE810341EK |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
No retraction method (limiter space) |
Width (mm) |
654 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Kaminari Anshin Ban (With Lighting Function)/Equipped With Lightning Arrester And Security Light |
Monotaro ID |
51393940 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 34 |
Circuit space |
1 |
Main capacity (A) |
100 |
No. of Terminals |
12 |
Depth (mm) |
111 |
Contents |
(2P1E 20 Amp)28, (2P2E 20 Amp 100 V)6 |
Height (mm) |
325 |

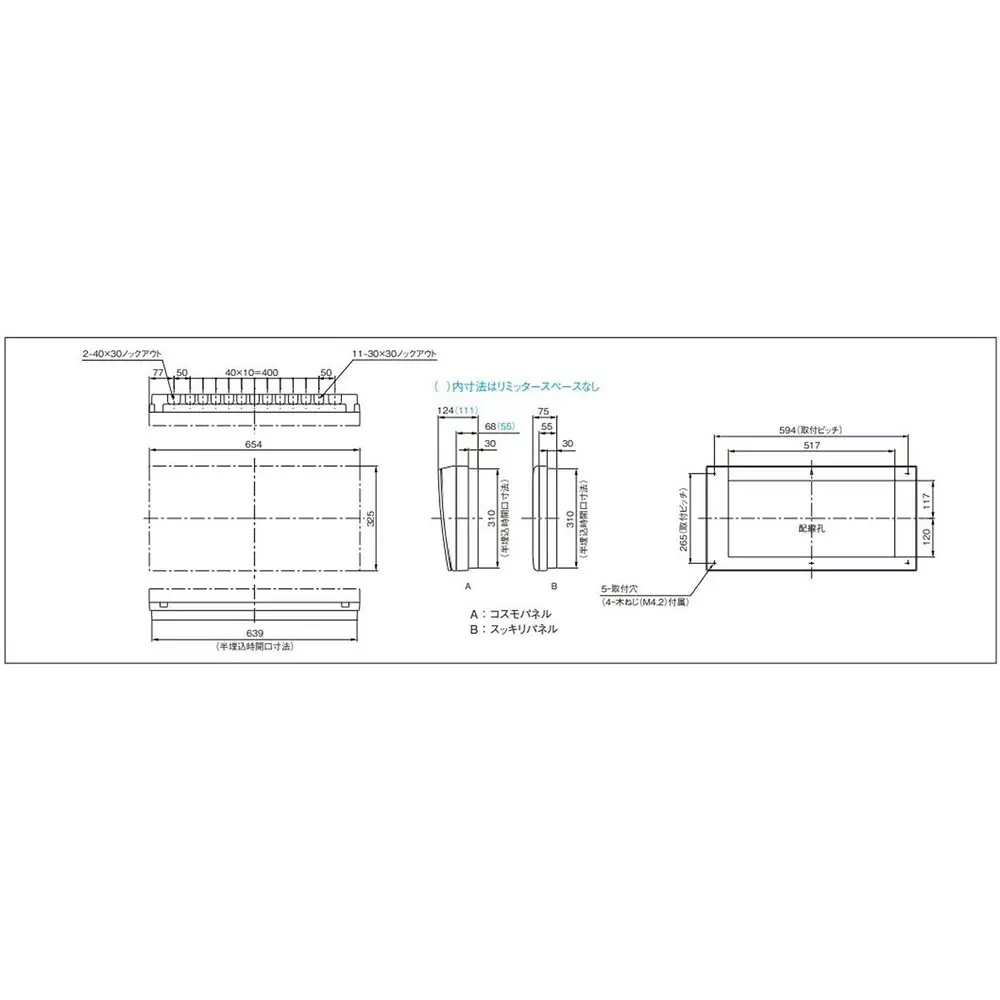

Semi-embedded dimensions (length x width x depth) (mm) |
310x639x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board High Performance Standard Compliant Product |
