| Type | Advanced |
| Model No | BQE85343C3 |
| Color | White (Munsell symbol 10Y9/0.5) |

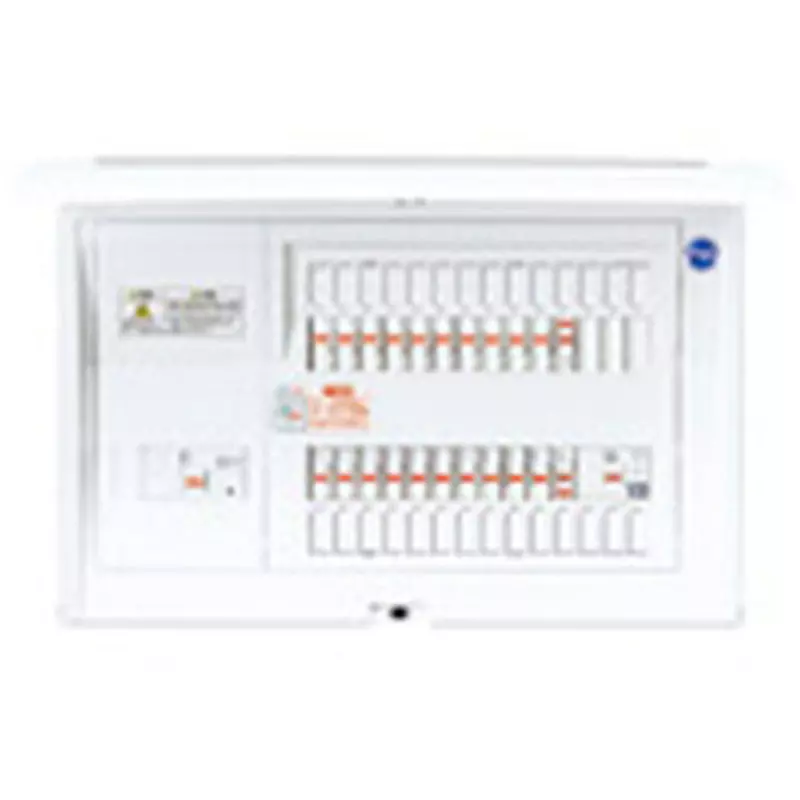

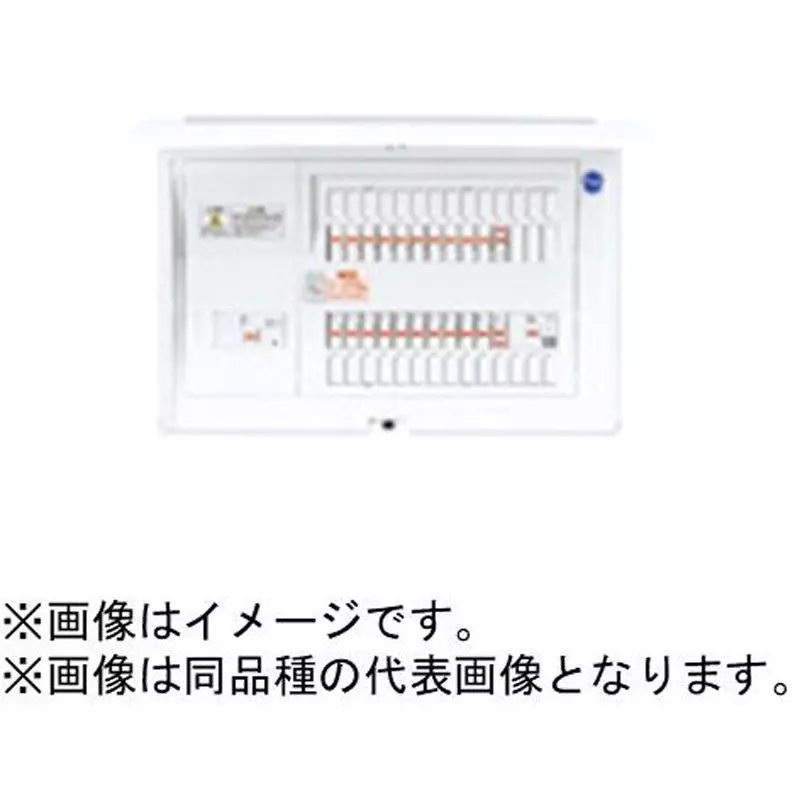

| Type of Product | Cosmo Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Advanced |
Model No |
BQE85343C3 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
No retraction method (limiter space) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Solar Power Generation System, Ecocute, Electric Water Heater, Ih Compatible |
Monotaro ID |
51390869 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 34 |
Circuit space |
3 |
Main capacity (A) |
50 |
No. of Terminals |
12 (6 for 13 circuits or less) |
Contents |
(2P1E 20 Amp)26, (2P2E 20 Amp 100 V)6, (2P2E 30 Amp 200 V)2 |
Chip Breaker |
For IH cooking heater: 30A, for EcoCute electric water heater (branch type): 30A, for solar power generation connection: 30A |

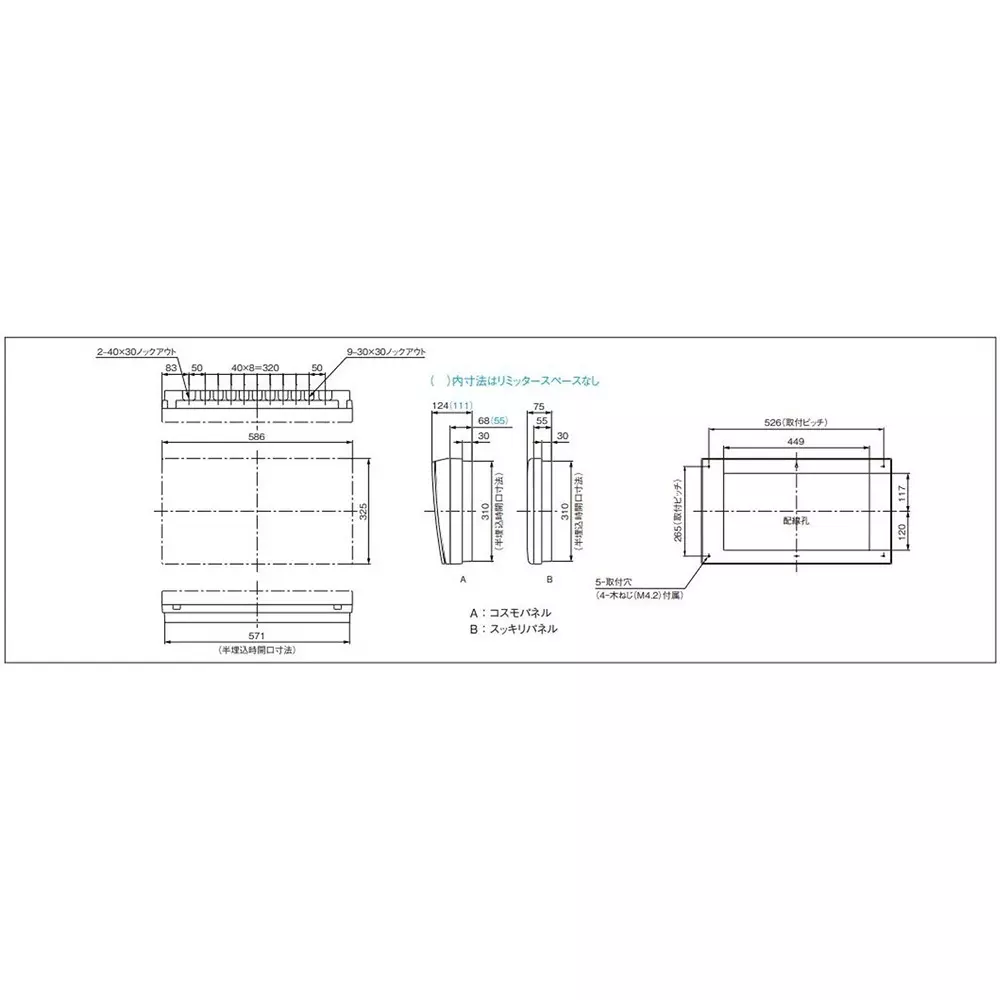

Semi-embedded dimensions (length x width x depth) (mm) |
325x571x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Dimensions WxDxH (mm) |
340x586x124 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
