| Type | Advanced |
| Model No | BQE86182JZ |
| Color | White (Munsell symbol 10Y9/0.5) |
| Type of Product | Cosmo Panel |
Type |
Advanced |
Model No |
BQE86182JZ |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Suitable For |
(Standards Conformance Certification) High-Performance Standard Compliant Product For Residential Distribution Boards Of The Japan Wiring System Industry Association (General Incorporated Association) |
Specifications |
No retraction method (limiter space) |
Width (mm) |
450 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Earthquake safety ban (compatible with solar power generation system)/Equipped with a seismic breaker |
Monotaro ID |
51382277 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 18 |
Circuit space |
2 |
Main capacity (A) |
60 |
No. of Terminals |
12 (6 for 12 circuits or less) |
Depth (mm) |
111 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)14, (2P2E 20 Amp 100 V)4 |
Height (mm) |
325 |

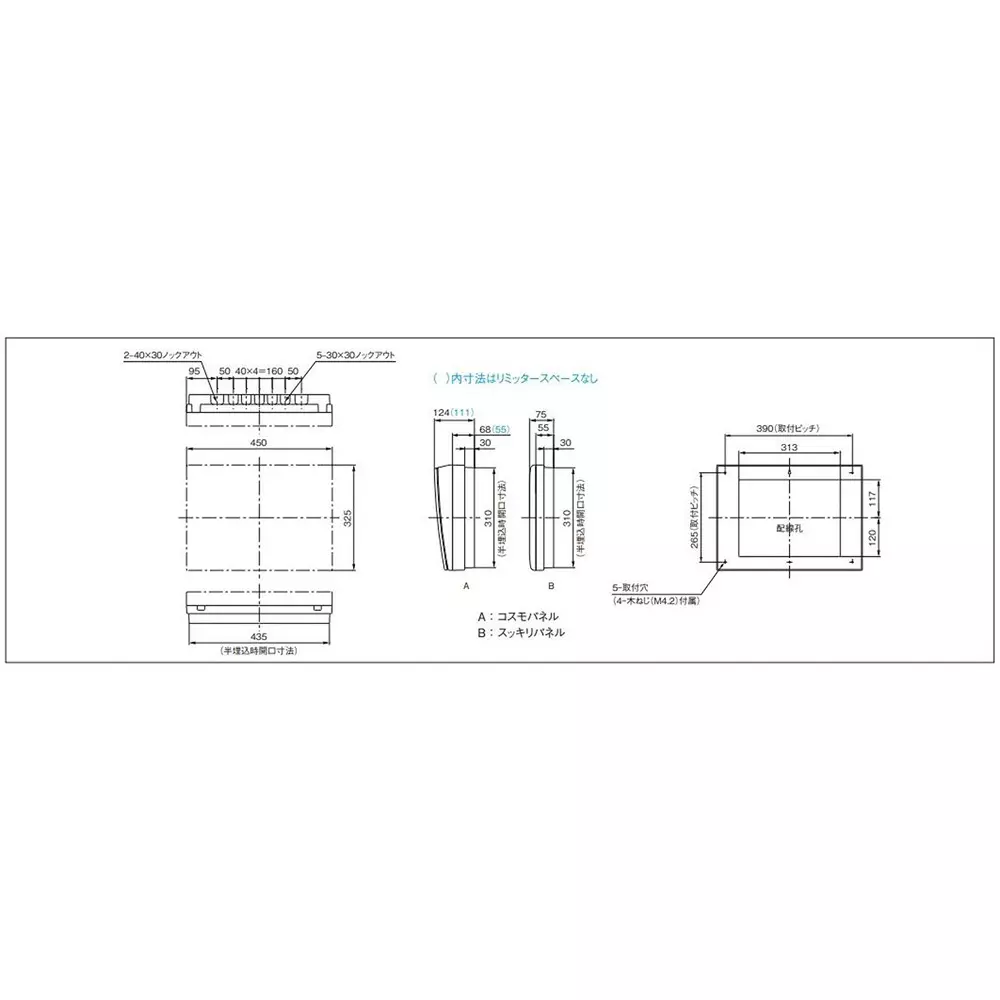

Semi-embedded dimensions (length x width x depth) (mm) |
310x435x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
