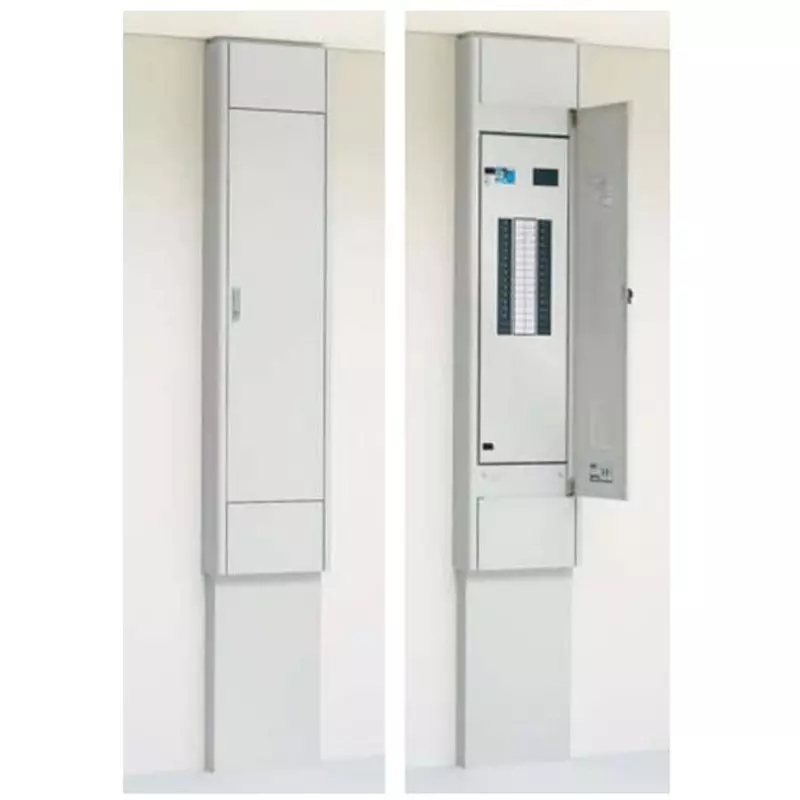

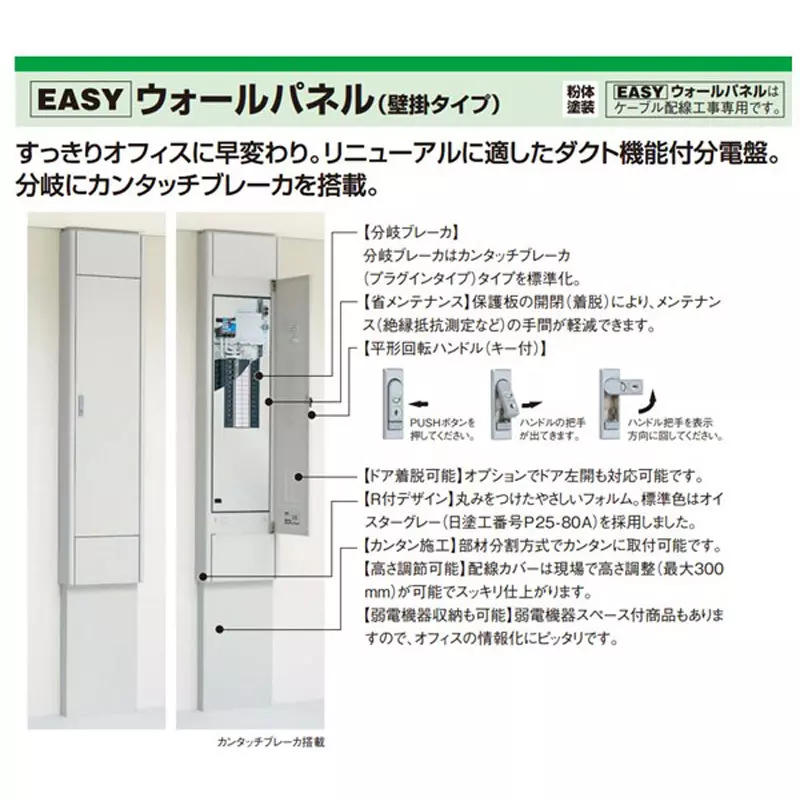

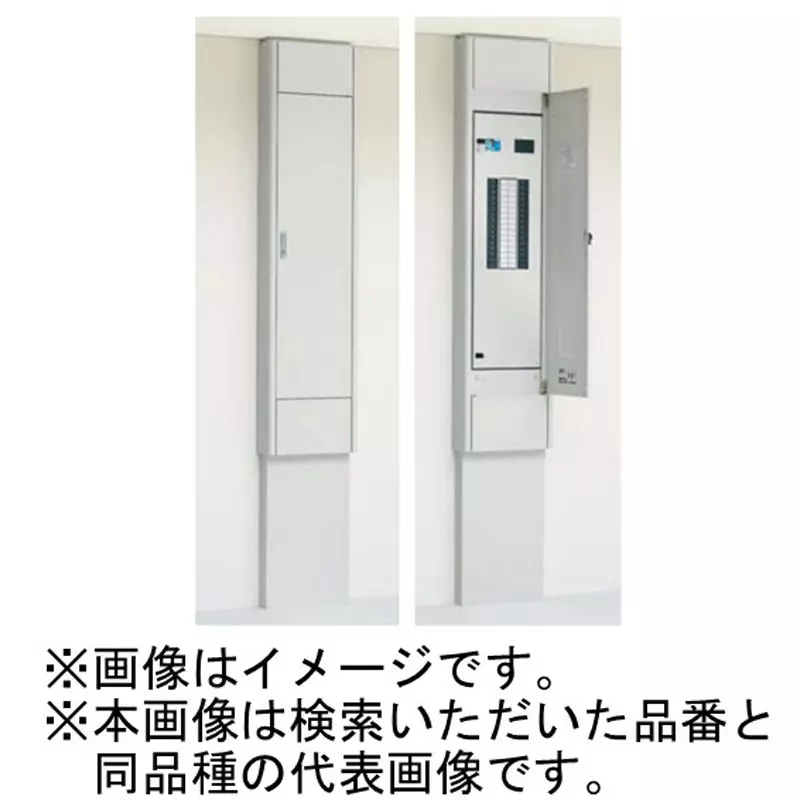

| Type | EASY Wall Panel Kantouch (for floor outlets and lighting loads) |
| Model No | BNWE2044SH |
| Type of Product | EASY Wall Panel |
| Country of Origin | Japan |
Type |
EASY Wall Panel Kantouch (for floor outlets and lighting loads) |
Model No |
BNWE2044SH |
Type of Product |
EASY Wall Panel |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
79738866 |
Import Country |
Direct Import from Japan |
No. of Circuits |
44 |
Circuit space |
4 |
Main capacity (A) |
225(200 Amp) |
Contents |
Easy-to-connect breaker (plug-in type) (MCB2P1E20A) (rated breaking capacity 5kA) |
Height (mm) |
[Ceiling] 2300-2600 (adjustable) |
Paint Color |
Oyster Gray (Japan Paint No. P25-80A, Munsell 5Y8/0.5 (reference value)) |
Mass (Kg) |
67 |
Lead |
Single-phase neutral line open-phase protection circuit breaker (BBWN type) |

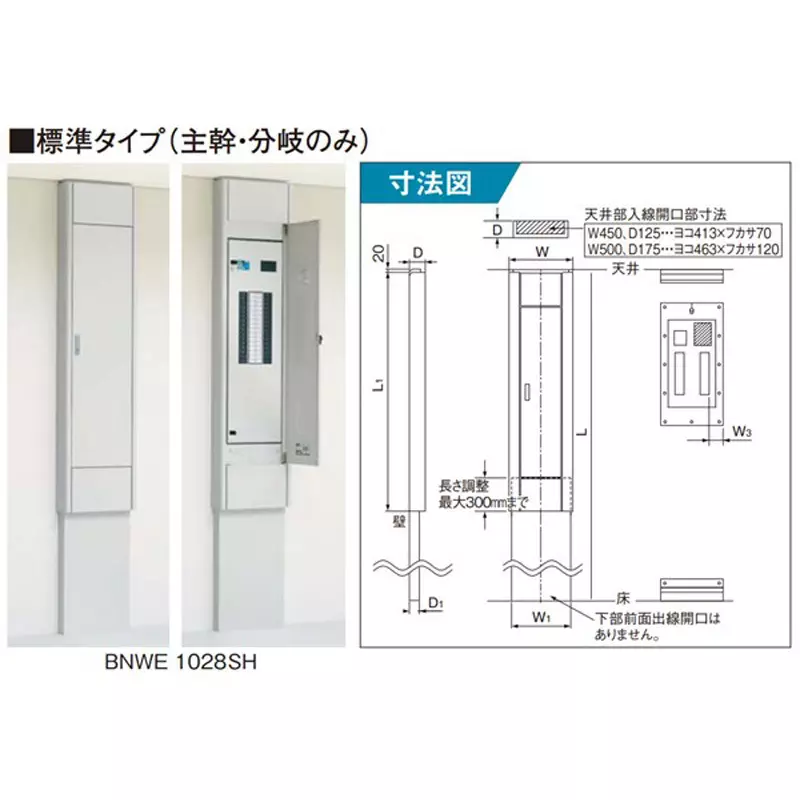

Dimension L1 |
1830 mm |
Dimension W1 (mm) |
470 |
Dimension L (mm) |
2300-2600 |
Dimension D1 (mm) |
125 |
Dimension d |
175 |
Dimension W |
500 |
