| Model No | BPB45715V |
| Protection Class | IP44 |
| Door | One Door |
| Type of Product | Panel Cabinet |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
BPB45715V |
Protection Class |
IP44 |
Door |
One Door |
Type of Product |
Panel Cabinet |
Country of Origin |
Japan |
Specifications |
(Door) With Waterproof Packing |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
38192235 |
Import Country |
Direct Import from Japan |
Depth (mm) |
120 |
Paint Color |
Mild white (Japan coating number: E22-90B, Munsell symbol: 2.5Y9 / 1 (reference value)) |
Handle |
Flat rotary handle (for outdoor use) |

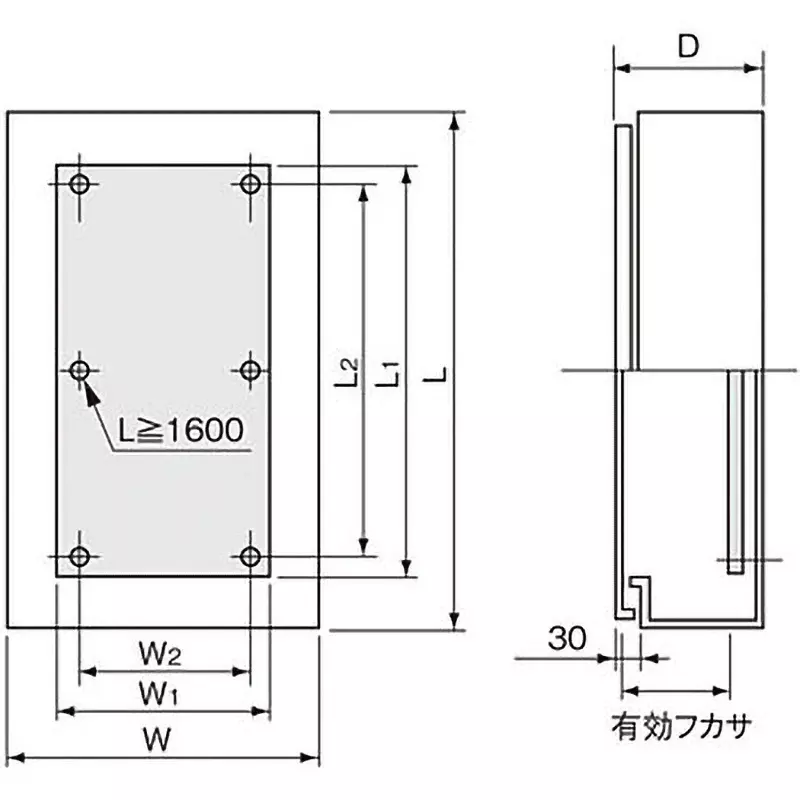

External Dimensions (width x depth x height) (mm) |
450x700x150 |
Wall Thickness (mm) |
(Box Door) 1.6 (Substrate) 15 |
Dimension W2 (mm) |
300 |
Dimension L2 |
550 mm |
Base Dimensions (mm) |
340x590 |
Material (Circuit Board) |
wooden |
Main Unit Material |
Steel plate |
