| Type | Home distribution board |
| Model No | BQE35303G |
| Shape | Both exposed and semi-embedded type |
| Color | White |
Type |
Home distribution board |
Model No |
BQE35303G |
Shape |
Both exposed and semi-embedded type |
Color |
White |
Application |
Hokkaido / Tohoku / Tokyo / Chubu / Hokuriku / Kyushu / Each power service area |
Door |
Attached |
Type of Product |
Residential Distribution Board |
Country of Origin |
Japan |
Material |
Plastic |
Width (mm) |
654 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
38205711 |
Import Country |
Direct Import from Japan |
Circuit space |
3 |
No. of Terminals |
12 |
Depth (mm) |
124 |
Breaker capacity |
50 Amp |
Height (mm) |
325 |

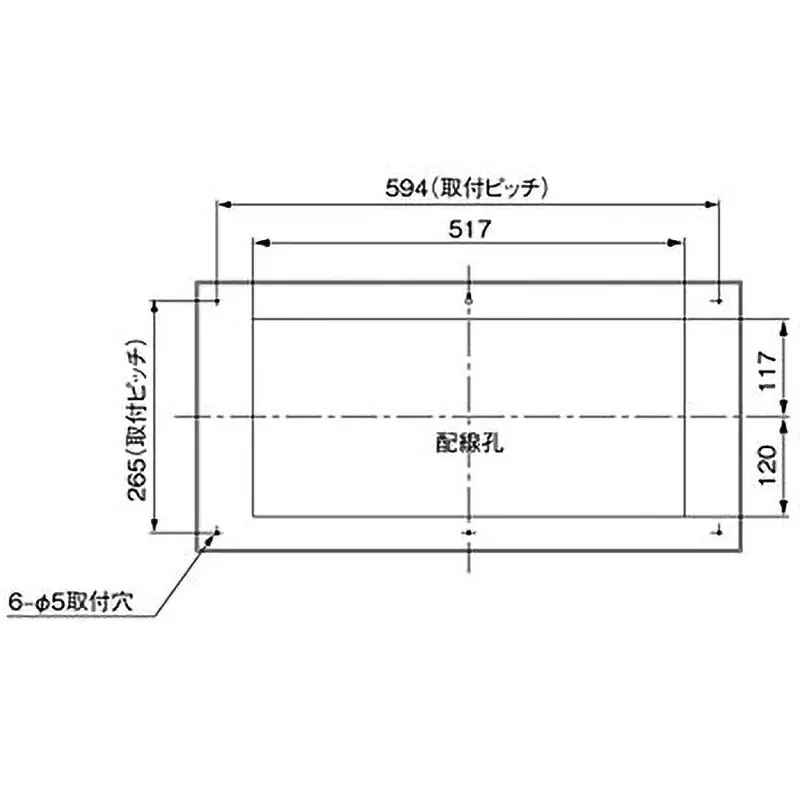

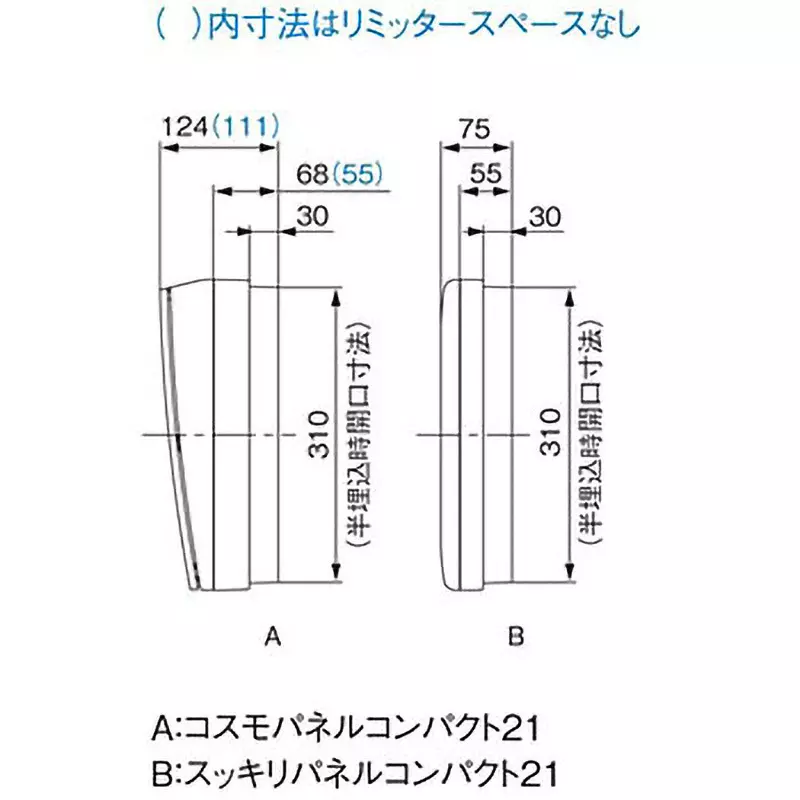

Semi-embedded dimensions (length x width x depth) (mm) |
310x639x30 |
Lead |
Earth leakage breaker with AA neutral line open phase protection [3P3E] |
Number of branch circuits |
30 |
branch circuit breaker capaity |
2P1E20A/2P2E20A |
Panel rating (A) |
100 |
Branch Circuit (2P2E) |
6 |
Circuit Breaker |
Earth leakage breaker |
Power generation method |
For gas power generation: Compact interconnection breaker, For fuel cell: Compact interconnection breaker |
