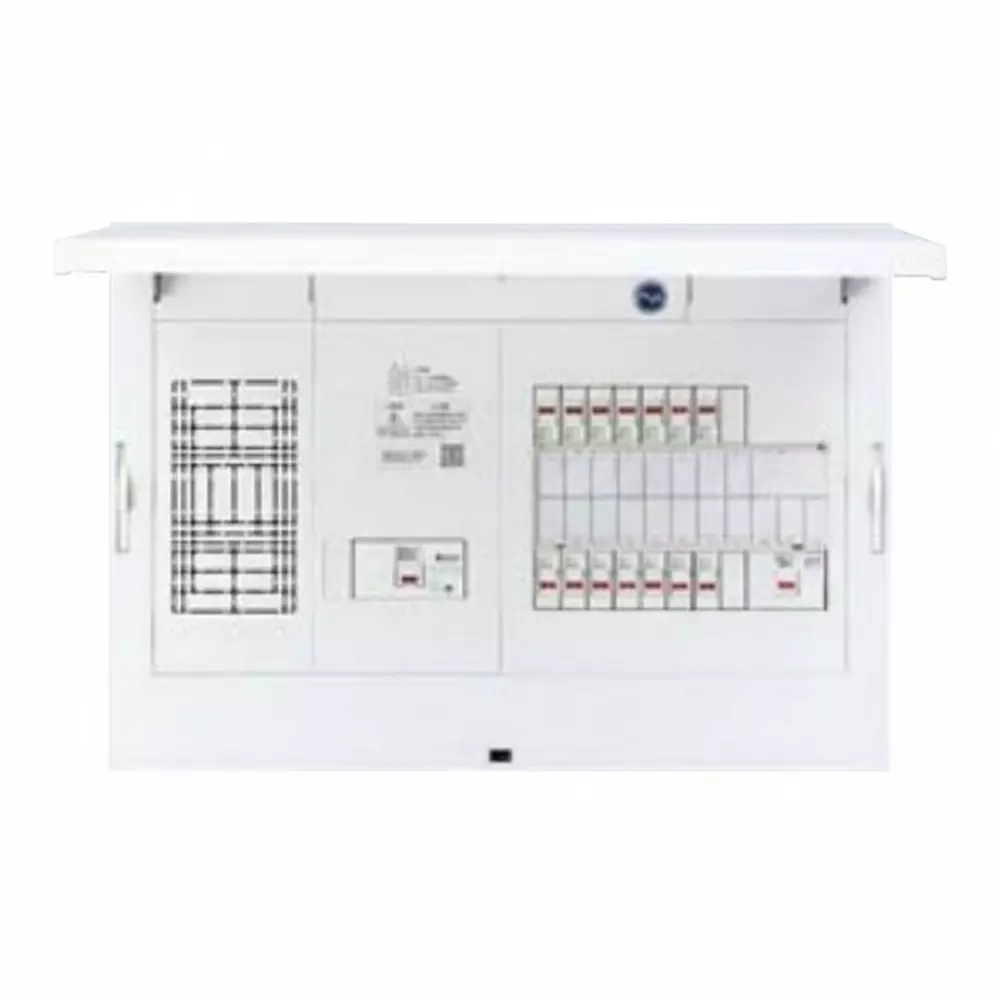

| Type | Residential Distribution Board |
| Model No | BDJL4142G |
| Series | FLEXIID |
| Color | White (Munsell symbol N9.3) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Residential Distribution Board |
Model No |
BDJL4142G |
Series |
FLEXIID |
Color |
White (Munsell symbol N9.3) |
Door |
Attached |
Type of Product |
Residential Distribution Panel |
Standard |
HP mark: Japan Wiring Systems Industry Association residential distribution board standard compliant product |
Country of Origin |
Japan |
Material |
Plastic |

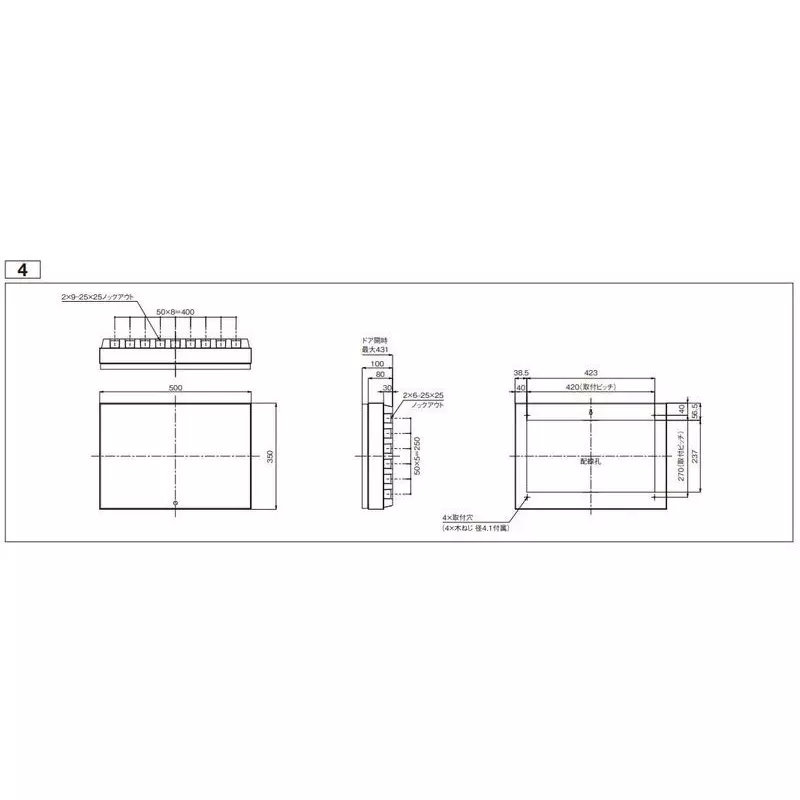

Width (mm) |
500 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Compatible with household fuel cell systems/gas power generation/hot water heating/cooling systems |
Monotaro ID |
15656509 |
Mounting |
Exposure type |
Import Country |
Direct Import from Japan |
Space |
Retraction Space: Included |
No. of Circuits |
14 |
Circuit space |
2 |
Main capacity (A) |
40 |
No. of Terminals |
12 |
Depth (mm) |
100 |
Contents |
(2P1E 20 Amp) ：10, (2P2E 20 Amp 100 V) ：4 |
Height (mm) |
350 |
Quantity |
One |
Chip Breaker |
Connection for private power generation: 20A |
