| Type | with Free Space |
| Model No | BHMF810301B3 |
| Color | White (Munsell symbol 10Y9/0.5) |

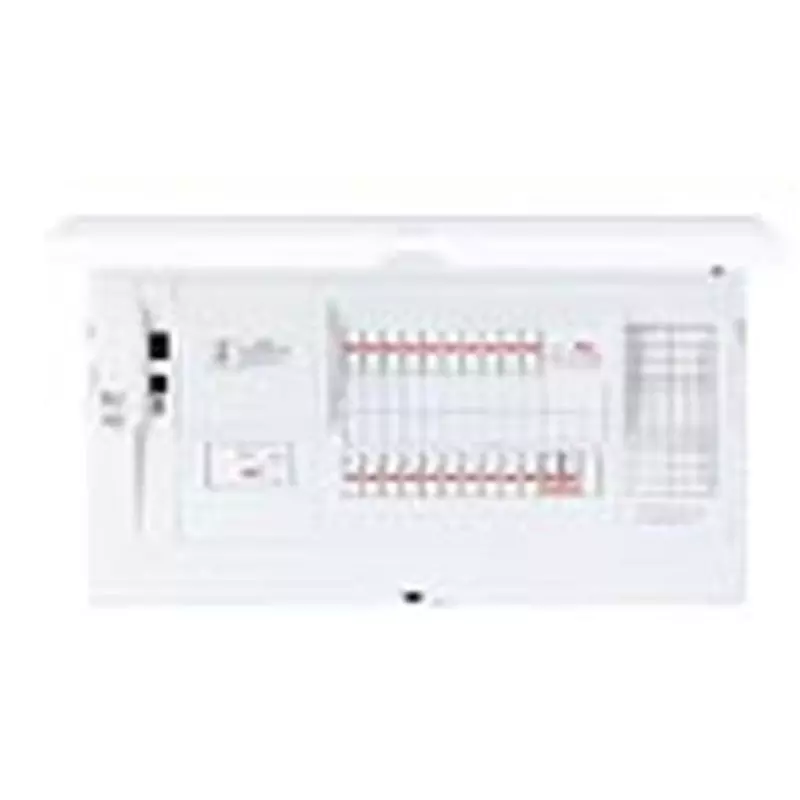

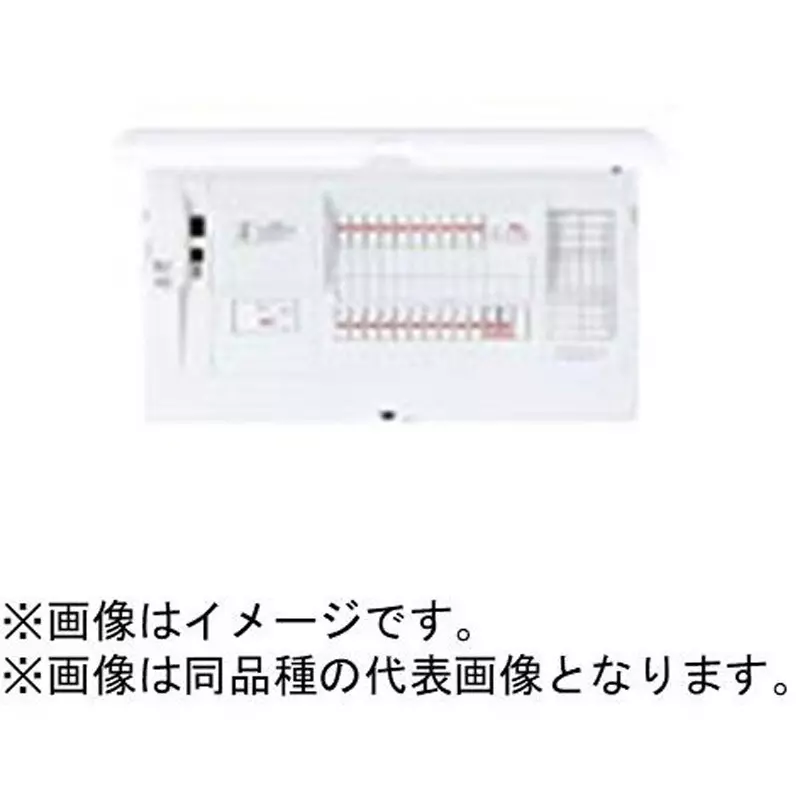

| Type of Product | Residential Distribution Panel |
Type |
with Free Space |
Model No |
BHMF810301B3 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Suitable For |
(Standards Conformity Certification) Product That Complies With Japan Wiring System Industry Association Residential Distribution Board Standards |
Specifications |
No Lead-In Method (Limiter Space), (Number Of Branch Current Sensors) 31 |
Breaking Capacity |
(Grid Connection) 30 Amp |

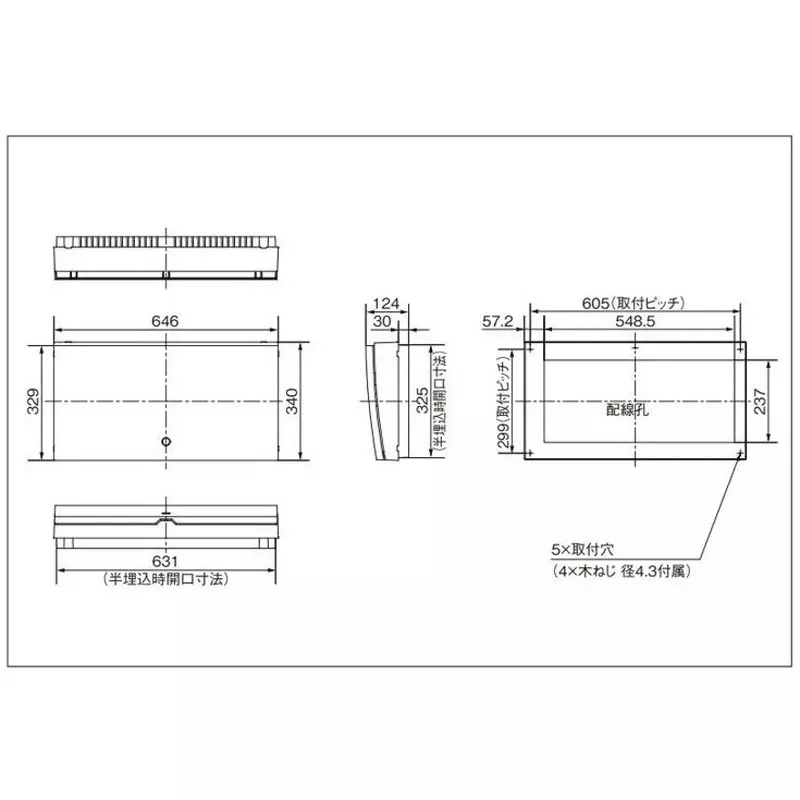

Width (mm) |
646 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
EcoCute/Electric water heater/IH compatible |
Monotaro ID |
51384727 |
Import Country |
Direct Import from Japan |
Used For |
EcoCute (branch type) |
No. of Circuits |
(Implementation) 30 |
Circuit space |
1 |
Main capacity (A) |
100 |
No. of Terminals |
12 (6 for 11 circuits) |
Depth (mm) |
124 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)22, (2P2E 20 Amp 100 V)6, (2P2E 30 Amp 200 V)2 |
Height (mm) |
340 |
Semi-embedded dimensions (length x width x depth) (mm) |
325x631x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
