| Type | with Free Space |
| Model No | BHMF87421B2 |
| Color | White (Munsell symbol 10Y9/0.5) |

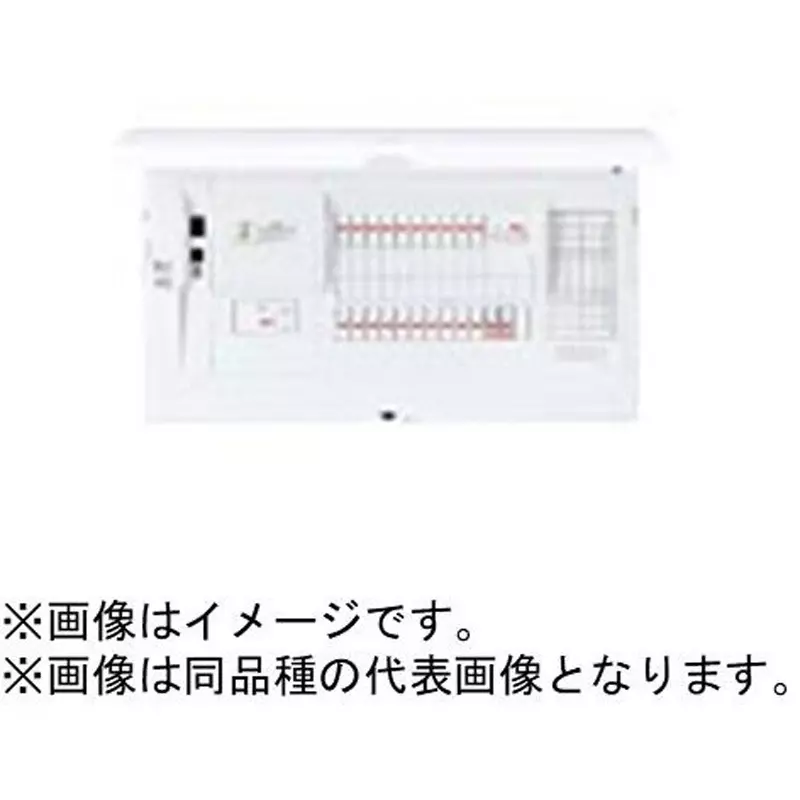

| Type of Product | Residential Distribution Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
with Free Space |
Model No |
BHMF87421B2 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 43, No Lead-In Method (Limiter Space) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Ecocute/IH compatible |
Monotaro ID |
51390187 |
Import Country |
Direct Import from Japan |
No. of Circuits |
Implementation: 42 |
Circuit space |
1 |
Main capacity (A) |
75 |
No. of Terminals |
12 (6 for 11 circuits) |
Contents |
(2P1E 20 Amp)32, (2P2E 20 Amp 100 V)8, (2P2E 20 Amp 200 V)1, (2P2E 30 Amp 200 V)1 |
Chip Breaker |
For IH cooking heater: 30A, connection for EcoCute: 20A (branch type) |
Structure |
With Door, Both Exposed And Semi-Recessed Type |

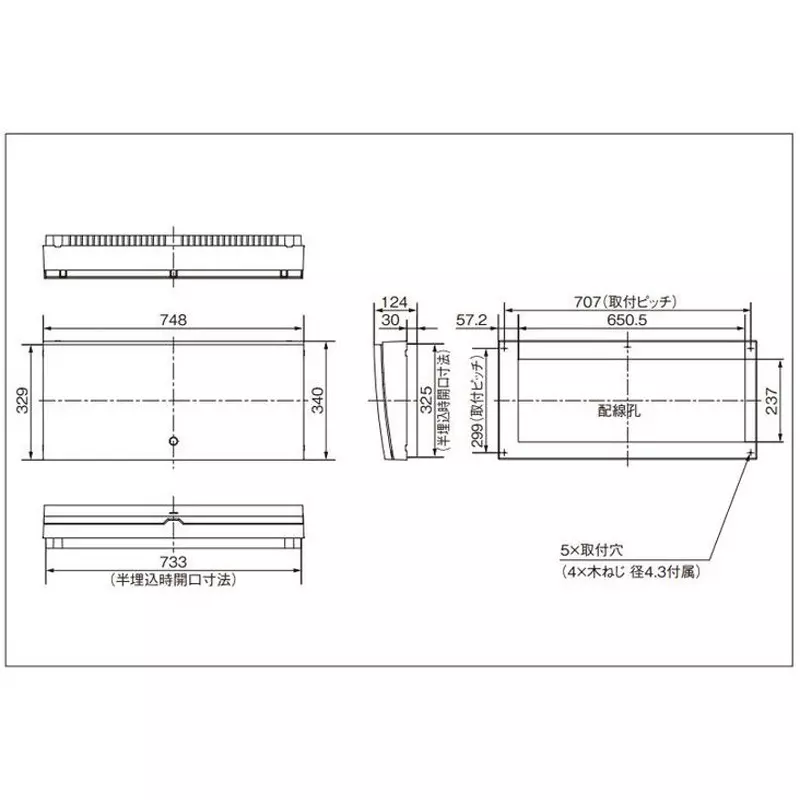

Dimensions WxDxH (mm) |
340x748x124, (semi-embedded) 325x733x30 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
