Ships within 25 days
View
View
View
View
| Type | Standard Type |
| Model No | BHR810421B2 |
| Color | White (Munsell symbol 10Y9/0.5) |

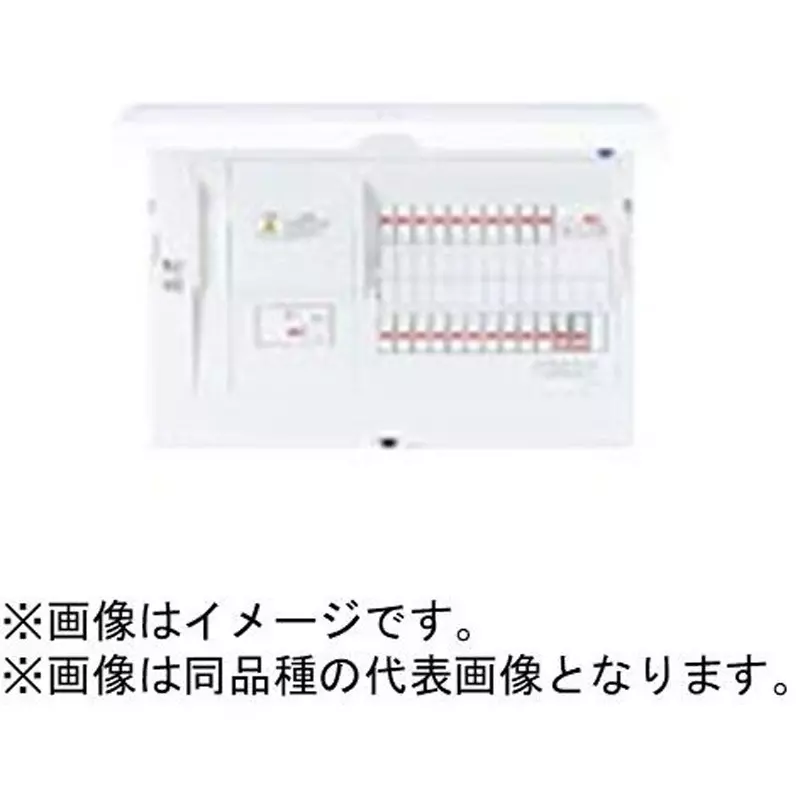

| Type of Product | Residential Distribution Panel |
Type |
Standard Type |
Model No |
BHR810421B2 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 43, No Lead-In Method (Limiter Space) |
Breaking Capacity |
(Grid Connection) 20 Amp |
Width (mm) |
646 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Ecocute/IH compatible |
Monotaro ID |
51393924 |
Import Country |
Direct Import from Japan |
Used For |
EcoCute (branch type) |
No. of Circuits |
(Implementation)42 |
Circuit space |
1 |
Main capacity (A) |
100 |
No. of Terminals |
12 (6 for 11 circuits) |
Depth (mm) |
124 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)32, (2P2E 20 Amp 100 V)8, (2P2E 20 Amp 200 V)1, (2P2E 30 Amp 200 V)1 |
Height (mm) |
340 |

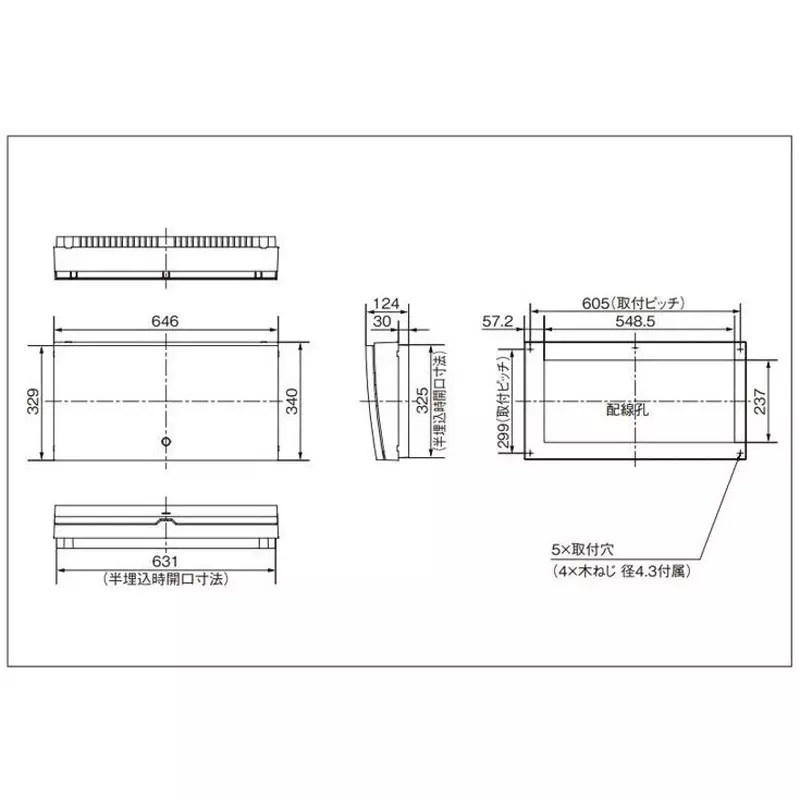

Semi-embedded dimensions (length x width x depth) (mm) |
325x631x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
