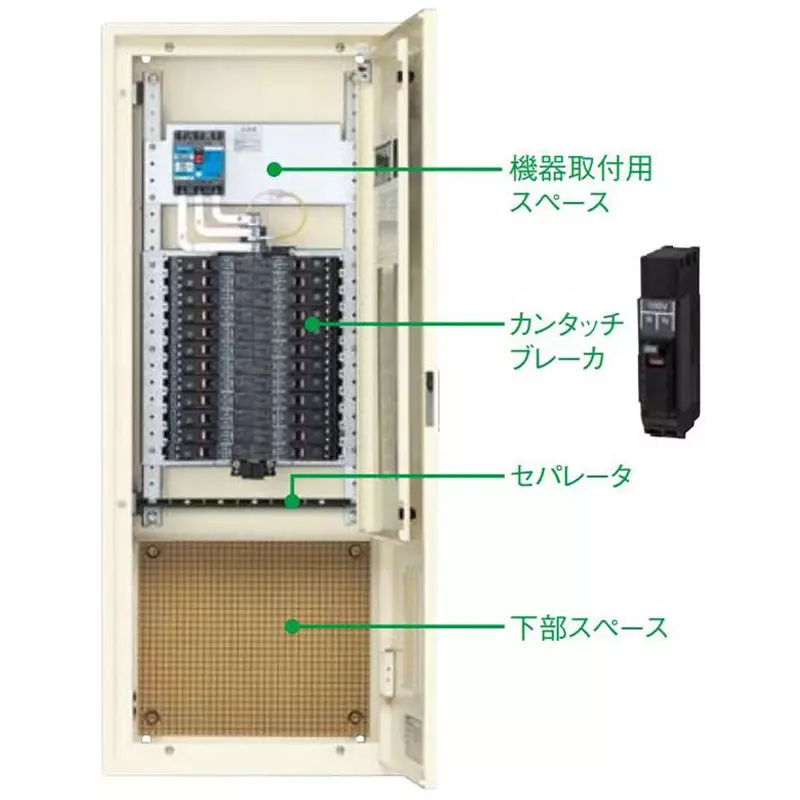

| Type | Cantatch Arrow Panel Lighting Distribution Panel |
| Model No | BN1048S3RH |
| Shape | Exposure type |
| Protection Class | IP2XD |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Cantatch Arrow Panel Lighting Distribution Panel |
Model No |
BN1048S3RH |
Shape |
Exposure type |
Protection Class |
IP2XD |
Type of Product |
Cantatch Arrow Panel |
Country of Origin |
Japan |
Width (mm) |
500 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
79747336 |
Import Country |
Direct Import from Japan |
No. of Circuits |
48 |
Circuit space |
0 |
Main capacity (A) |
100 AF(100 Amp) |
Depth (mm) |
175 |
Height (mm) |
1400 |
Paint Color |
Mild White (Japan Paint Company Number P22-90B/Munsell Symbol 2.5Y9/1 (Reference Value)) |
Cabinet |
BON51417VK |
Mass (Kg) |
61 |
Lead |
Single-phase circuit breaker with neutral phase loss protection (N-phase loss MCB 3P) |
