Ships within 25 days
View
View
View
View
| Type | Advanced |
| Model No | BQE86143C3 |
| Color | White (Munsell symbol 10Y9/0.5) |

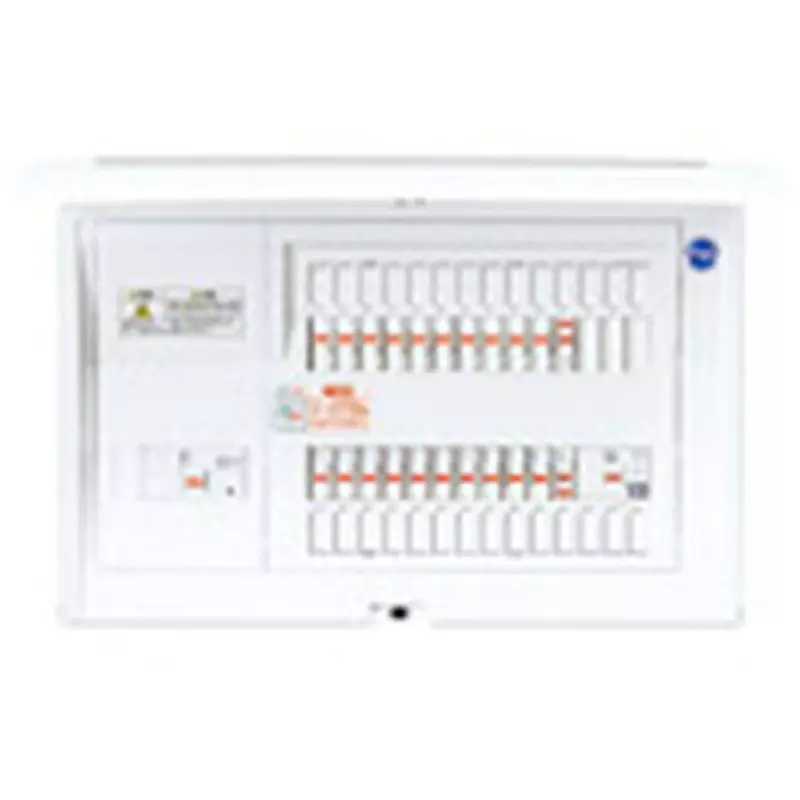

| Type of Product | Cosmo Panel |
Type |
Advanced |
Model No |
BQE86143C3 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Suitable For |
(Standards Conformity Certification) Product That Complies With Japan Wiring System Industry Association Residential Distribution Board Standards |
Specifications |
No retraction method (limiter space) |
Breaking Capacity |
For electric water heater: 30A |
Width (mm) |
382 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Solar Power Generation System, Ecocute, Electric Water Heater, Ih Compatible |
Monotaro ID |
51380694 |
Import Country |
Direct Import from Japan |
Used For |
EcoCute (branch type) |
No. of Circuits |
(Implementation) 14 |
Circuit space |
3 |
Main capacity (A) |
60 |
No. of Terminals |
12 (6 for 13 circuits or less) |
Depth (mm) |
124 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)6, (2P2E 20 Amp 100 V)2, (2P2E 30 Amp 200 V)2 |
Height (mm) |
340 |

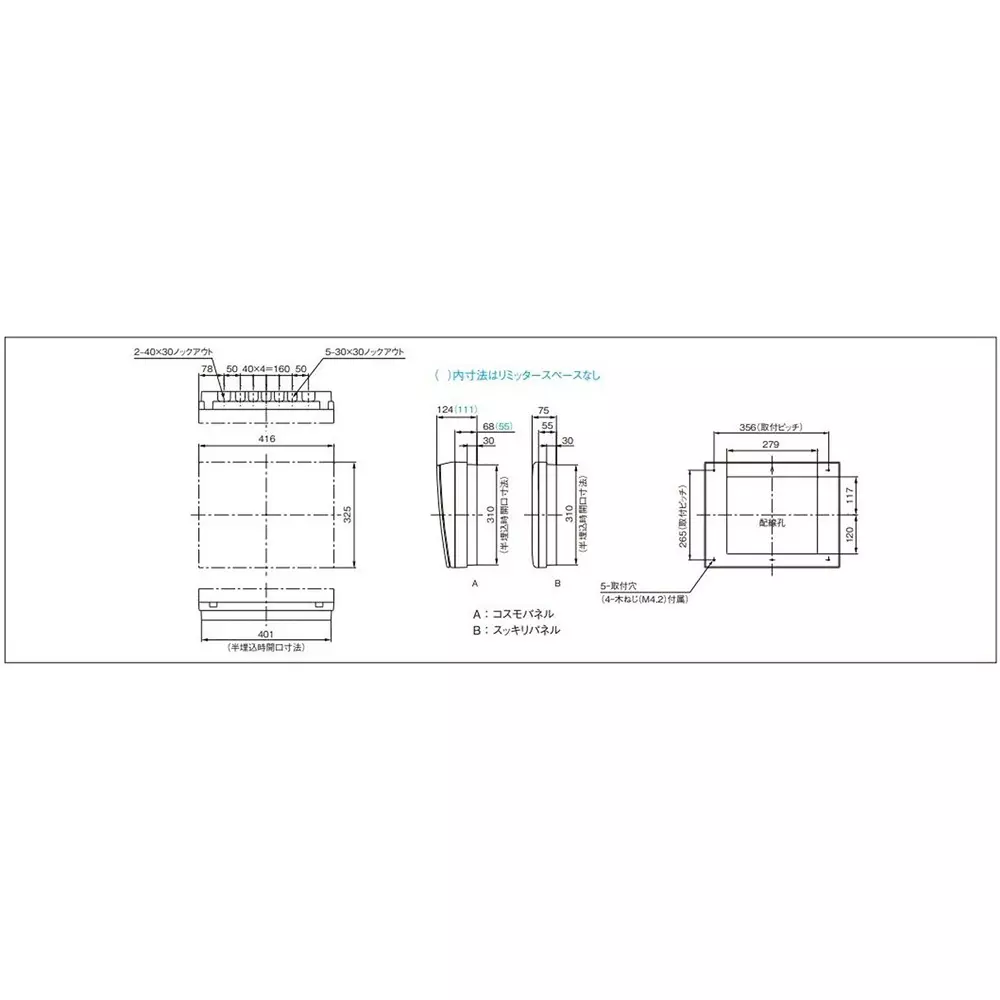

Semi-embedded dimensions (length x width x depth) (mm) |
325x367x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
