| Type | Home distribution board |
| Model No | BQE351421 |
| Shape | Both exposed and semi-embedded type |
| Color | White |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Home distribution board |
Model No |
BQE351421 |
Shape |
Both exposed and semi-embedded type |
Color |
White |
Application |
Hokkaido / Tohoku / Tokyo / Chubu / Hokuriku / Kyushu / Each power service area |
Door |
Attached |
Type of Product |
Residential Distribution Board |
Country of Origin |
Japan |
Material |
Plastic |

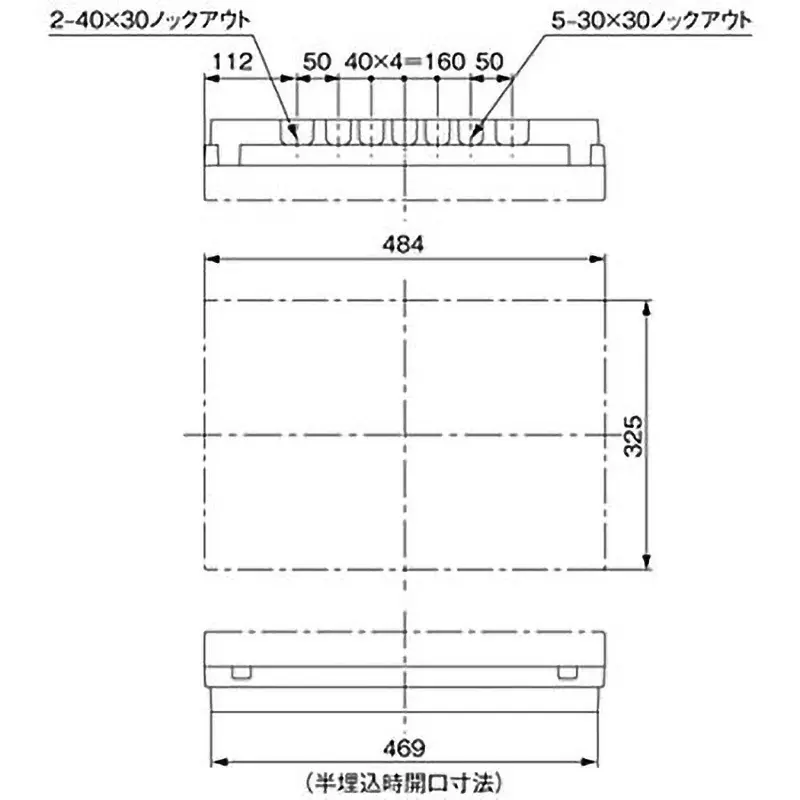

Width (mm) |
484 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
38206804 |
Import Country |
Direct Import from Japan |
No. of Circuits |
Primary Feed: 1 |
Circuit space |
2 |
No. of Terminals |
12 |
Depth (mm) |
124 |
Breaker capacity |
50 Amp |
Height (mm) |
325 |

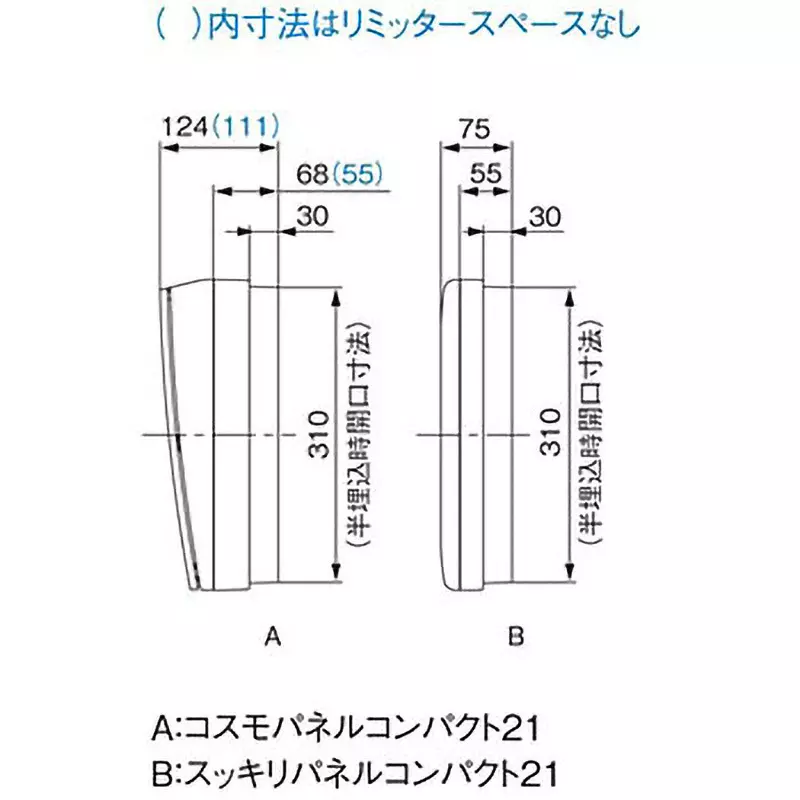

Semi-embedded dimensions (length x width x depth) (mm) |
310x469x30 |
Lead |
AA circuit breaker with neutral wire phase loss protection |
Number of branch circuits |
14 |
branch circuit breaker capaity |
2P1E20A/2P2E20A |
Panel rating (A) |
100 |
Branch Circuit (2P2E) |
4 |
Circuit Breaker |
Earth leakage breaker |
