| Type | Standard Type |
| Model No | BHM85162E |
| Color | White (Munsell symbol 10Y9/0.5) |
| Type of Product | Residential Distribution Panel |
Type |
Standard Type |
Model No |
BHM85162E |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 19, No Lead-In Method (Limiter Space) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Kaminari Anshin Ban (With Lighting Function)/Equipped With Lightning Arrester And Security Light |
Monotaro ID |
51392427 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 16 |
Circuit space |
2 |
Main capacity (A) |
50 |
No. of Terminals |
12 |
Contents |
(2P1E 20 Amp)12, (2P2E 20 Amp 100 V)4 |

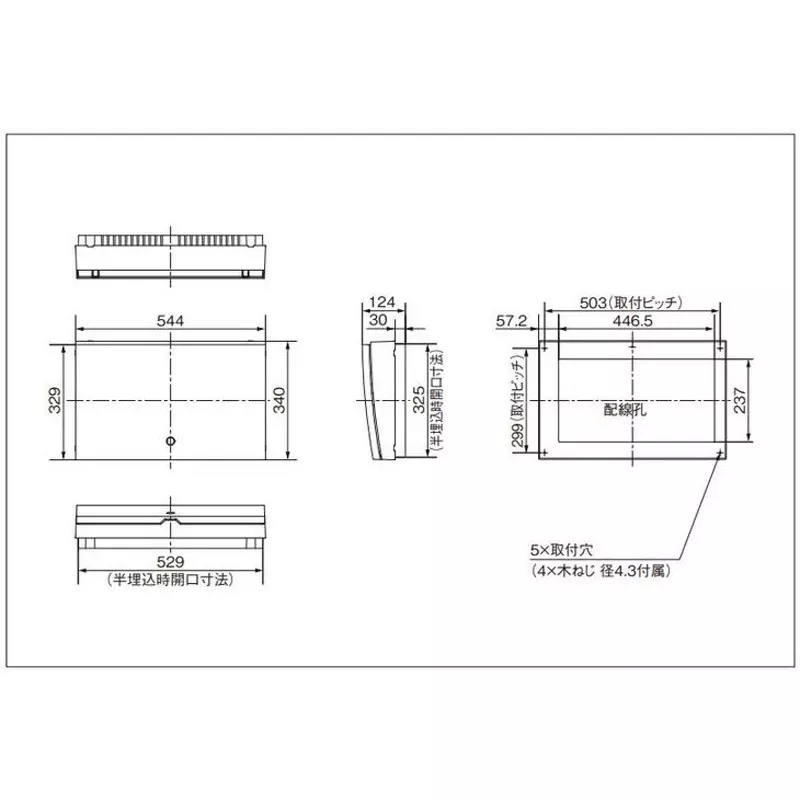

Semi-embedded dimensions (length x width x depth) (mm) |
325x529x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Dimensions WxDxH (mm) |
340x544x124 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board High Performance Standard Compliant Product |
