| Type | Standard Type |
| Model No | BHM86382B2E4 |
| Color | White (Munsell symbol 10Y9/0.5) |

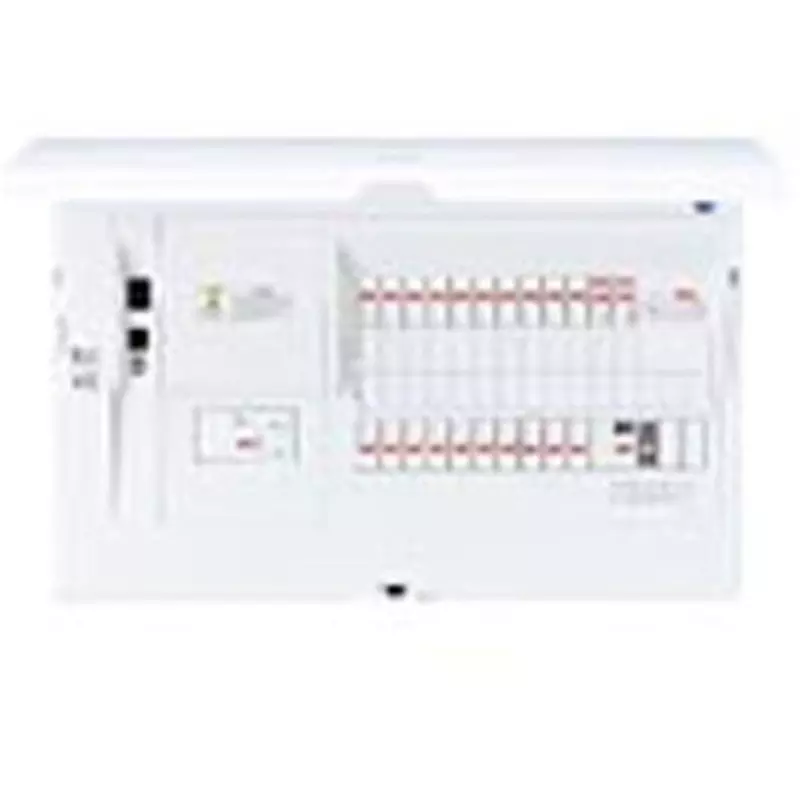

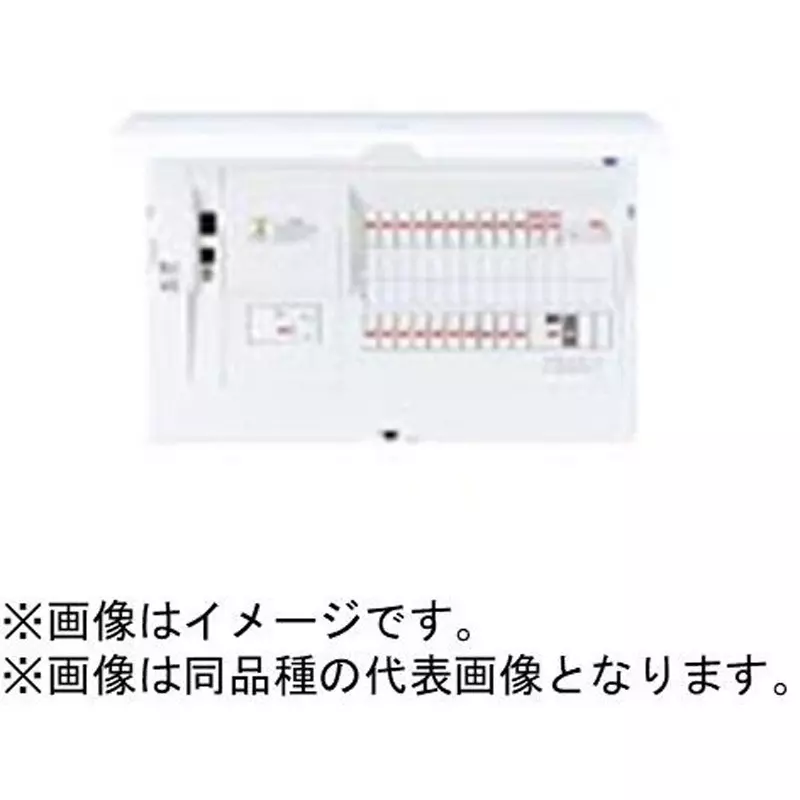

| Type of Product | Residential Distribution Panel |
Type |
Standard Type |
Model No |
BHM86382B2E4 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 43, No Lead-In Method (Limiter Space) |
Breaking Capacity |
(Cooperation) 20A |
Width (mm) |
646 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
EV/PHEV charging circuit/Ecocute/IH compatible |
Monotaro ID |
51393310 |
Import Country |
Direct Import from Japan |
Used For |
EcoCute (branch type) |
No. of Circuits |
(Implementation)38 |
Circuit space |
2 |
Main capacity (A) |
60 |
No. of Terminals |
12 |
Depth (mm) |
124 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)28, (2P2E 20 Amp 100 V)8, (2P2E 20 Amp 200 V)1, (2P2E 30 Amp 200 V)1, (ELB 2P2E 20 Amp 15m Amp 200 V)1 |
Height (mm) |
340 |
Chip Breaker |
EV/PHEV charging circuit compatible: 40A |

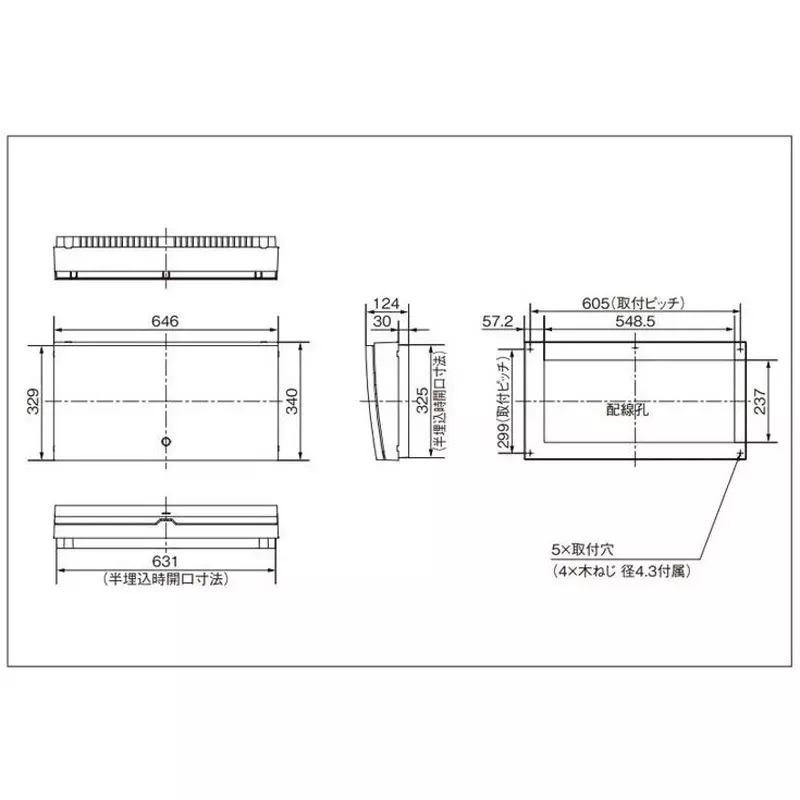

Semi-embedded dimensions (length x width x depth) (mm) |
325x631x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
