Ships within 25 days
View
View
View
View
| Type | Standard Type |
| Model No | BHM87282Z |
| Color | White (Munsell symbol 10Y9/0.5) |

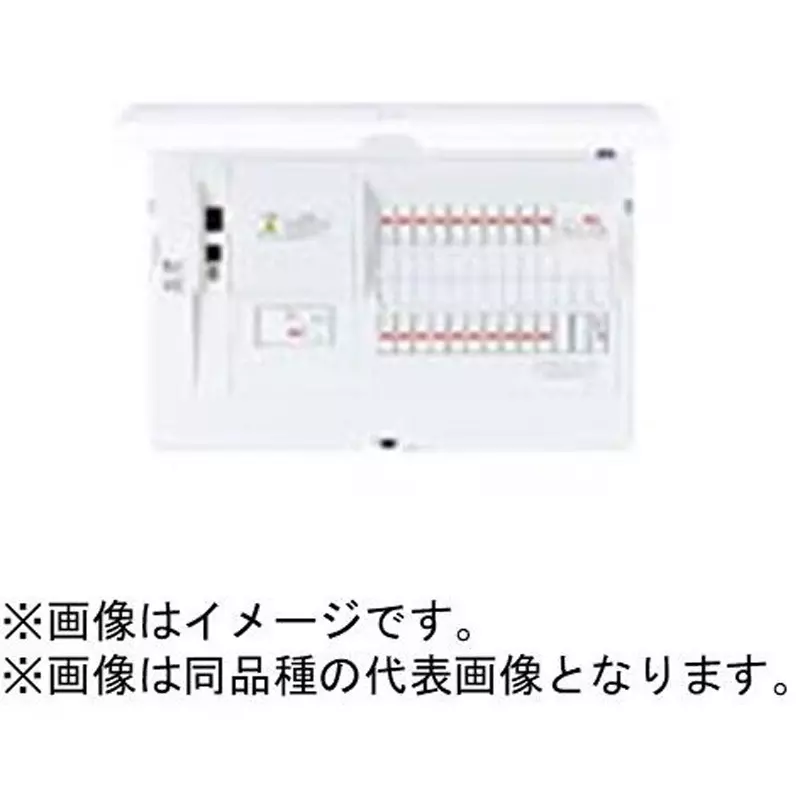

| Type of Product | Residential Distribution Panel |
Type |
Standard Type |
Model No |
BHM87282Z |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 31, No Lead-In Method (Limiter Space) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Earthquake safety ban/Equipped with a seismic breaker |
Monotaro ID |
51388376 |
Import Country |
Direct Import from Japan |
No. of Circuits |
Implementation: 28 |
Circuit space |
2 |
Main capacity (A) |
75 |
No. of Terminals |
12 |
Contents |
(2P1E 20 Amp)22, (2P2E 20 Amp 100 V)6 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |

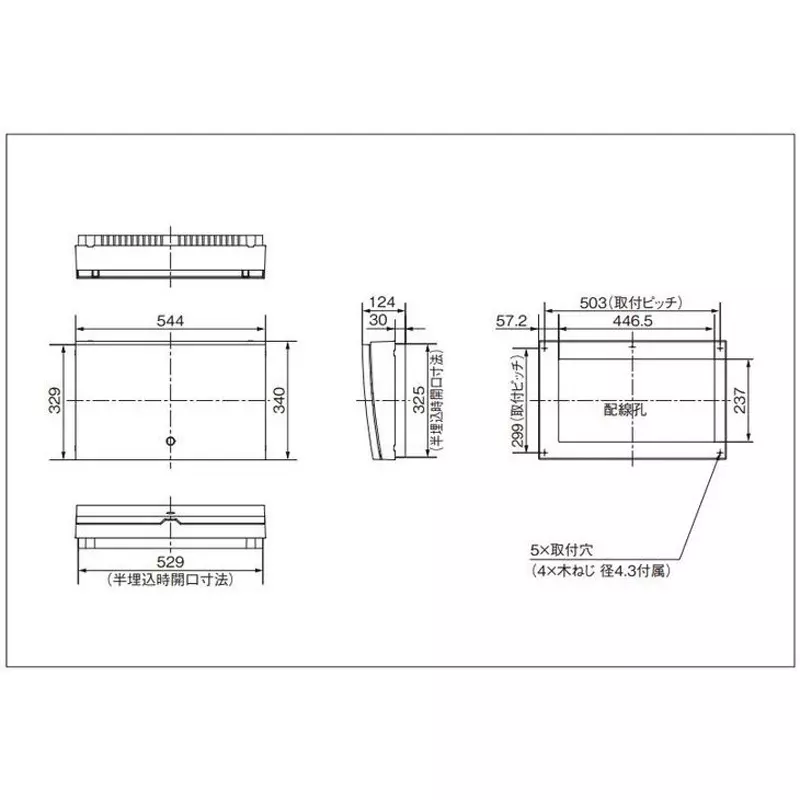

Dimensions WxDxH (mm) |
340x544x124, (semi-embedded) 325x529x30 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board High Performance Standard Compliant Product |
