| Type | with Free Space |
| Model No | BHMF35181 |
| Color | White (Munsell symbol 10Y9/0.5) |

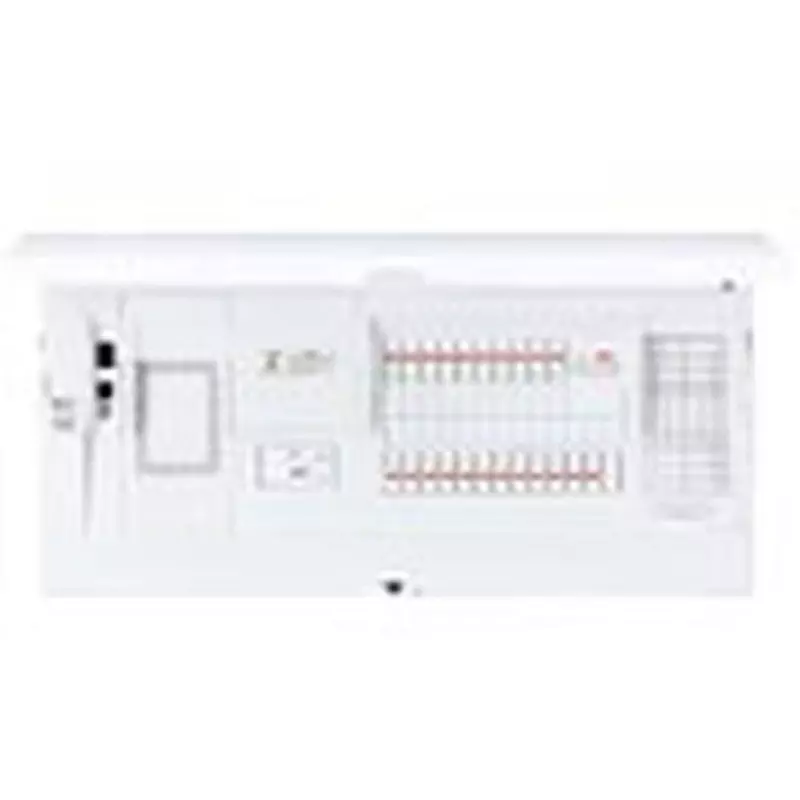

| Type of Product | Residential Distribution Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
with Free Space |
Model No |
BHMF35181 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 19, With Retraction Method (Limiter Space) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Standard Type |
Monotaro ID |
51390555 |
Import Country |
Direct Import from Japan |
No. of Circuits |
Implementation: 18 |
Circuit space |
1 |
Main capacity (A) |
50 |
No. of Terminals |
12 (6 for 11 circuits) |
Contents |
(2P1E 20 Amp)14, (2P2E 20 Amp 100 V)4 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |

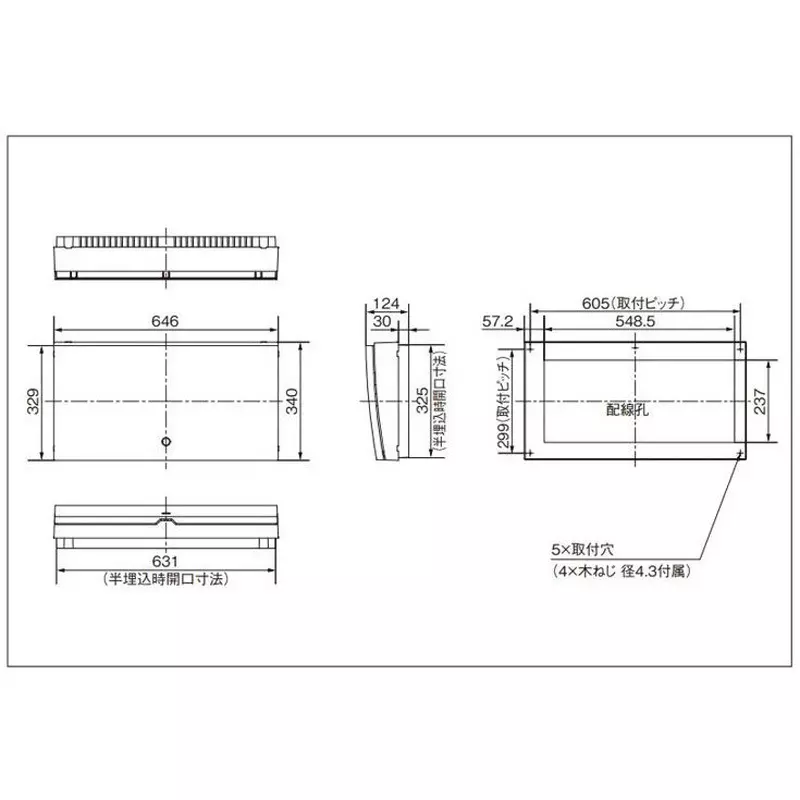

Dimensions WxDxH (mm) |
340x646x124, (semi-embedded) 325x665x30 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
