| Type | with Free Space |
| Model No | BHMF87261B2 |
| Color | White (Munsell symbol 10Y9/0.5) |

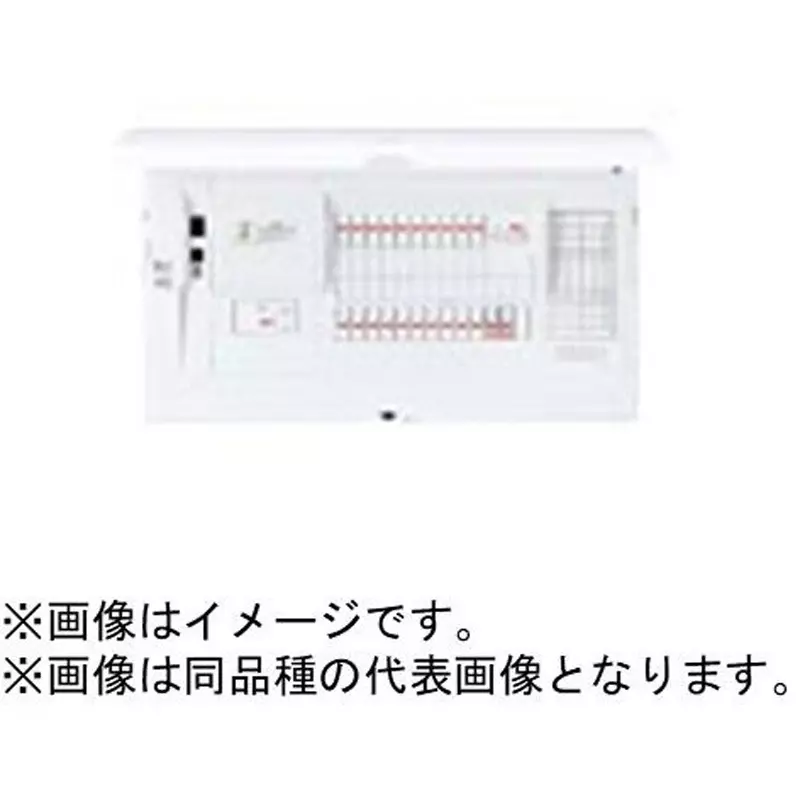

| Type of Product | Residential Distribution Panel |
Type |
with Free Space |
Model No |
BHMF87261B2 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 27, No Lead-In Method (Limiter Space) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Ecocute/IH compatible |
Monotaro ID |
51391824 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 26 |
Circuit space |
1 |
Main capacity (A) |
75 |
No. of Terminals |
12 (6 for 11 circuits) |
Contents |
(2P1E 20 Amp)18, (2P2E 20 Amp 100 V)6, (2P2E 20 Amp 200 V)1, (2P2E 30 Amp 200 V)1 |
Chip Breaker |
For IH cooking heater: 30A, for EcoCute (branch type): 20A |

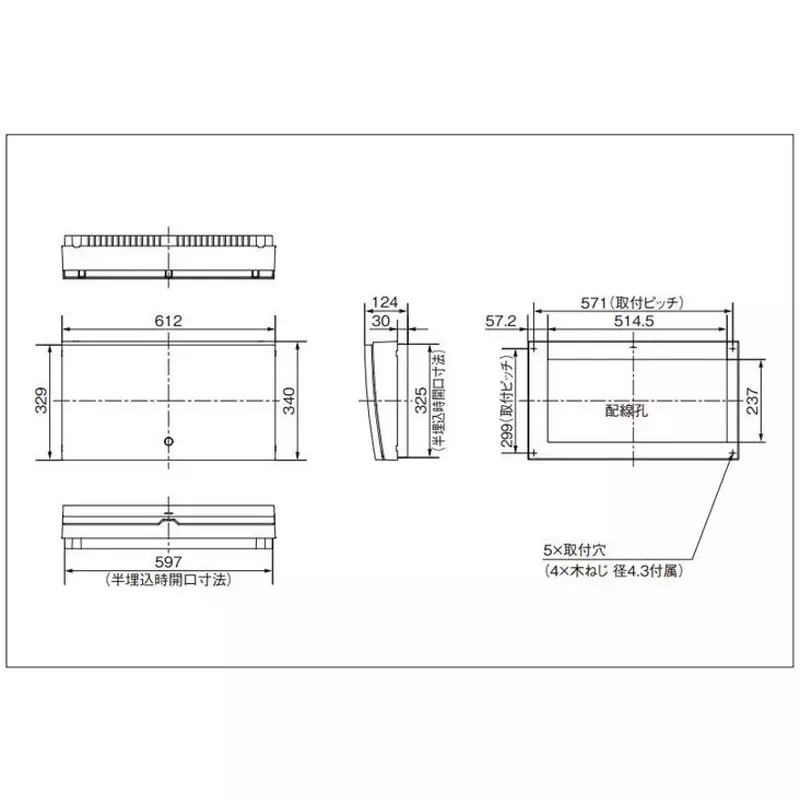

Semi-embedded dimensions (length x width x depth) (mm) |
325x597x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Dimensions WxDxH (mm) |
340x612x124 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
