| Type | High Functionality + Free Space Included |
| Model No | BQEF87342B3 |
| Color | White (Munsell symbol 10Y9/0.5) |

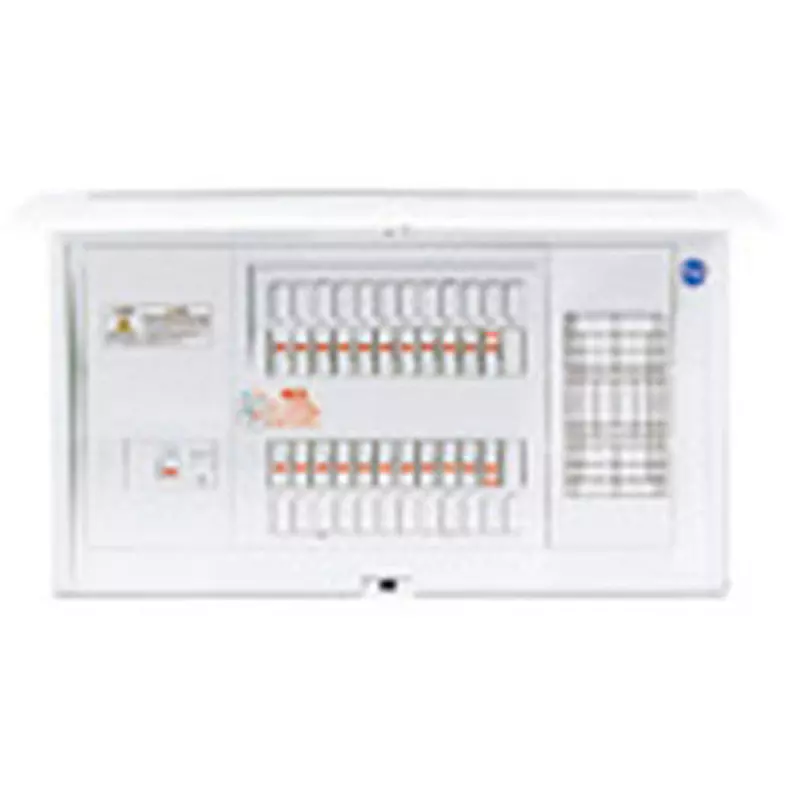

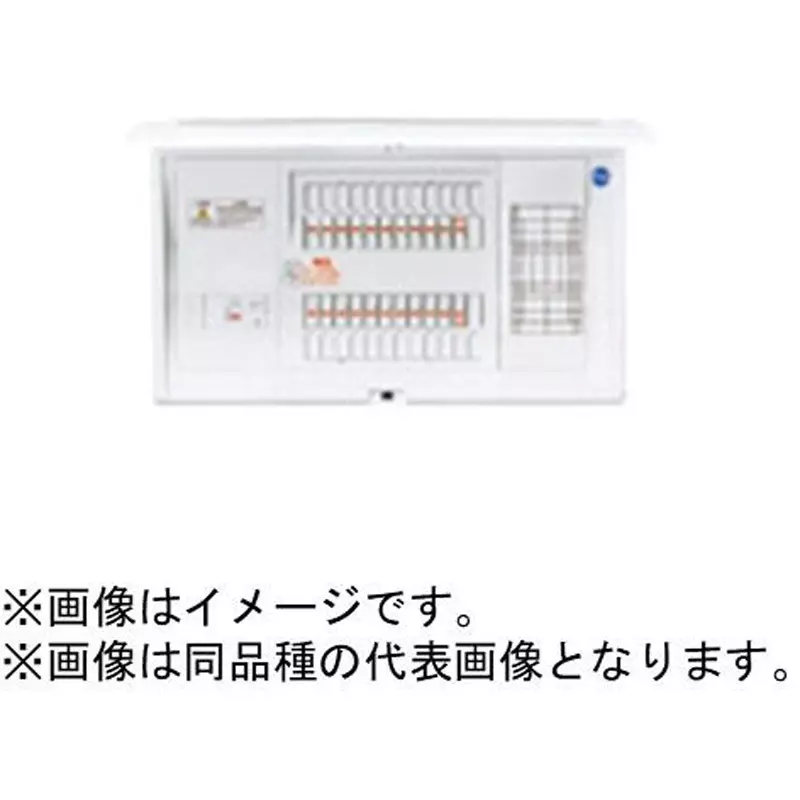

| Type of Product | Cosmo Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
High Functionality + Free Space Included |
Model No |
BQEF87342B3 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Suitable For |
(Standards Conformity Certification) Product That Complies With Japan Wiring System Industry Association Residential Distribution Board Standards |
Specifications |
No retraction method (limiter space) |
Breaking Capacity |
For electric water heater: 30A |
Width (mm) |
654 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
EcoCute/Electric water heater/IH compatible |
Monotaro ID |
51380037 |
Import Country |
Direct Import from Japan |
Used For |
EcoCute (branch type) |
No. of Circuits |
(Implementation) 34 |
Circuit space |
2 |
Main capacity (A) |
75 |
No. of Terminals |
12 (6 for 12 circuits or less) |
Depth (mm) |
111 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)26, (2P2E 20 Amp 100 V)6, (2P2E 30 Amp 200 V)2 |
Height (mm) |
325 |

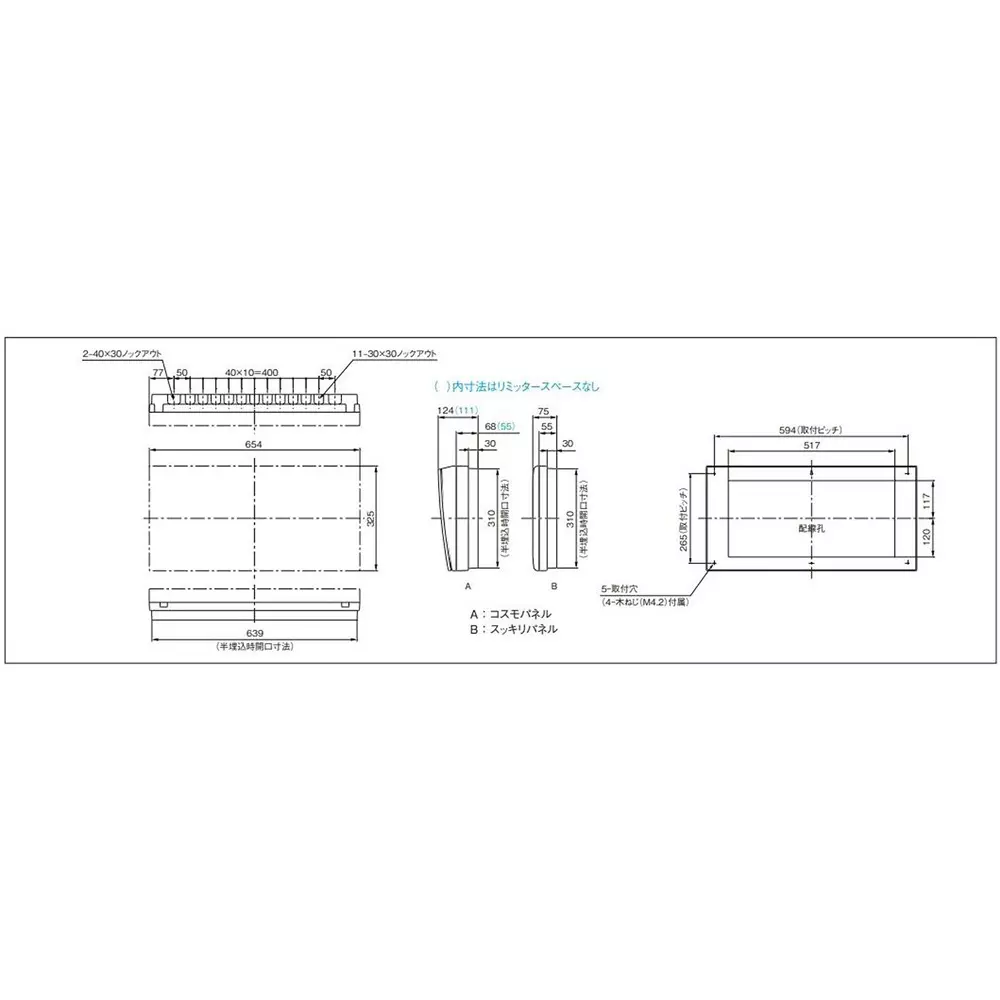

Semi-embedded dimensions (length x width x depth) (mm) |
310x639x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
