| Model No | BOG808VW |
| Protection Class | IP44 |

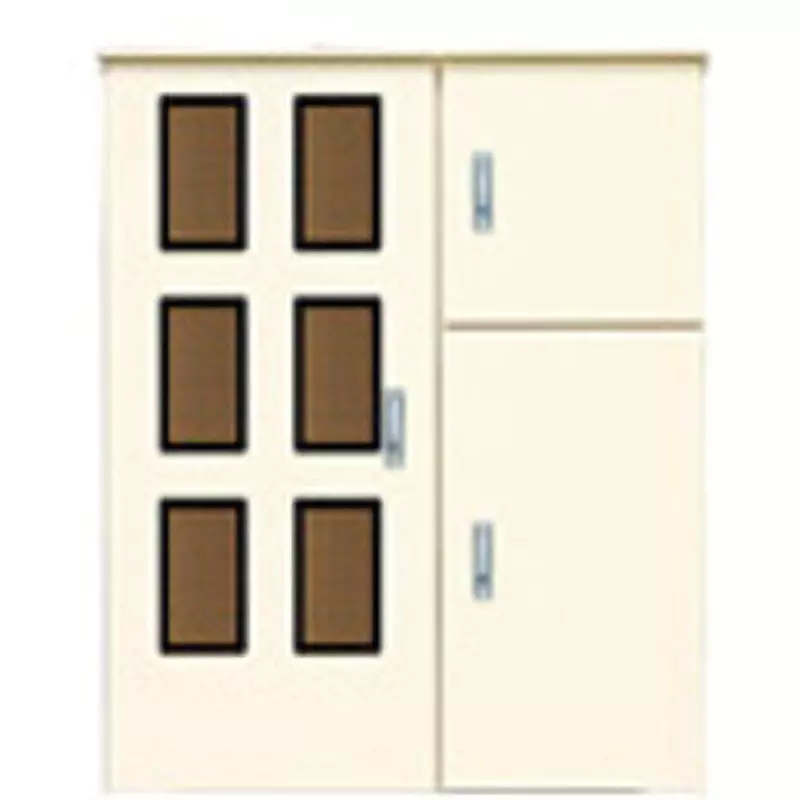

| Type of Product | Accumulator Panel Cabinet |
| Country of Origin | Japan |
Model No |
BOG808VW |
Protection Class |
IP44 |
Type of Product |
Accumulator Panel Cabinet |
Country of Origin |
Japan |
Material |
(Metering window) synthetic resin, (substrate) wooden, (box / door) steel plate |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
73432056 |
Import Country |
Direct Import from Japan |
Space |
(Whm Space) 30 Ampx8, (Main Space) 200 Ampx1, (Branch Space) 30 Ampx8 |
Paint Color |
Mild white (Japan coating number H22-90B, Munsell symbol 2.5Y9 / 1 (reference value)) |
Handle |
Flat rotary handle (outdoor type) |
External Dimensions (width x depth x height) (mm) |
900x1400x200 |
Dimension L3 (mm) |
390 |
Wall Thickness (mm) |
(Float Plate Glass) 3, (Substrate) Whm Part: 25, Master / Branch Part: 15, (Box / Door) 1.6 |
Dimension L1 |
500 mm |
Dimension W2 (mm) |
400 |
Dimension W1 (mm) |
500 |
Dimension W3 (mm) |
400 |
Dimension W4 (mm) |
290 |
Dimension L2 |
1290 mm |
Dimension L4 |
790 mm |
