| Type | Signals: Start Signal, Channel Signal, Load Control Signal, Monitor Signal, End Signal |
| Model No | WRT55049W |

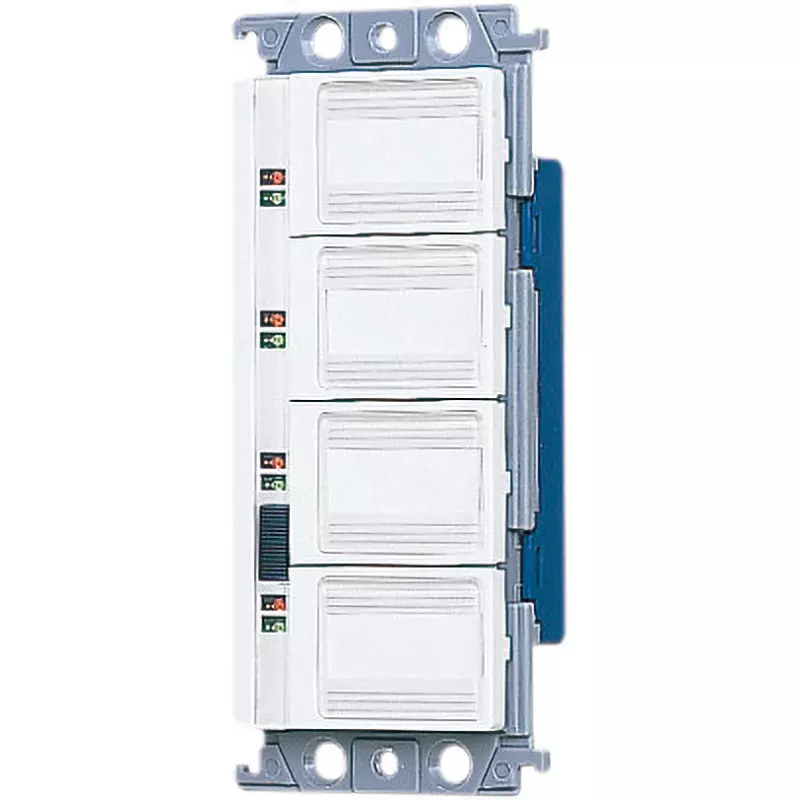

| Type of Product | Residential Distribution Board |
| Country of Origin | Japan |
Type |
Signals: Start Signal, Channel Signal, Load Control Signal, Monitor Signal, End Signal |
Model No |
WRT55049W |
Type of Product |
Residential Distribution Board |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
65361005 |
Import Country |
Direct Import from Japan |
Current Consumption (mA) |
Signal: 12 |
Connectable Wire (mm2) |
0.75 to 2 (stranded wire) [full 2-wire signal line side] |
Wiring Connections |
Signal: 2-Wire Non-Polarized |
voltage rating (V) |
Range: ±20 to ±30 (signal) |
Wire Diameter |
0.65 to 1.6 Φmm (full 2-wire signal line side) |
Electrical Life (10,000 Times) |
3 Or More |
Transmission Method |
Signal: Interrupt Type Time Division Multiplexing |
No. of Switches |
4 |
Frequency (kHz) |
Signal Output: 10±1 |
Temperature Rise |
Outer Part: 10℃ Or Less |
Rated Input Voltage (V) |
Signal: ±24 |
Operation Ambient Temperature (°C) |
-10-40 |
