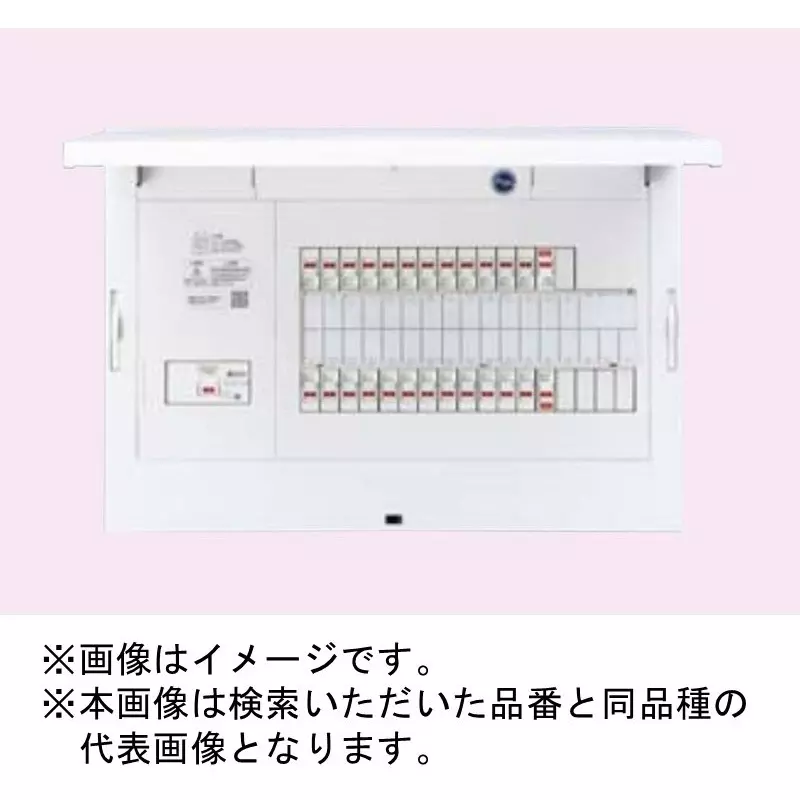

| Type | Residential Distribution Board |
| Model No | BDD10185B3 |
| Series | FLEXIID |
| Color | White (Munsell symbol N9.3) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Residential Distribution Board |
Model No |
BDD10185B3 |
Series |
FLEXIID |
Color |
White (Munsell symbol N9.3) |
Door |
Attached |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Breaking Capacity |
For EcoCute and electric water heaters: 30A |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
EcoCute, electric water heater, induction compatible |
Monotaro ID |
15649317 |
Import Country |
Direct Import from Japan |
Certification Mark |
HP mark Japan Wiring System Industry Association residential distribution board standard compliant product |
Used For |
EcoCute (branch type) |
Space |
None |
No. of Circuits |
18 |
Circuit space |
5 |
Main capacity (A) |
100 |
No. of Terminals |
12 |

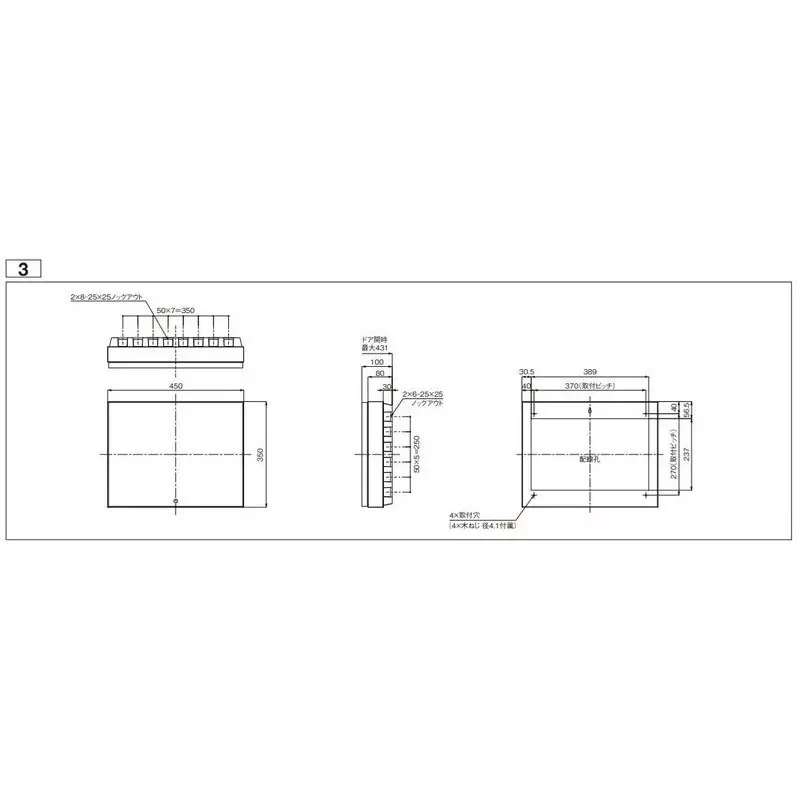

Depth (mm) |
100 |
Next to Dimensions (mm) |
450 |
Type of Sign |
Exposure type |
Breaker capacity |
30 Amp |
Length (mm) |
350 |
No. of Branches |
(2P1E 20 Amp) 12 (2P2E 20 Amp 100 V) 4 (2P2E 30 Amp 200 V) 2 |
