| Type | with Large Free Space |
| Model No | BHMD86141 |
| Color | White |
| Type of Product | Residential Distribution Panel |
Type |
with Large Free Space |
Model No |
BHMD86141 |
Color |
White |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
Multi-communication type, standard, with free space, no lead-in method (limiter space), (number of branch current sensors) 15 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Standard Type |
Monotaro ID |
51383668 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 14 |
Circuit space |
1 |
Main capacity (A) |
60 |
No. of Terminals |
12 (6 for 11 circuits) |
Contents |
(2P1E 20 Amp)10, (2P2E 20 Amp 100 V)4 |

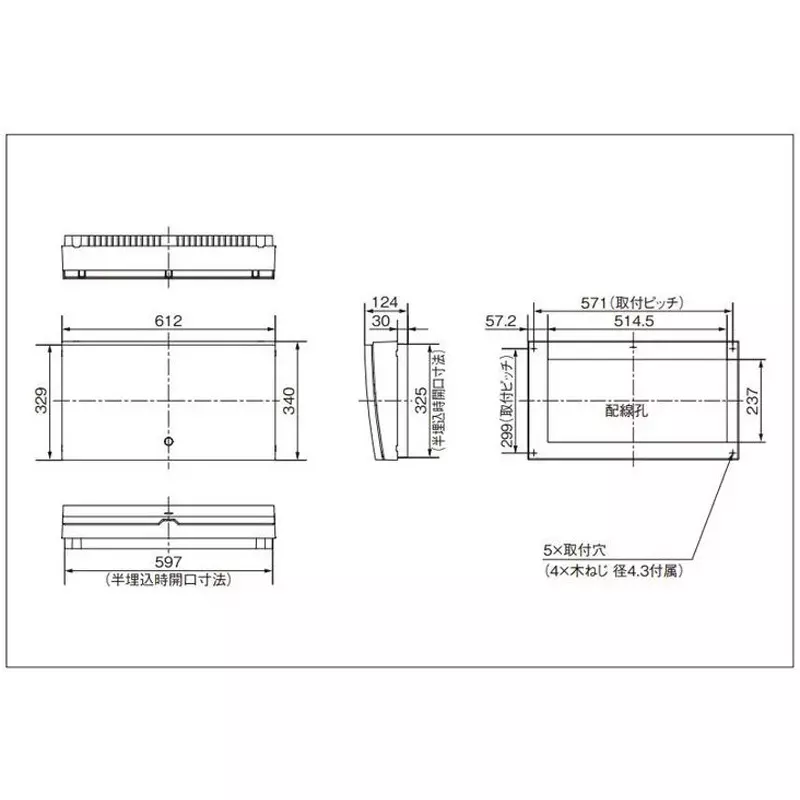

Semi-embedded dimensions (length x width x depth) (mm) |
325x597x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Dimensions WxDxH (mm) |
340x612x124 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
munsell value |
10Y9/0.5 |
