Ships within 25 days
View
View
View
View
| Type | Standard Type |
| Model No | BHR36141 |
| Color | White (Munsell symbol 10Y9/0.5) |

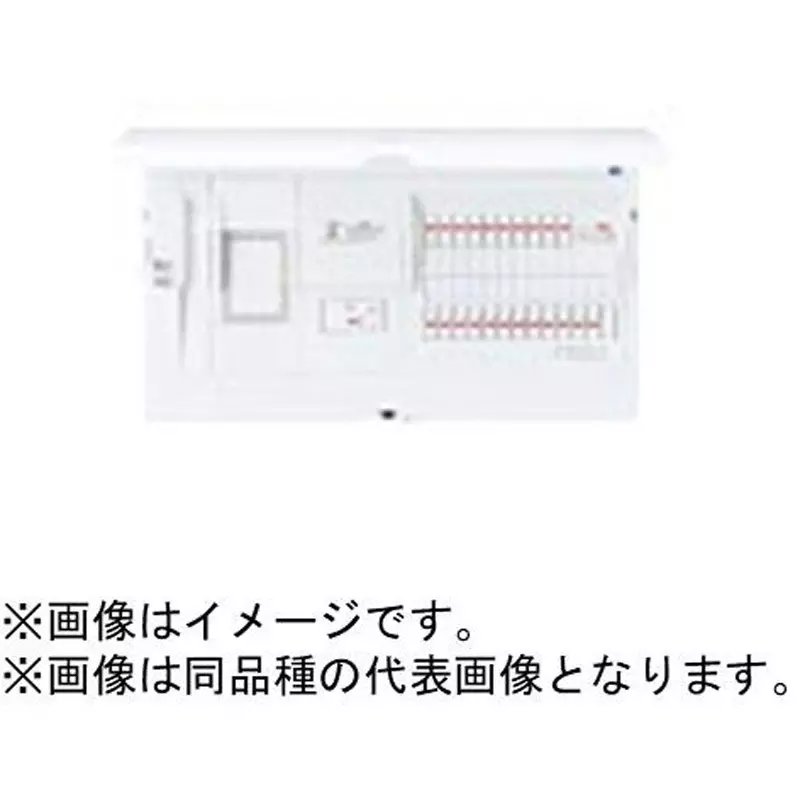

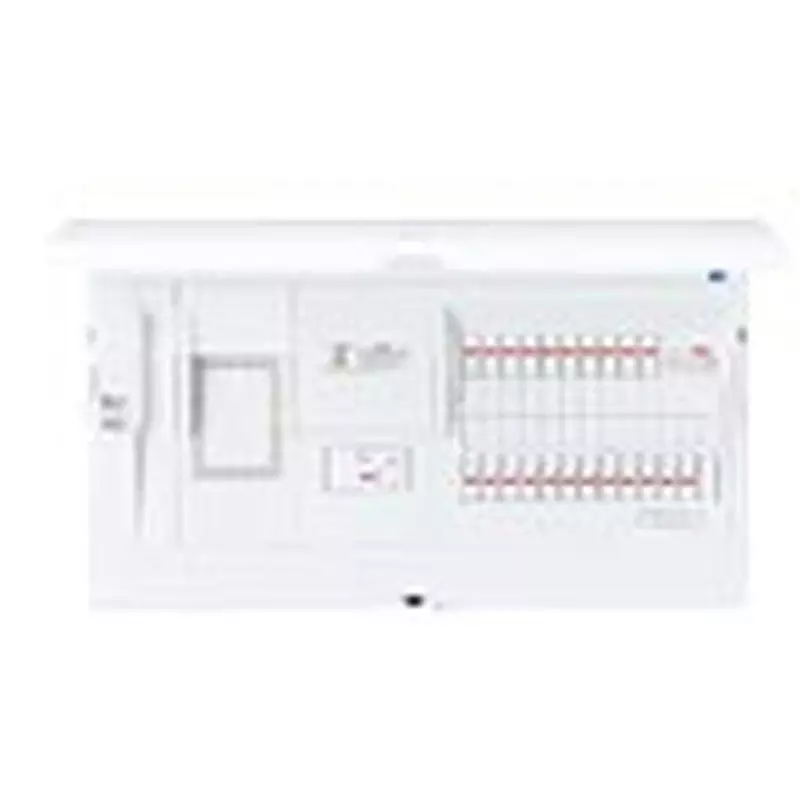

| Type of Product | Residential Distribution Panel |
Type |
Standard Type |
Model No |
BHR36141 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
With Lead-In Method (Limiter Space), (Number Of Branch Current Sensors) 15 |

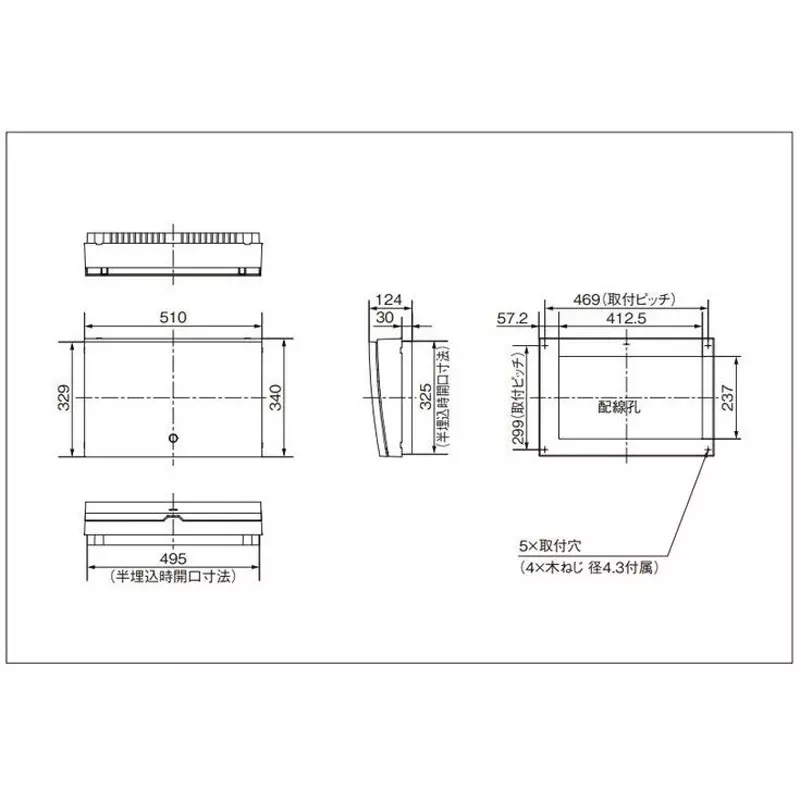

Width (mm) |
510 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Standard Type |
Monotaro ID |
51378838 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 14 |
Circuit space |
1 |
Main capacity (A) |
60 |
No. of Terminals |
12 (6 for 11 circuits) |
Depth (mm) |
124 |
Contents |
(2P1E 20 Amp)10, (2P2E 20 Amp 100 V)4 |
Height (mm) |
340 |
Semi-embedded dimensions (length x width x depth) (mm) |
325x495x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
