| Type | Standard Type |
| Model No | BHR810402R |
| Color | White |

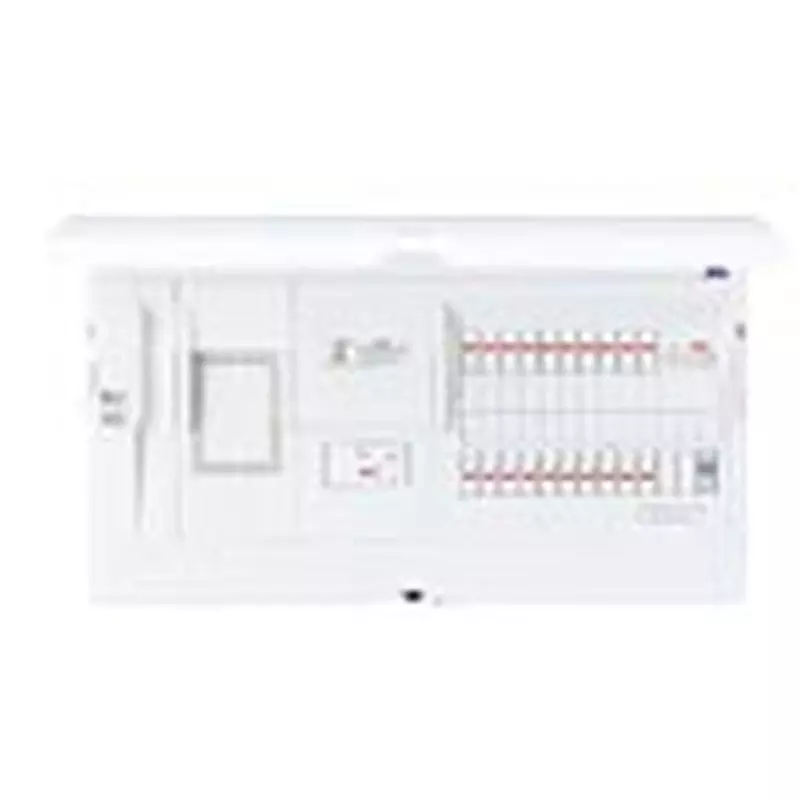

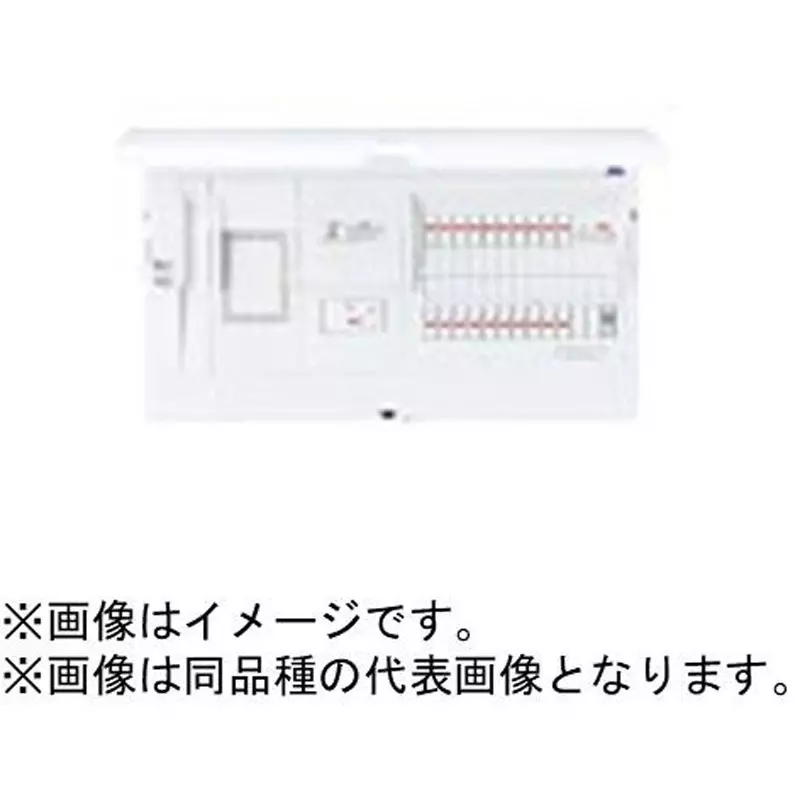

| Type of Product | Residential Distribution Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Standard Type |
Model No |
BHR810402R |
Color |
White |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
Ready Type, No Limiter Space, (Number Of Branch Current Sensors) 43 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Kaminari Anshin Van/Equipped With Lightning Arrester |
Monotaro ID |
51392025 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 40 |
Circuit space |
2 |
Main capacity (A) |
100 |
No. of Terminals |
12 |
Contents |
(2P1E 20 Amp)32, (2P2E 20 Amp 100 V)8 |

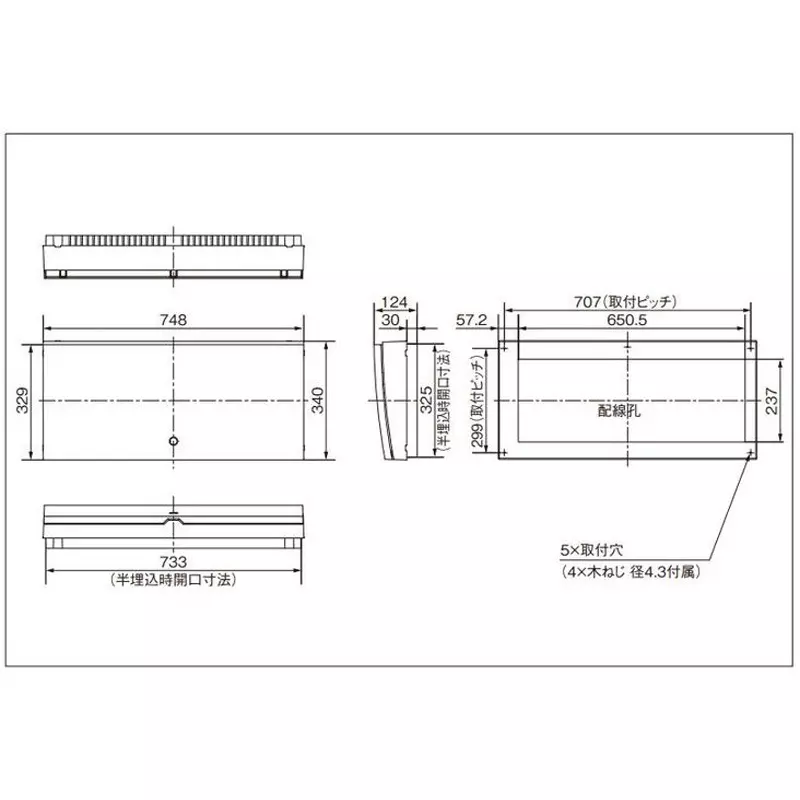

Semi-embedded dimensions (length x width x depth) (mm) |
325x631x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Dimensions WxDxH (mm) |
340x646x124 mm |
munsell value |
10Y9/0.5 |
