| Type | Advanced |
| Model No | BQE84183F |
| Color | White (Munsell symbol 10Y9/0.5) |

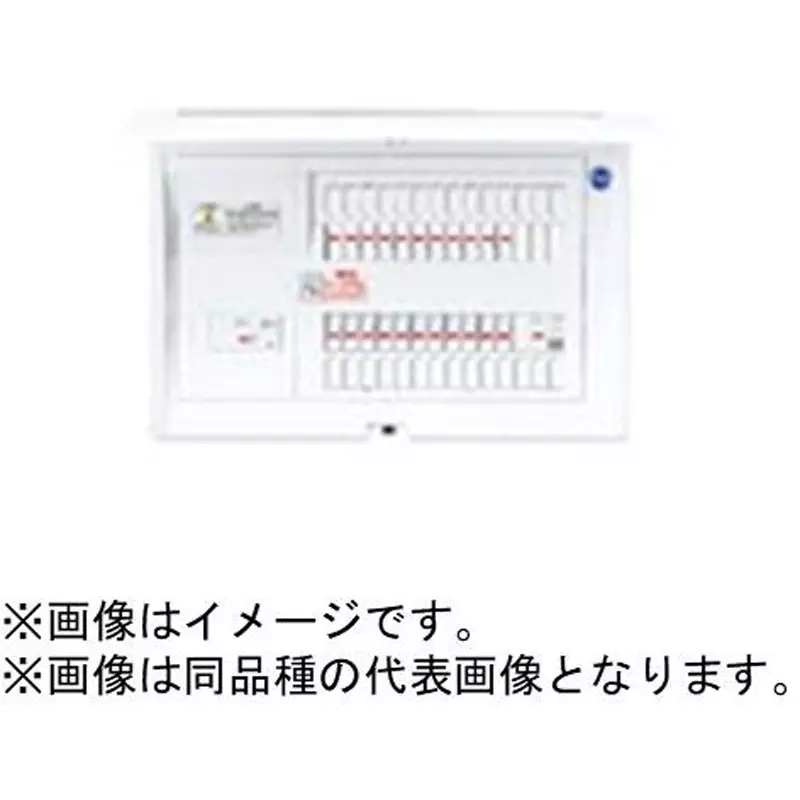

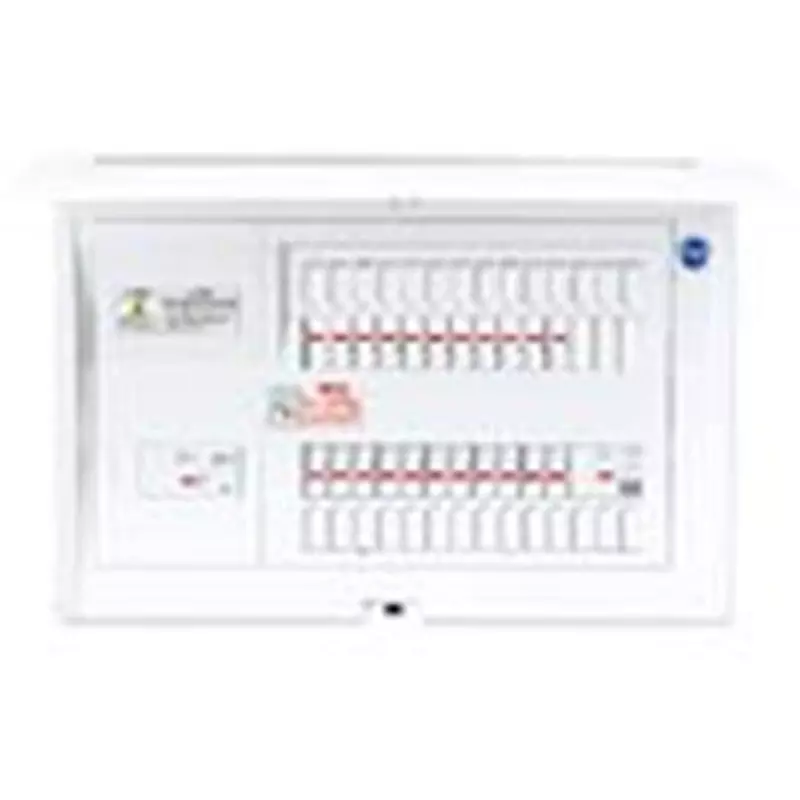

| Type of Product | Cosmo Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Advanced |
Model No |
BQE84183F |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Suitable For |
(Standards Conformity Certification) Product That Complies With Japan Wiring System Industry Association Residential Distribution Board Standards |
Specifications |
No retraction method (limiter space) |
Width (mm) |
450 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Compatible with solar power generation systems |
Monotaro ID |
51380168 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 18 |
Circuit space |
3 |
Main capacity (A) |
40 |
No. of Terminals |
12 (6 for 12 circuits or less) |
Depth (mm) |
111 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)14, (2P2E 20 Amp 100 V)4 |
Height (mm) |
325 |

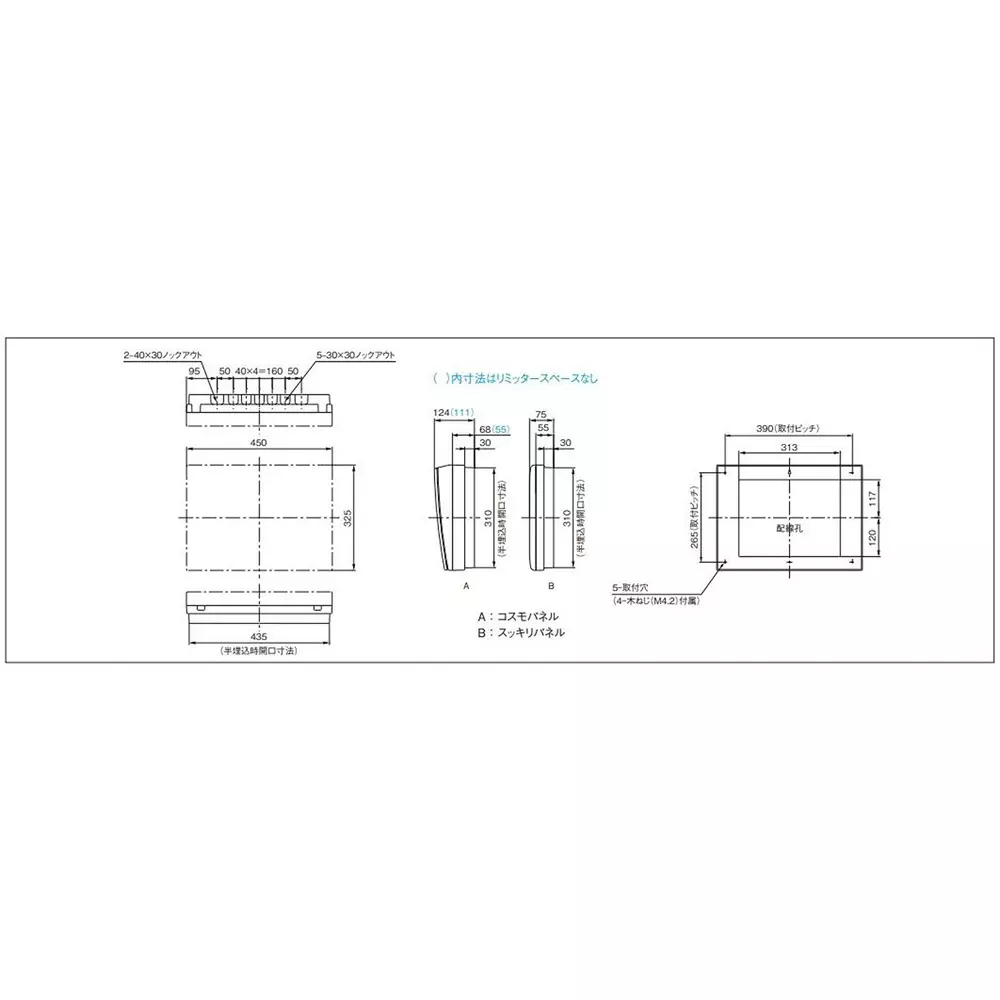

Semi-embedded dimensions (length x width x depth) (mm) |
310x435x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
