| Type | Advanced |
| Model No | BQE86141EK |
| Color | White (Munsell symbol 10Y9/0.5) |
| Type of Product | Cosmo Panel |
Type |
Advanced |
Model No |
BQE86141EK |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Suitable For |
(Standards Conformance Certification) High-Performance Standard Compliant Product For Residential Distribution Boards Of The Japan Wiring System Industry Association (General Incorporated Association) |
Specifications |
No retraction method (limiter space) |
Width (mm) |
484 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Kaminari Anshin Ban (With Lighting Function)/Equipped With Lightning Arrester And Security Light |
Monotaro ID |
51382408 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation) 14 |
Circuit space |
1 |
Main capacity (A) |
60 |
No. of Terminals |
12 |
Depth (mm) |
111 |
Contents |
(2P1E 20 Amp)10, (2P2E 20 Amp 100 V)4 |
Height (mm) |
325 |

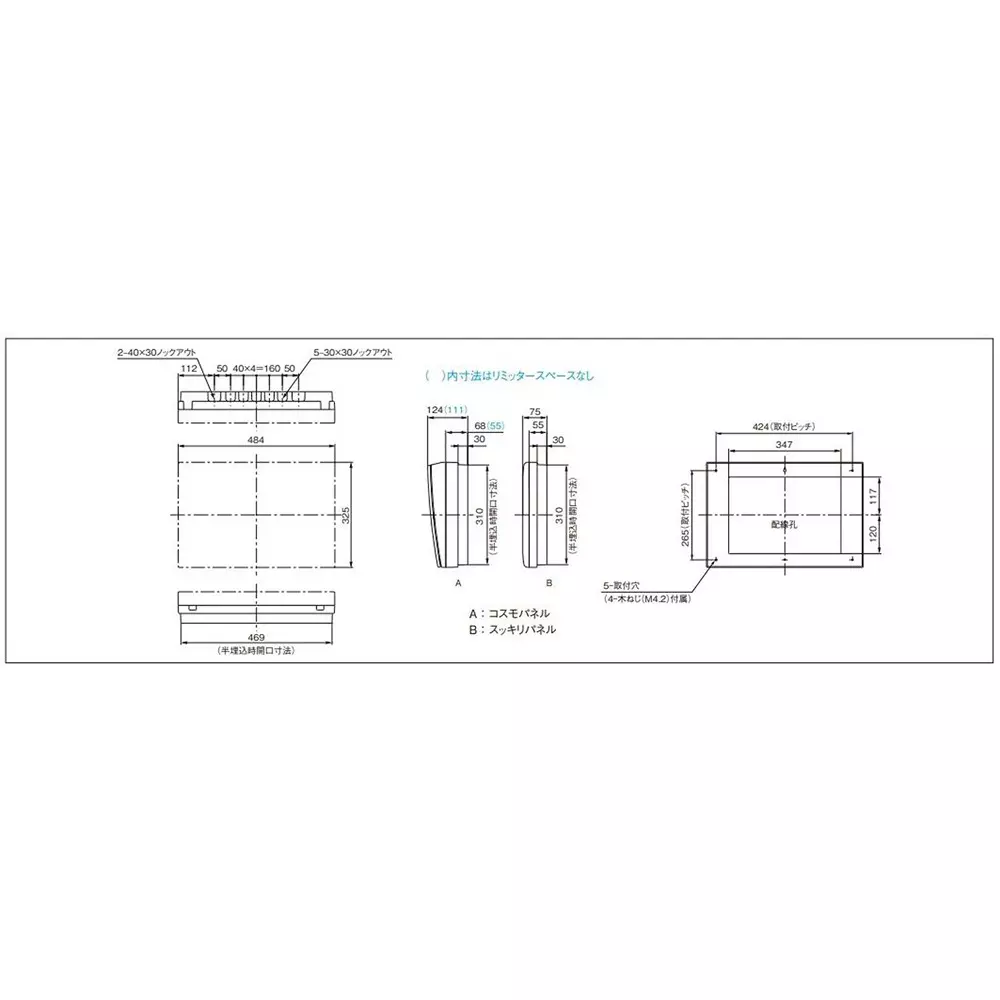

Semi-embedded dimensions (length x width x depth) (mm) |
310x469x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
